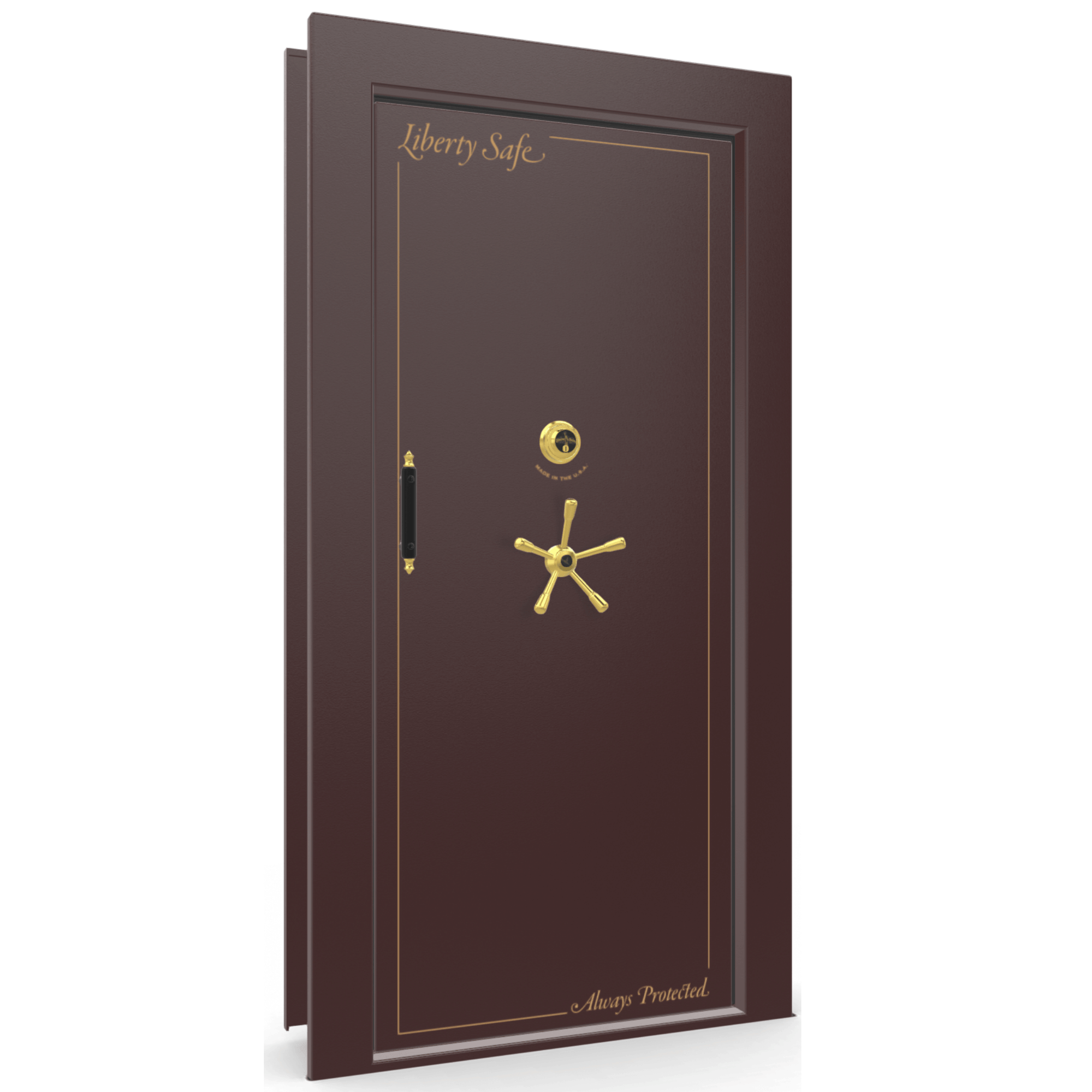

Vault Door Series | In-Swing | Right Hinge | Burgundy Marble | Mechanical Lock

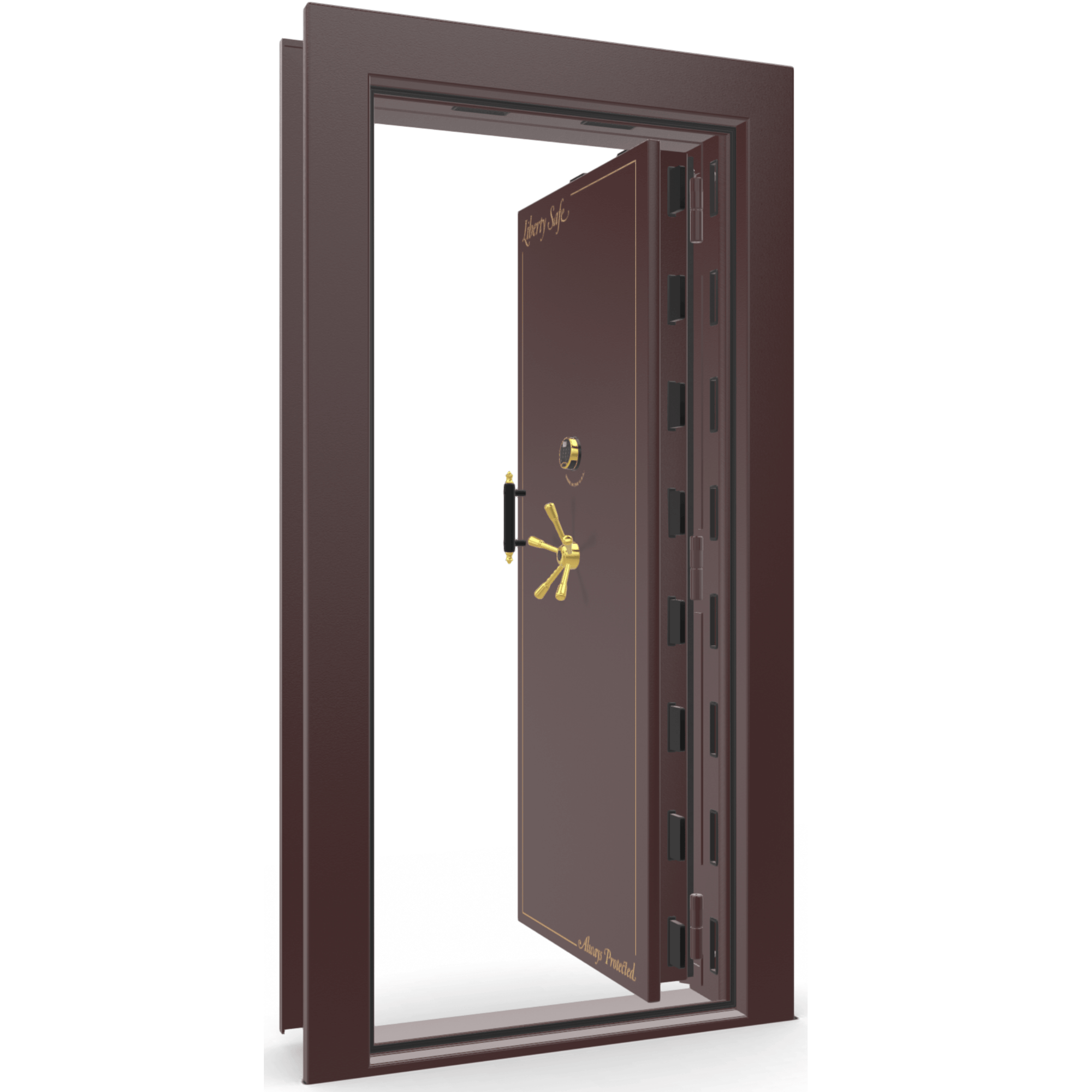

Vault Door Series | In-Swing | Right Hinge | Burgundy Marble | Electronic Lock

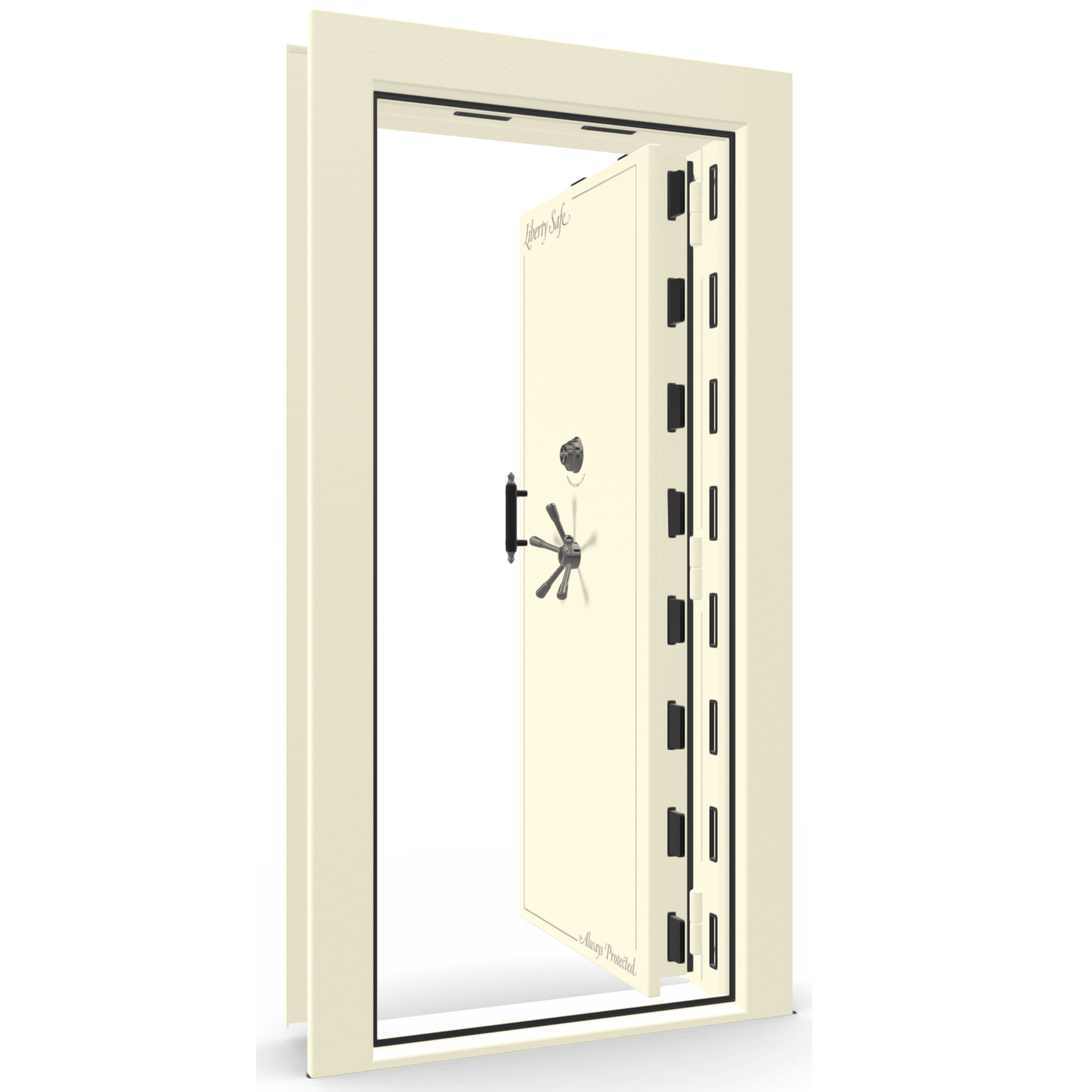

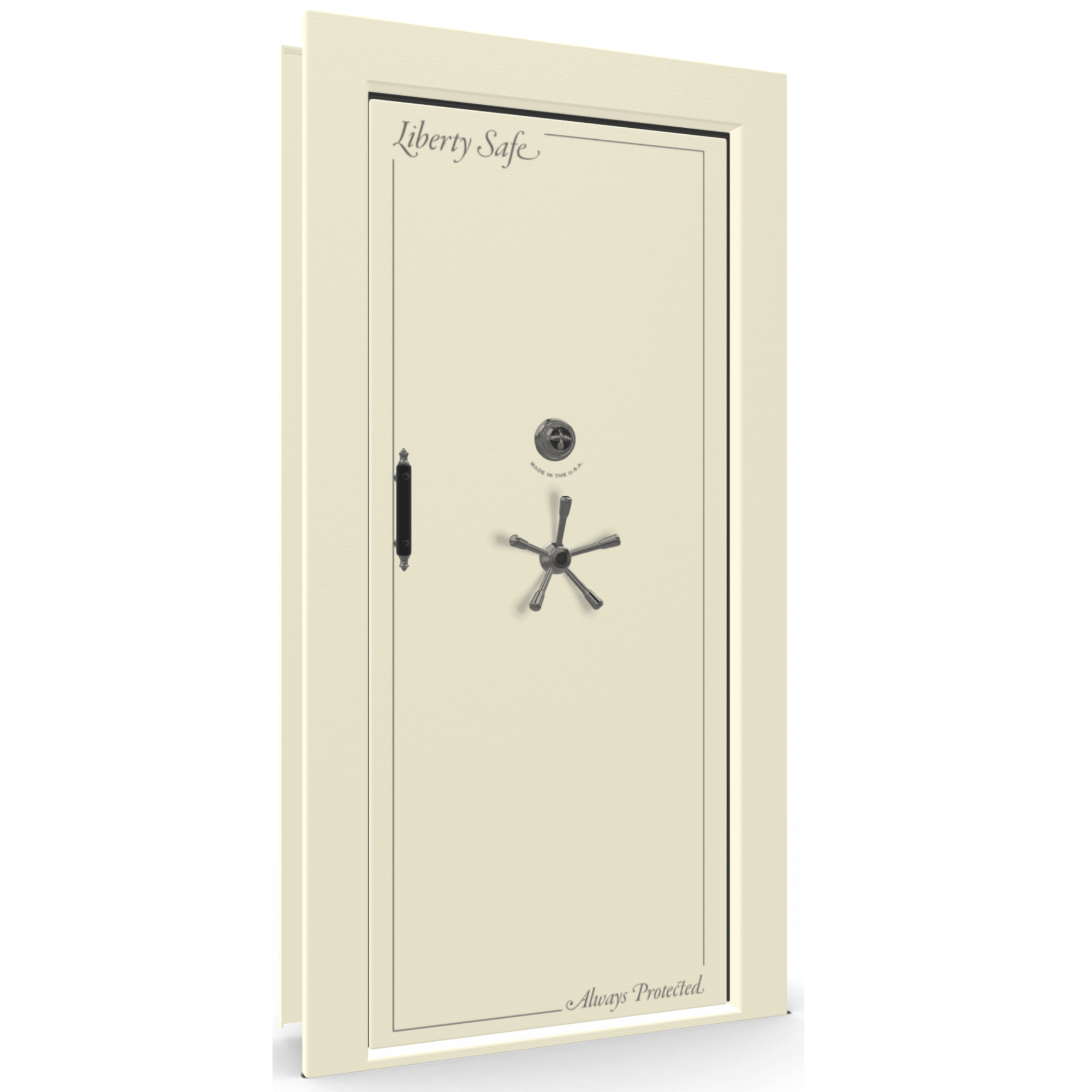

Vault Door Series | In-Swing | Right Hinge | White Marble | Mechanical Lock

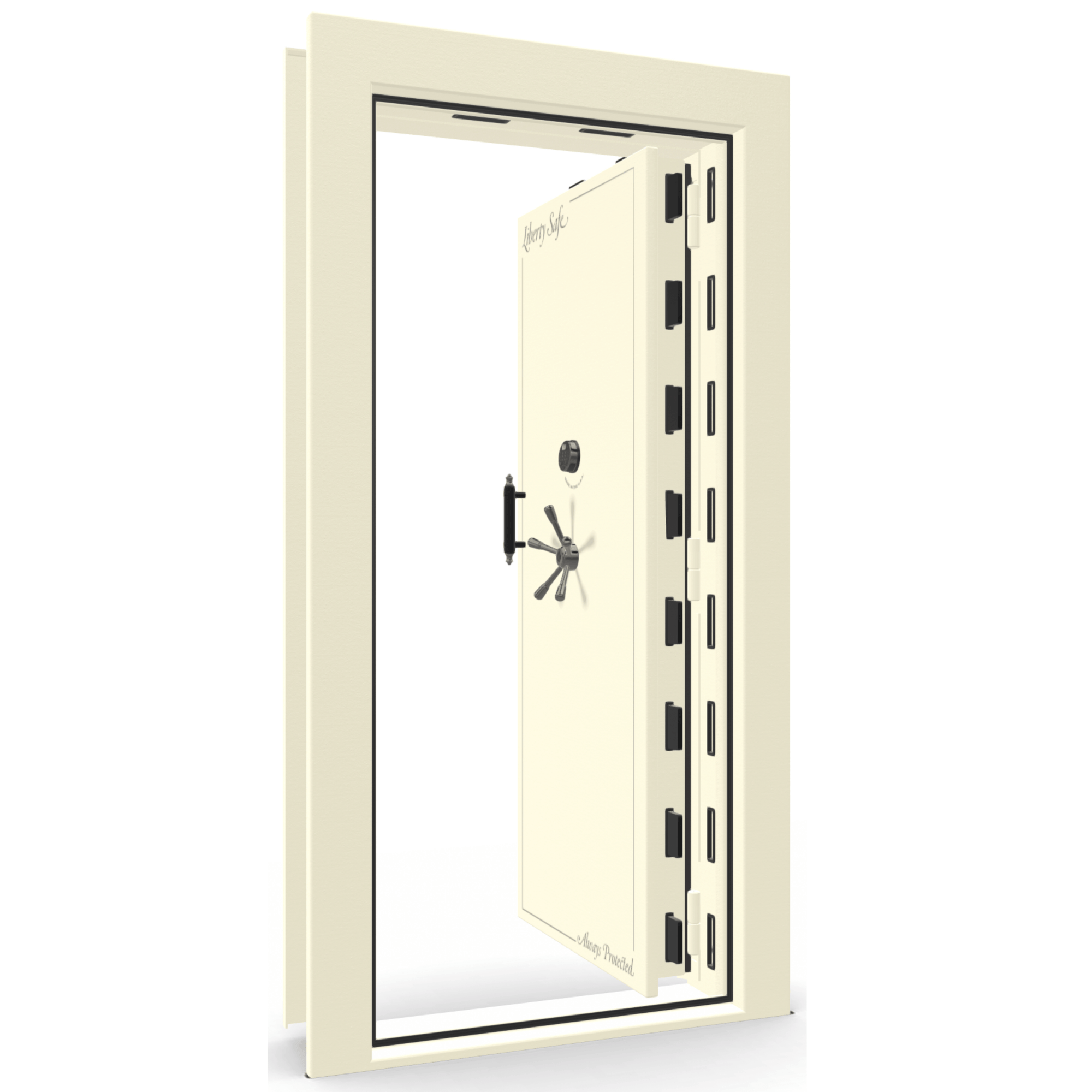

Vault Door Series | In-Swing | Right Hinge | White Marble | Electronic Lock

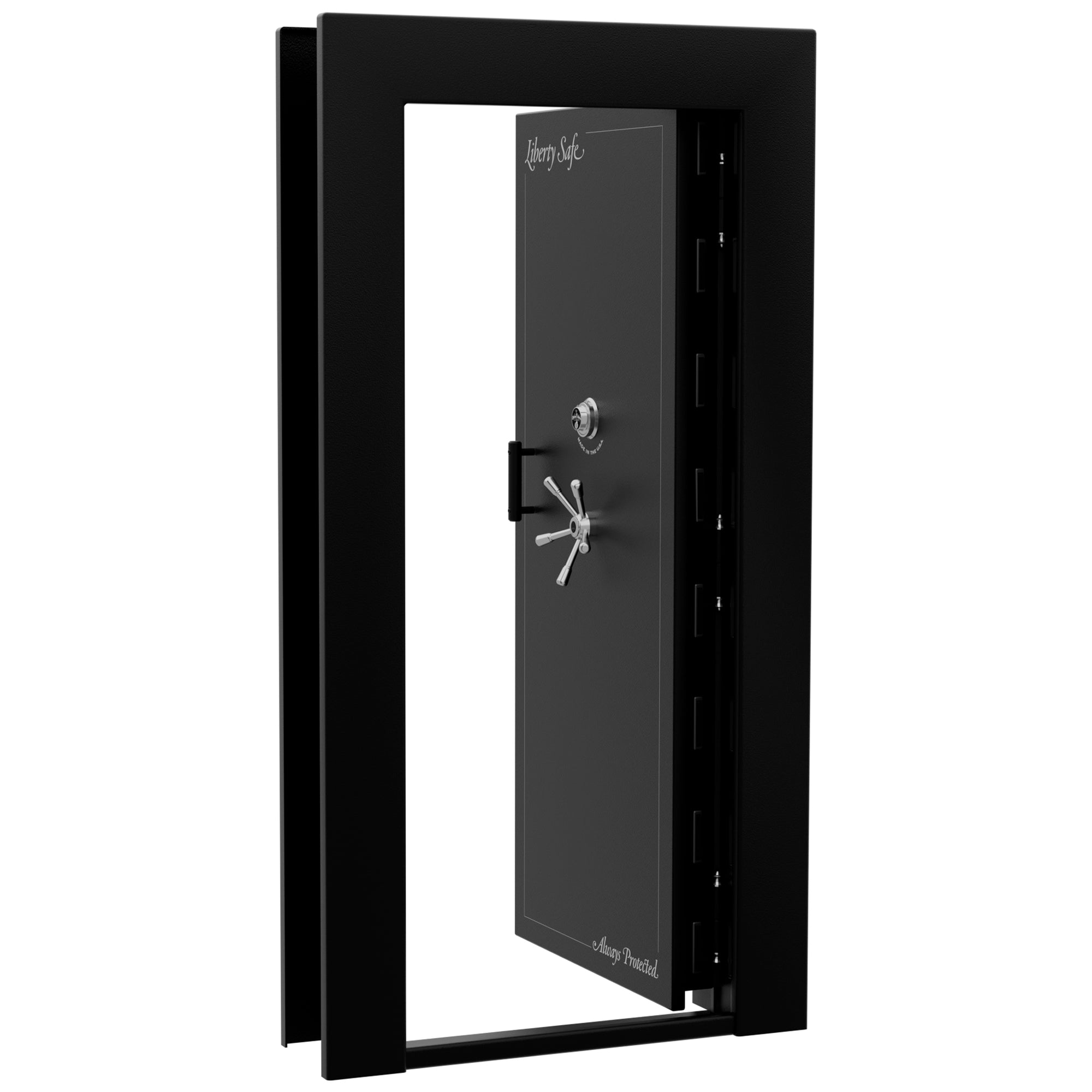

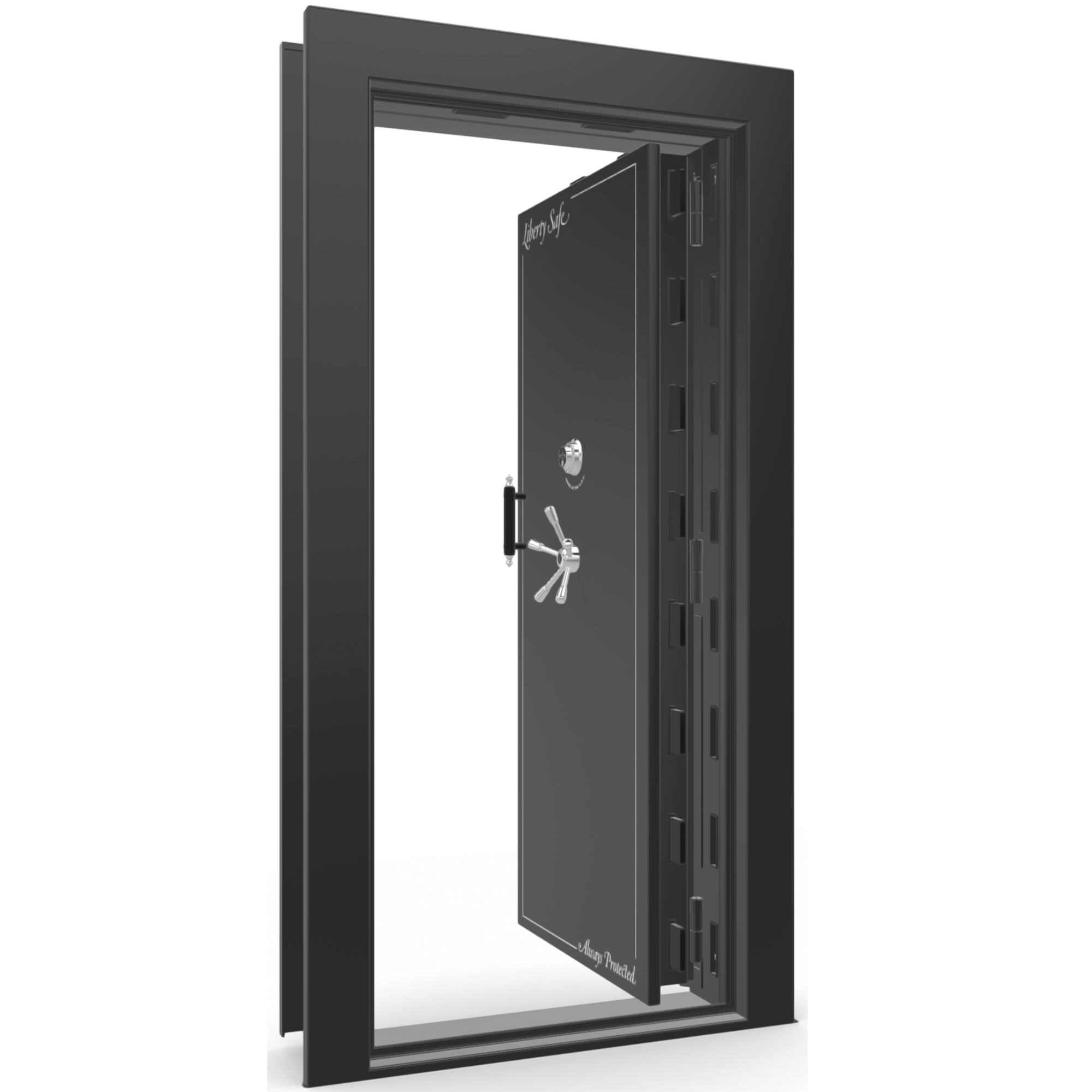

Vault Door Series | In-Swing | Right Hinge | Black Gloss | Mechanical Lock

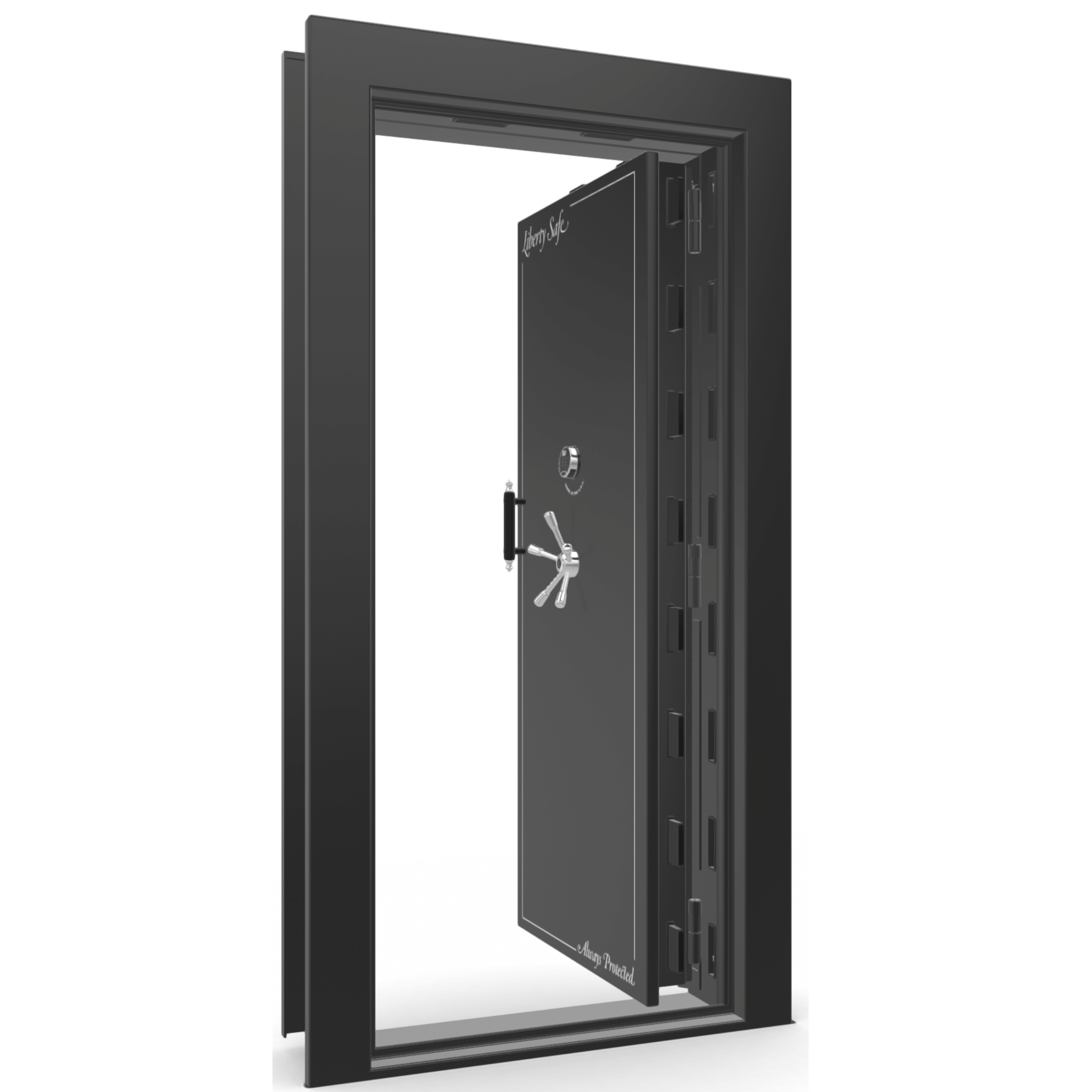

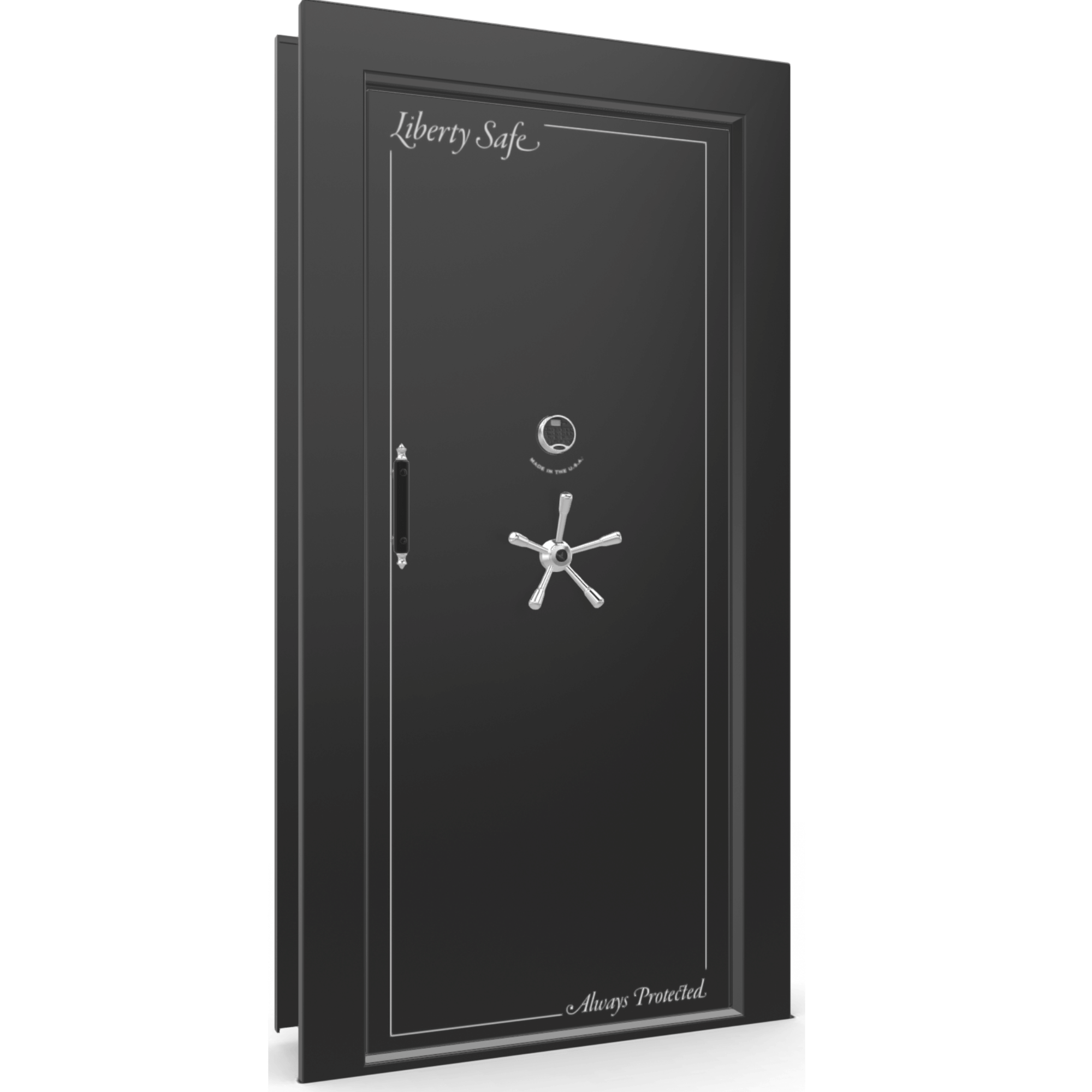

Vault Door Series | In-Swing | Right Hinge | Black Gloss | Electronic Lock

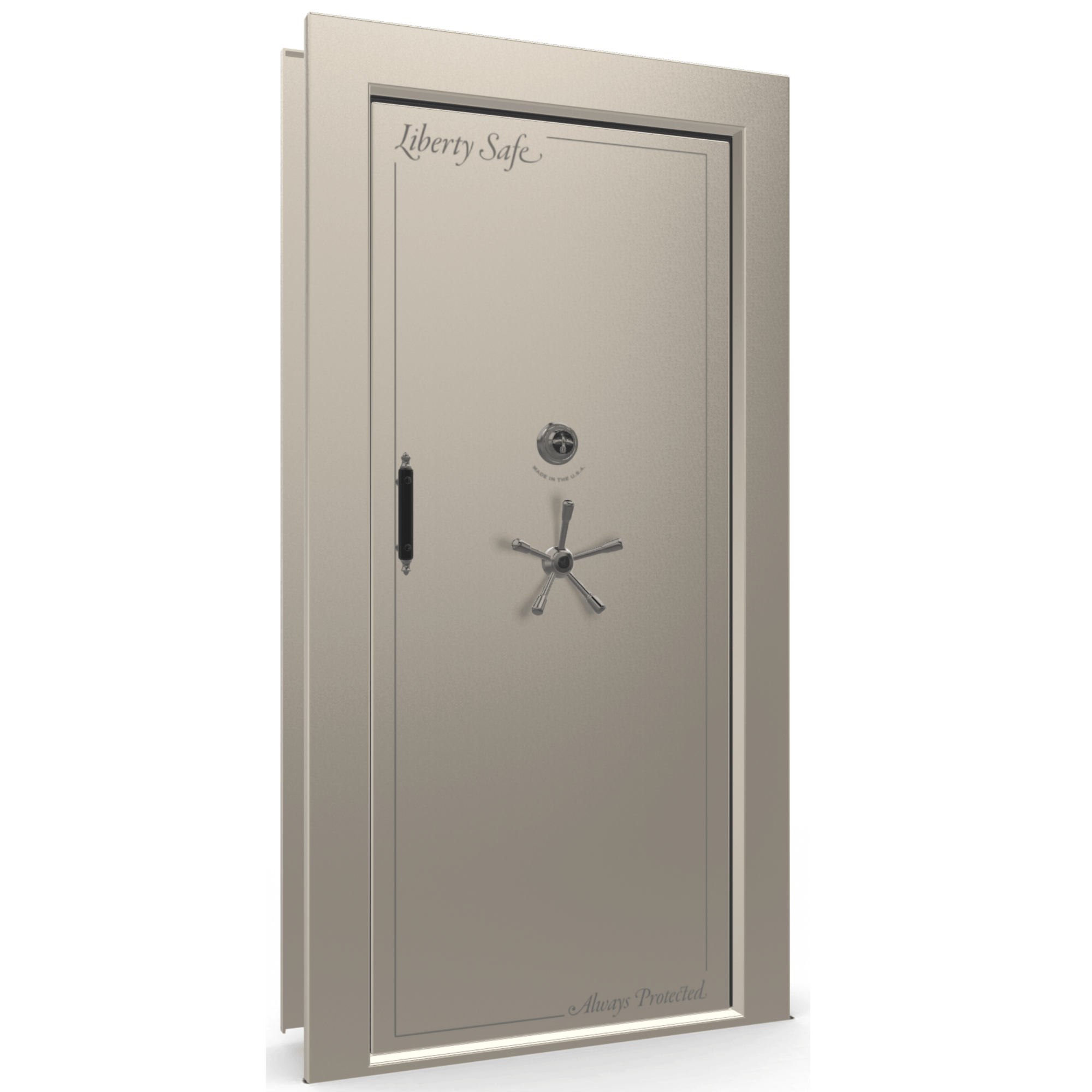

Vault Door Series | In-Swing | Right Hinge | Champagne Gloss | Mechanical Lock

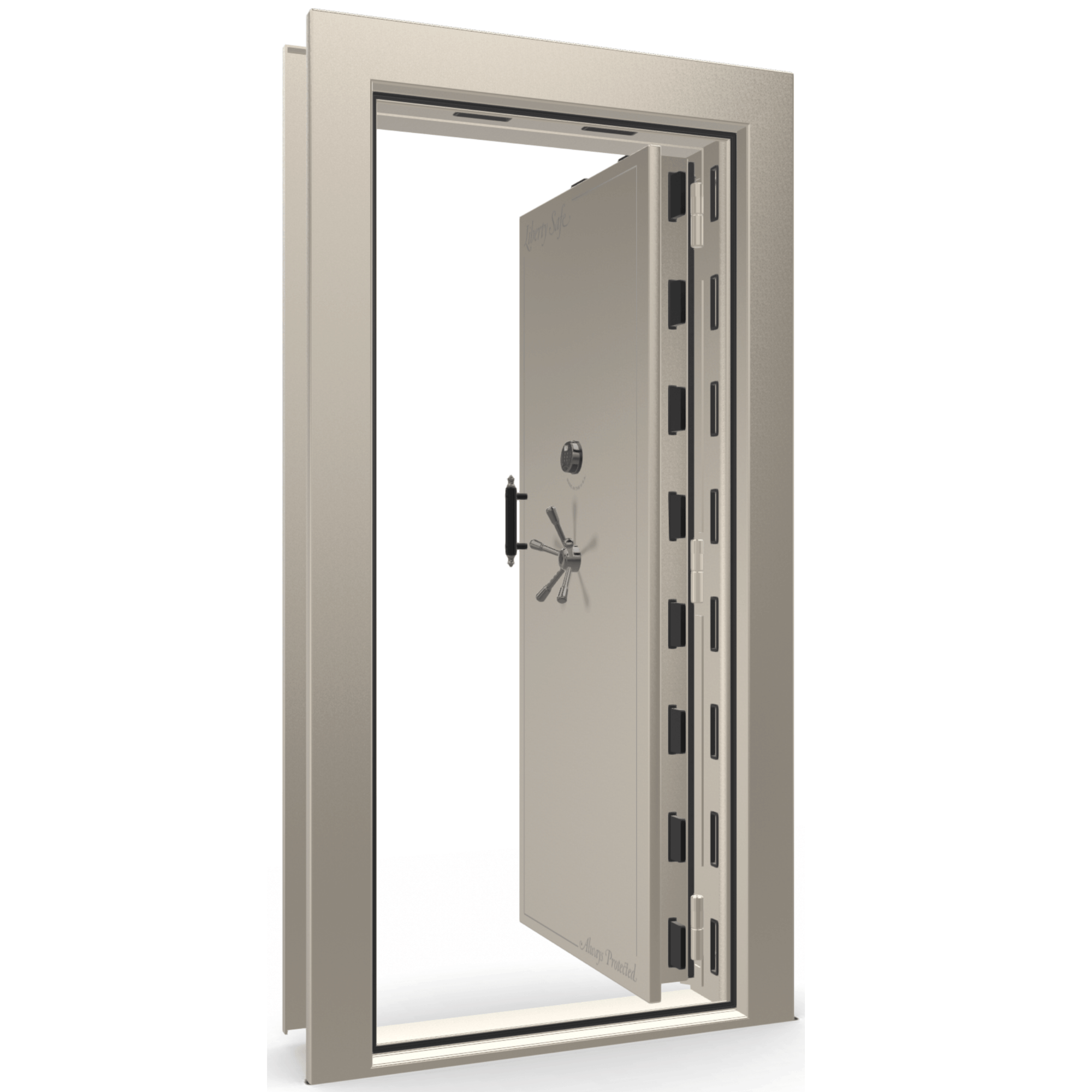

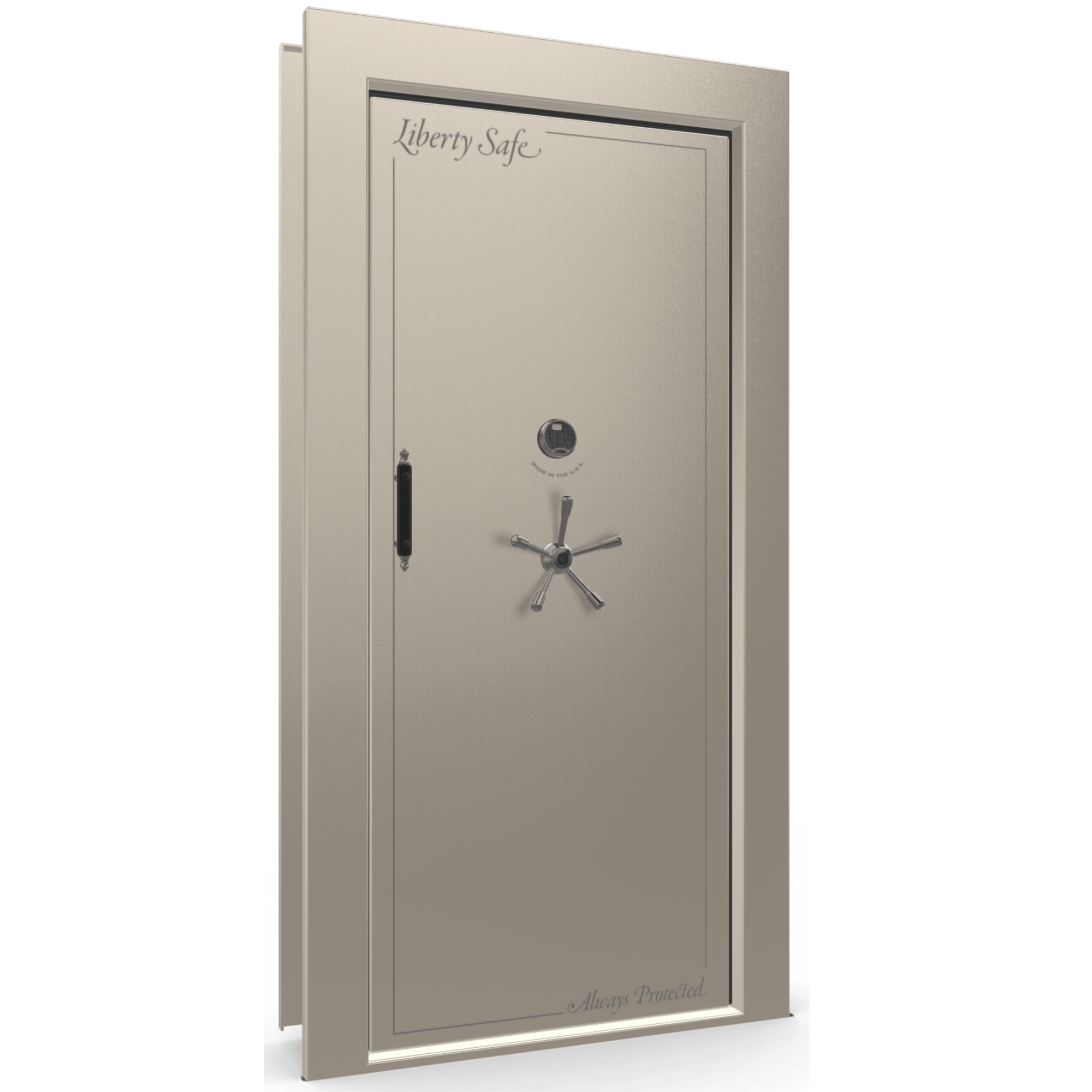

Vault Door Series | In-Swing | Right Hinge | Champagne Gloss | Electronic Lock

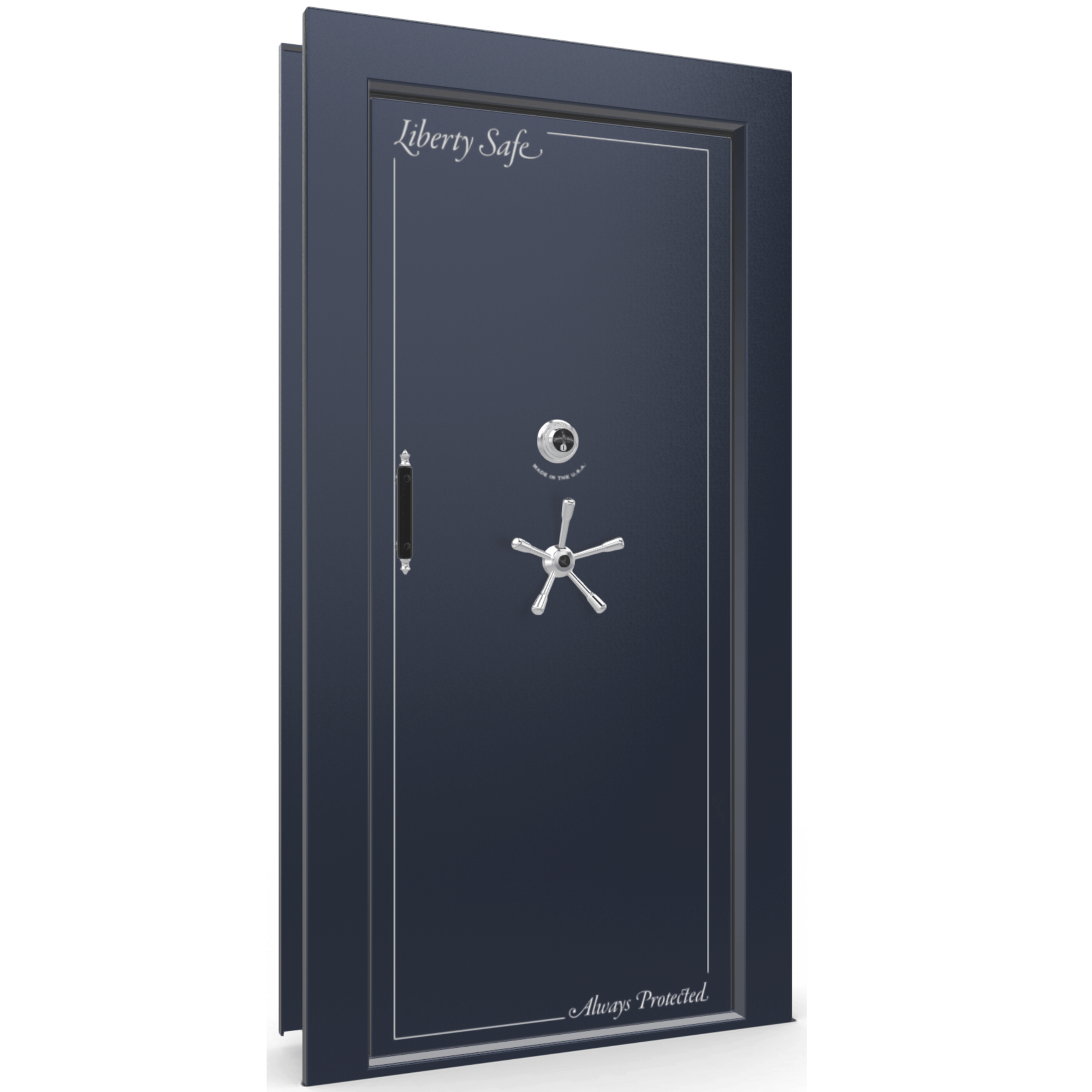

Vault Door Series | In-Swing | Right Hinge | Blue Gloss | Mechanical Lock

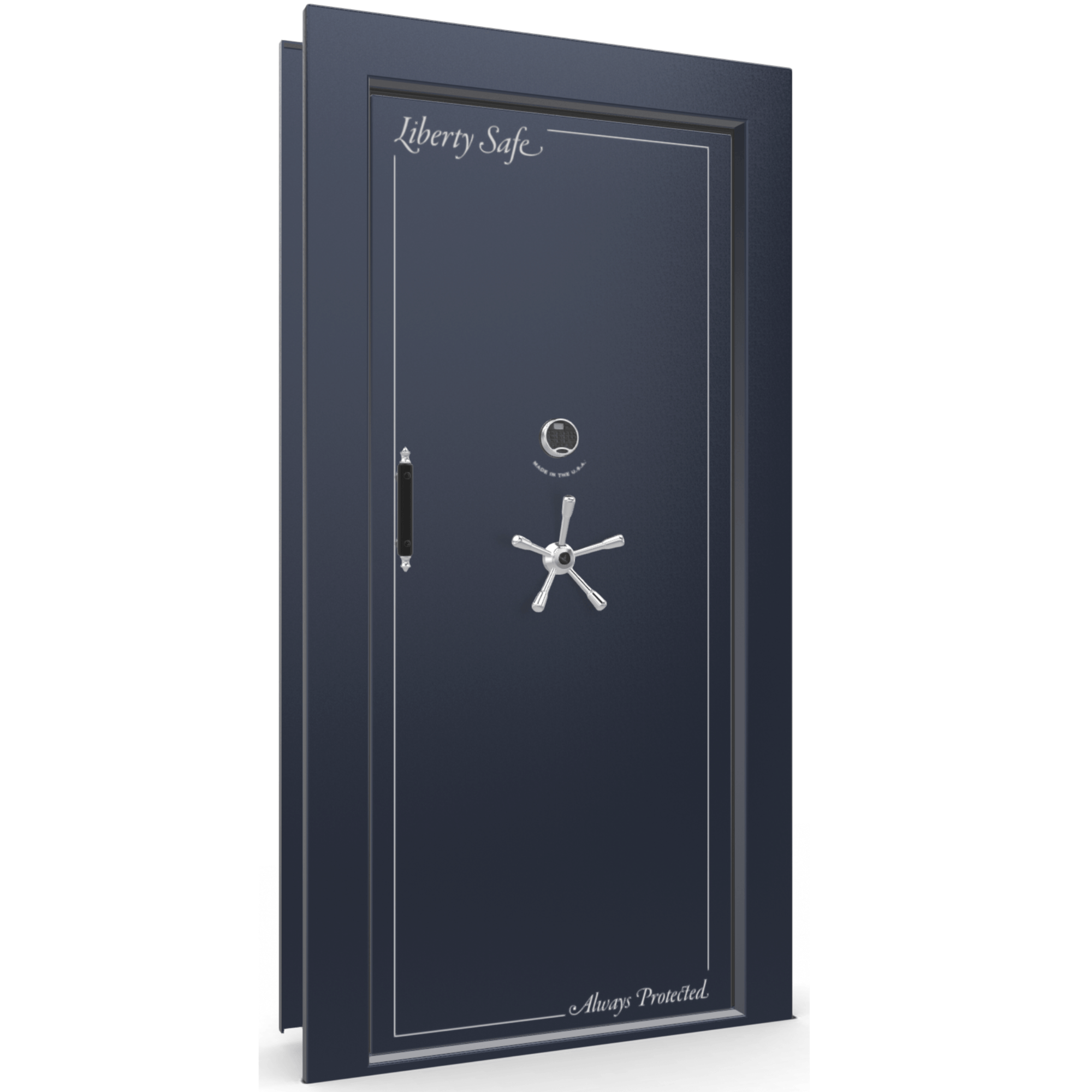

Vault Door Series | In-Swing | Right Hinge | Blue Gloss | Electronic Lock

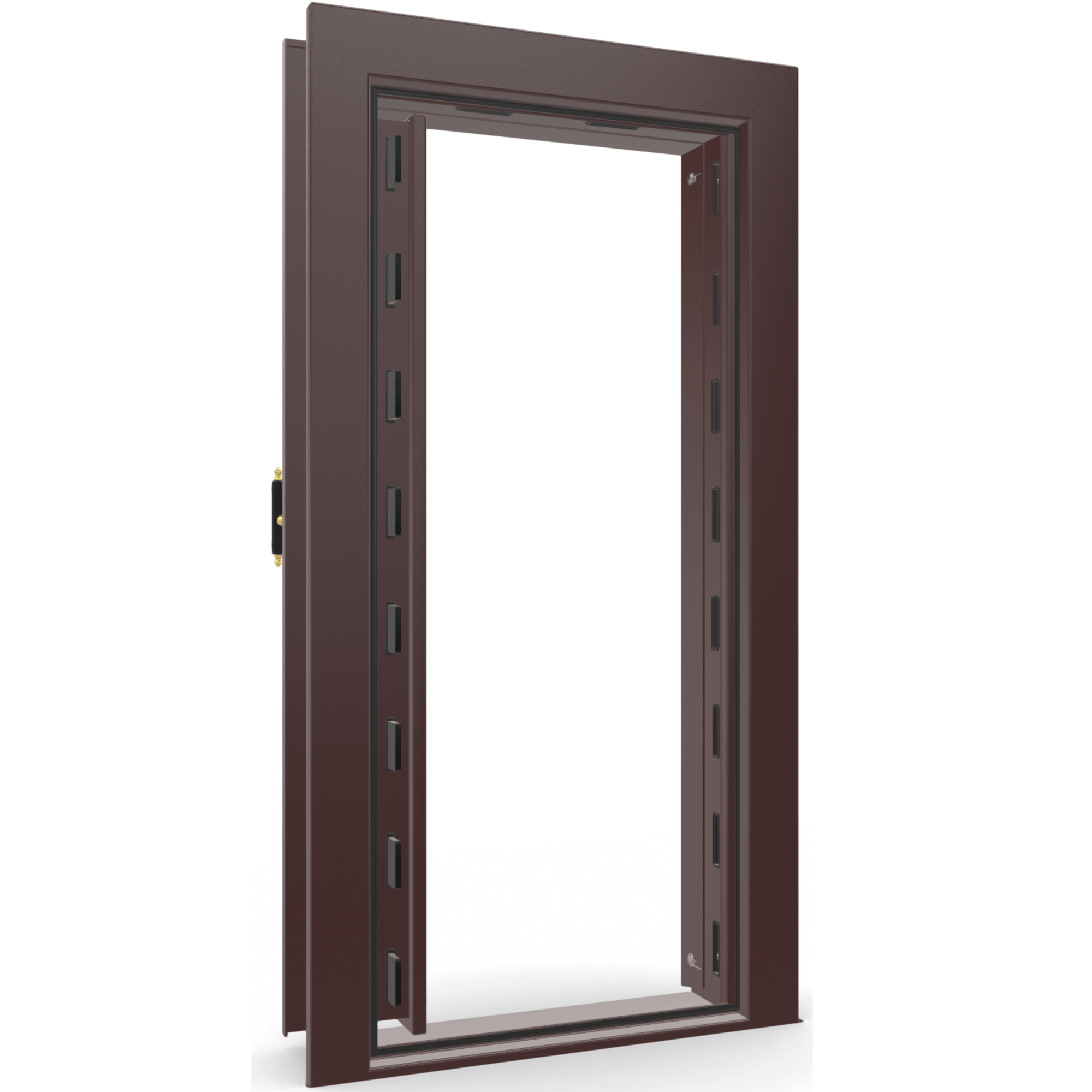

Vault Door Series | In-Swing | Left Hinge | Burgundy Marble | Mechanical Lock

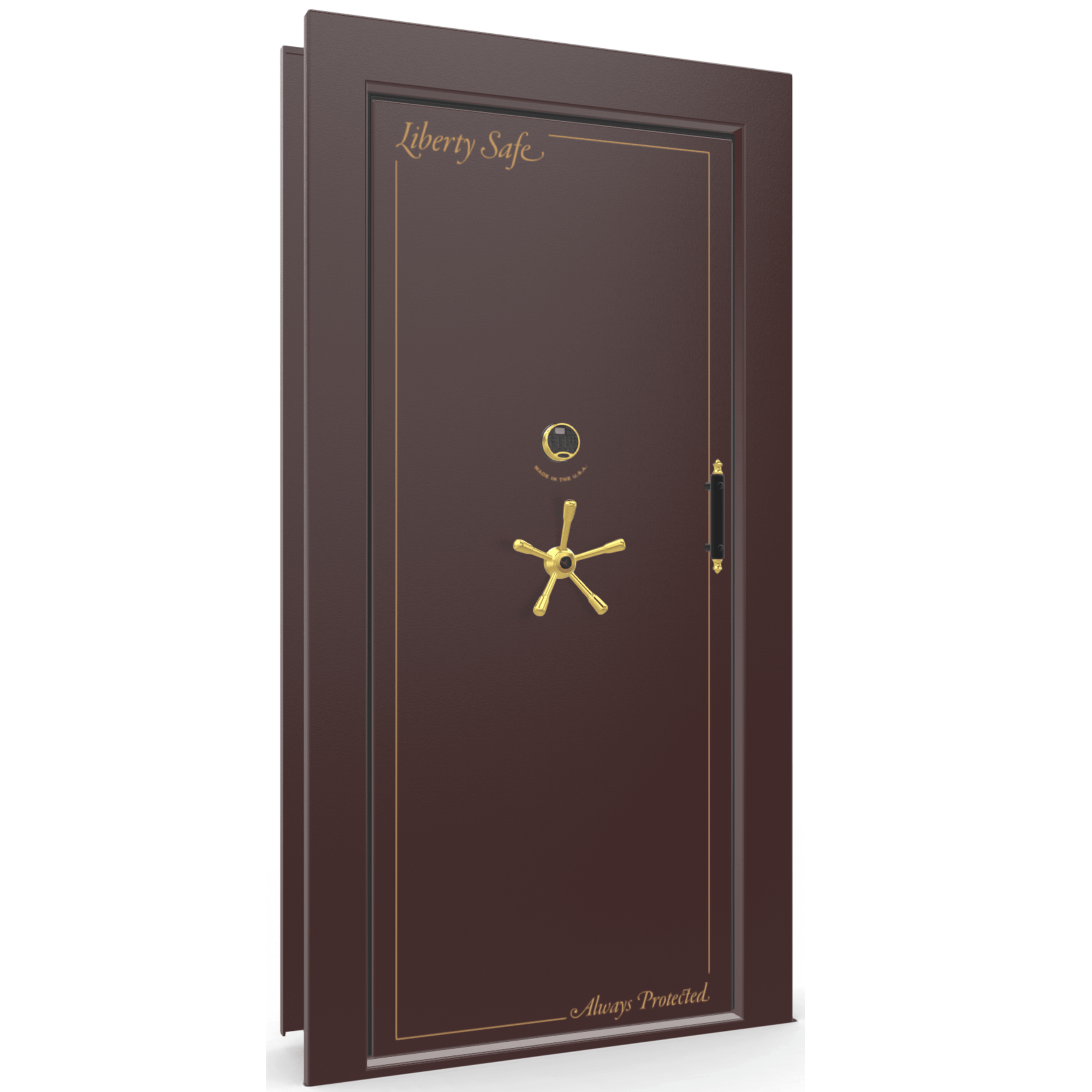

Vault Door Series | In-Swing | Left Hinge | Burgundy Marble | Electronic Lock

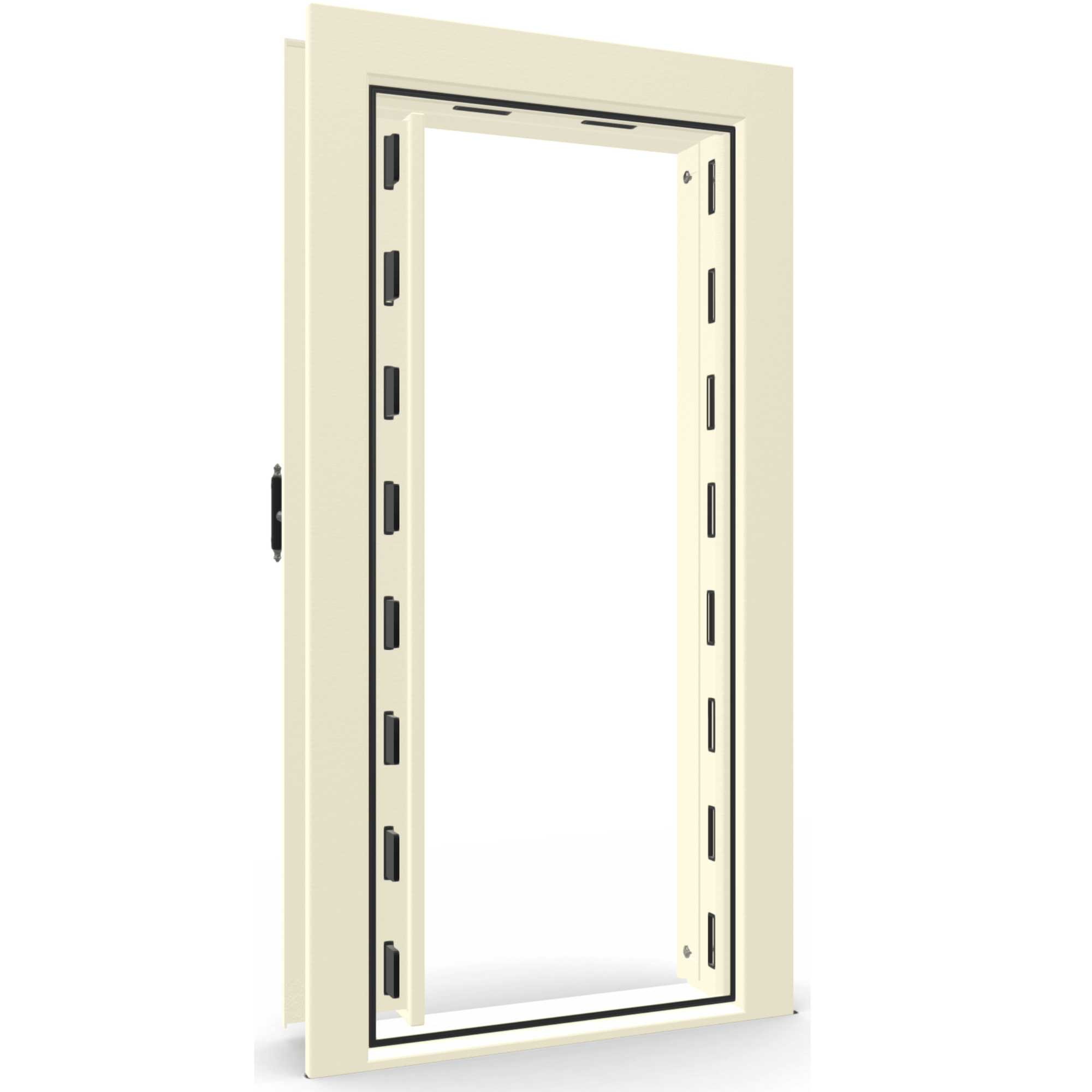

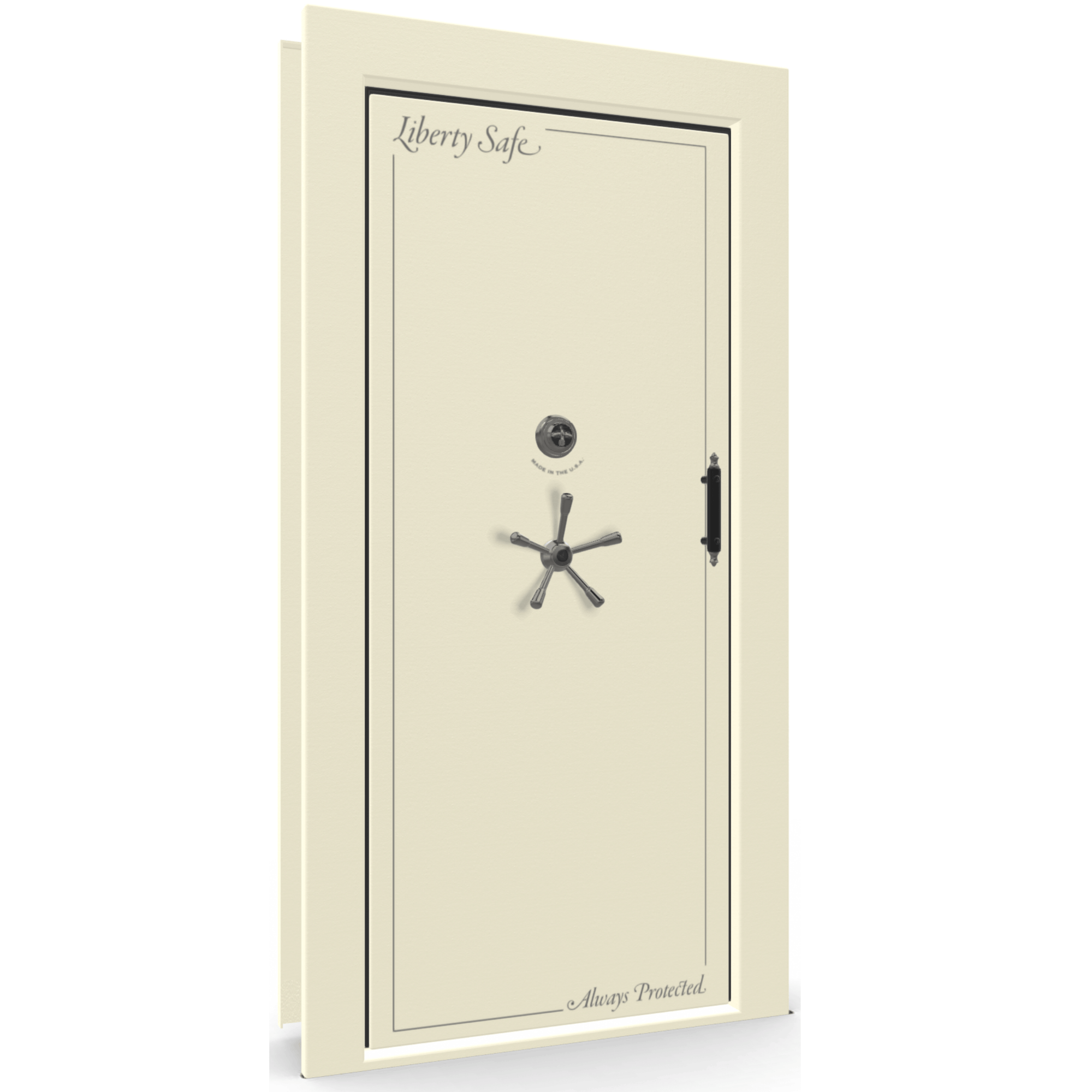

Vault Door Series | In-Swing | Left Hinge | White Marble | Mechanical Lock

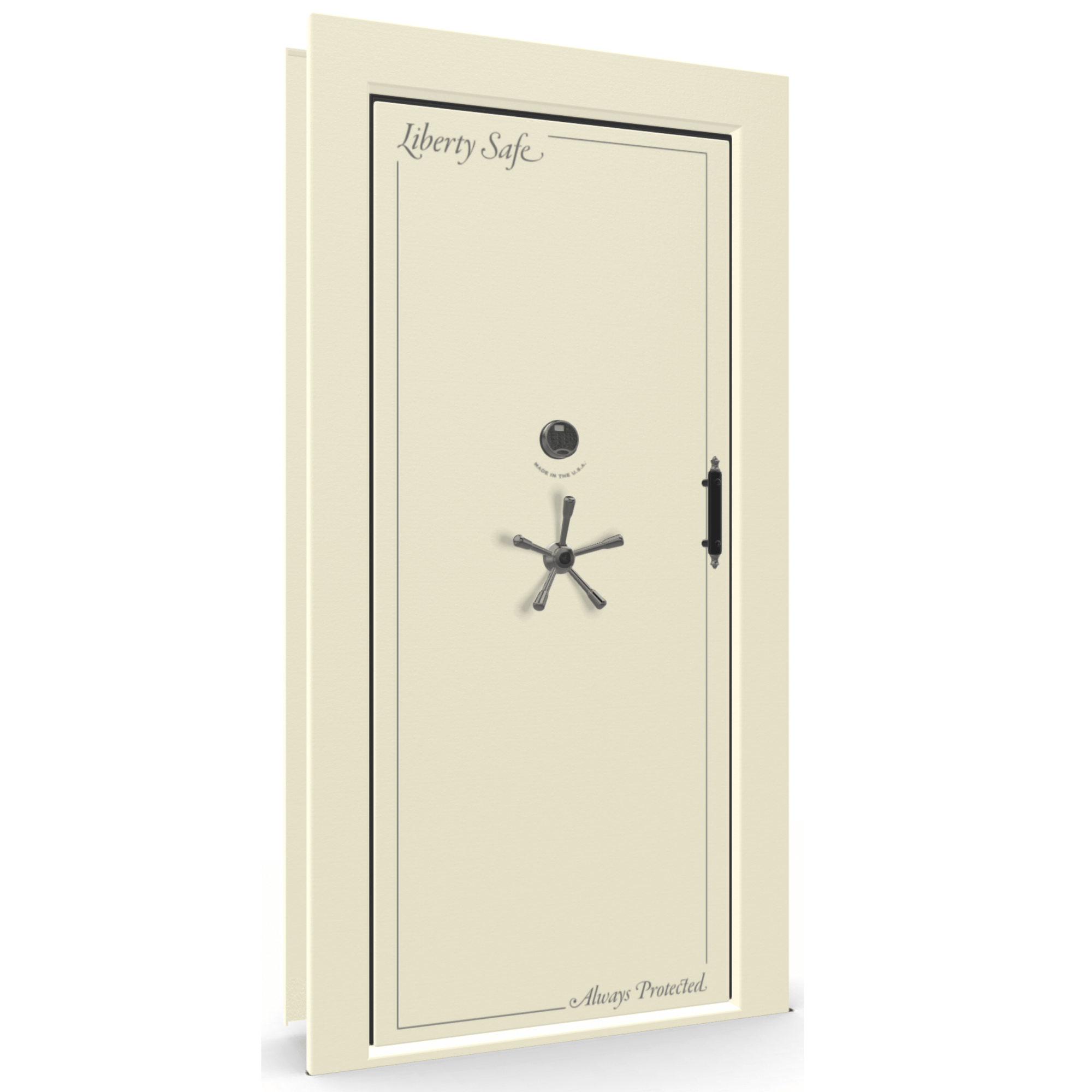

Vault Door Series | In-Swing | Left Hinge | White Marble | Electronic Lock

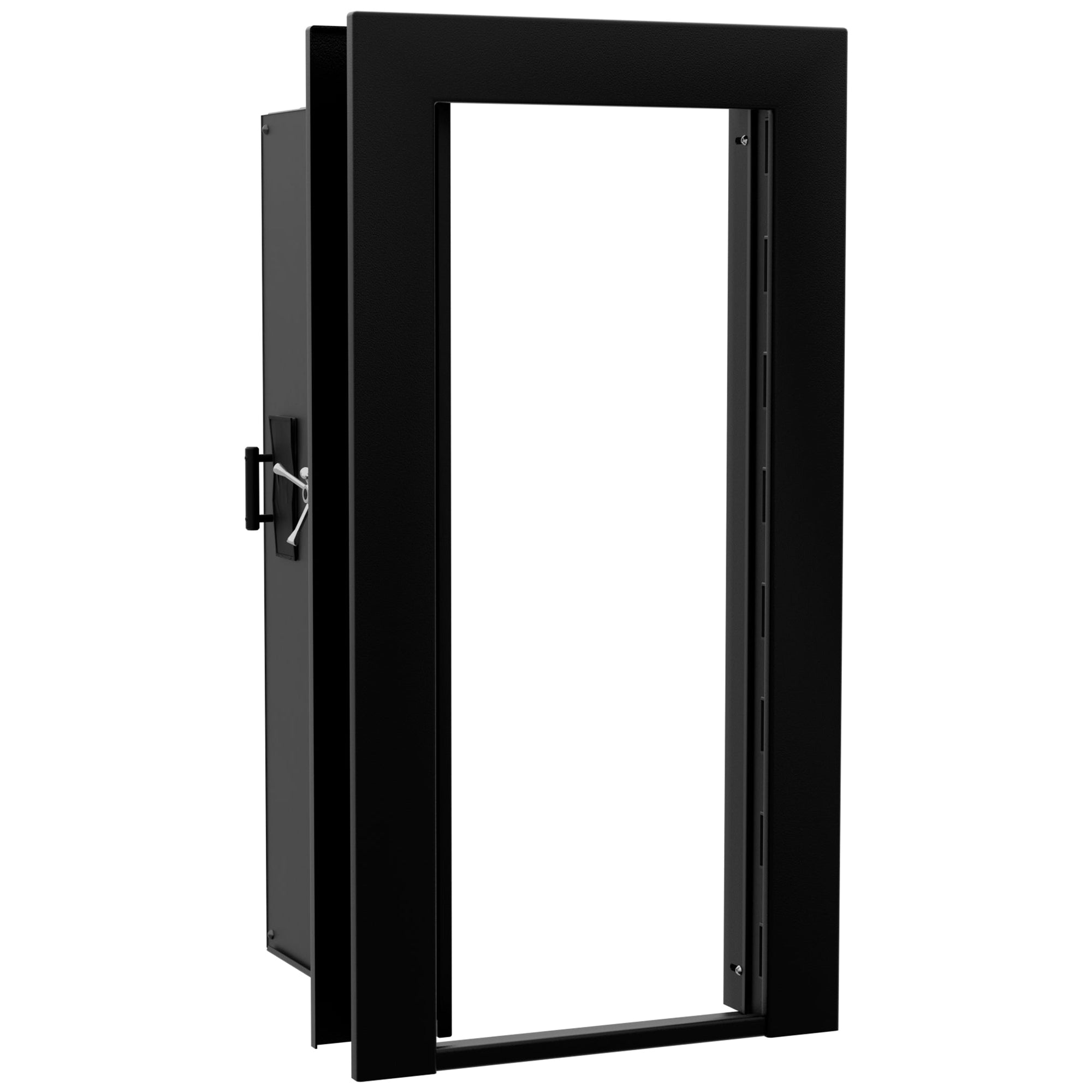

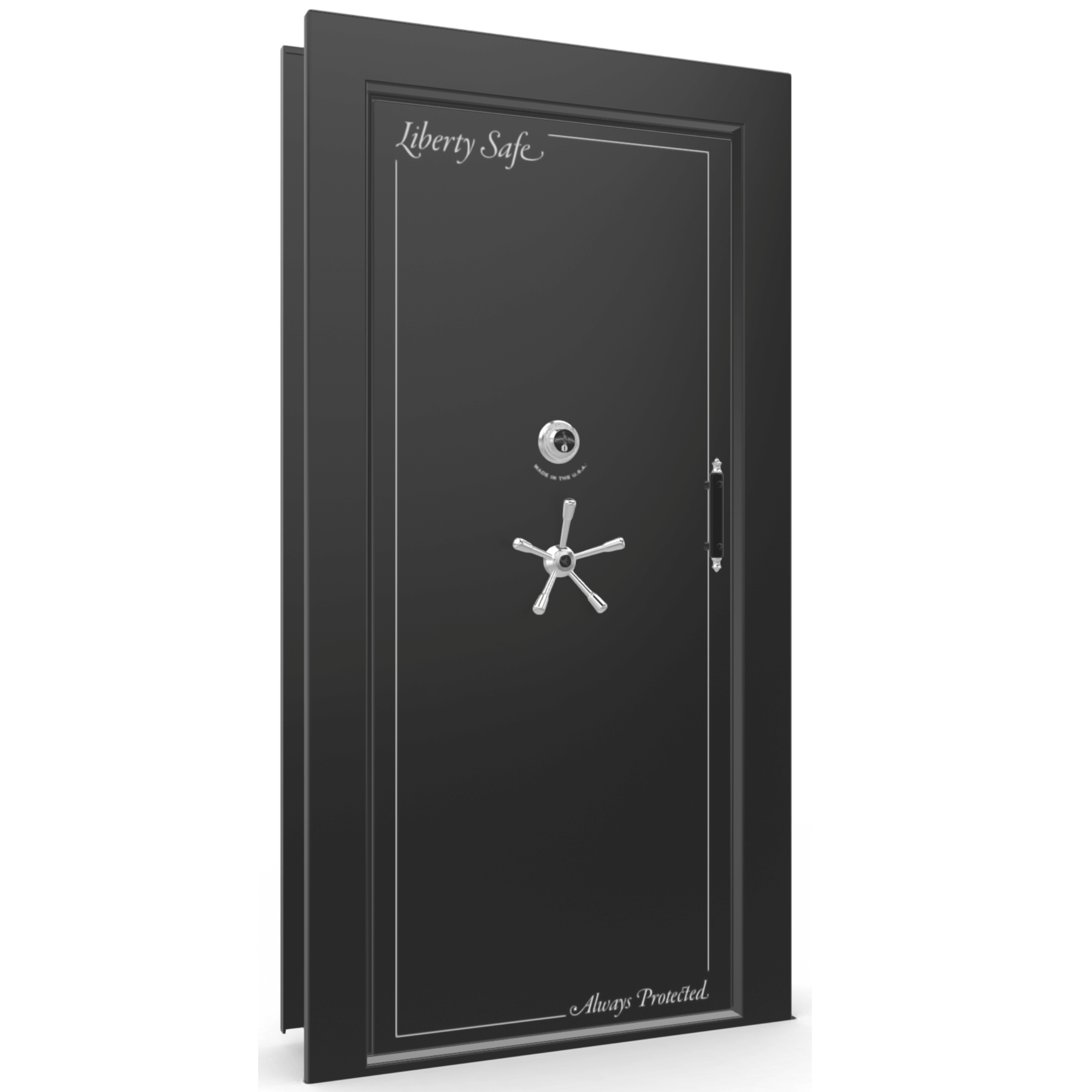

Vault Door Series | In-Swing | Left Hinge | Black Gloss | Mechanical Lock

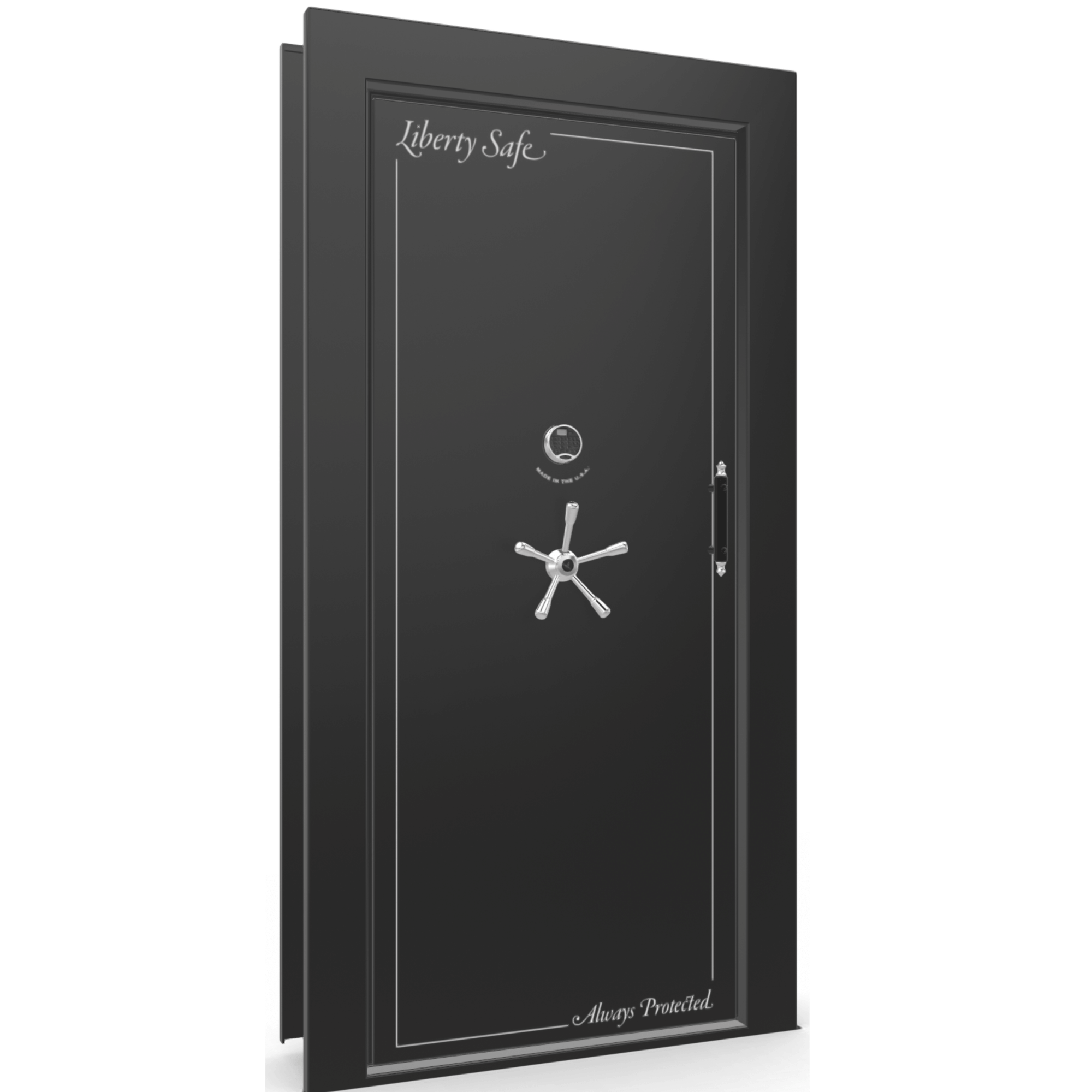

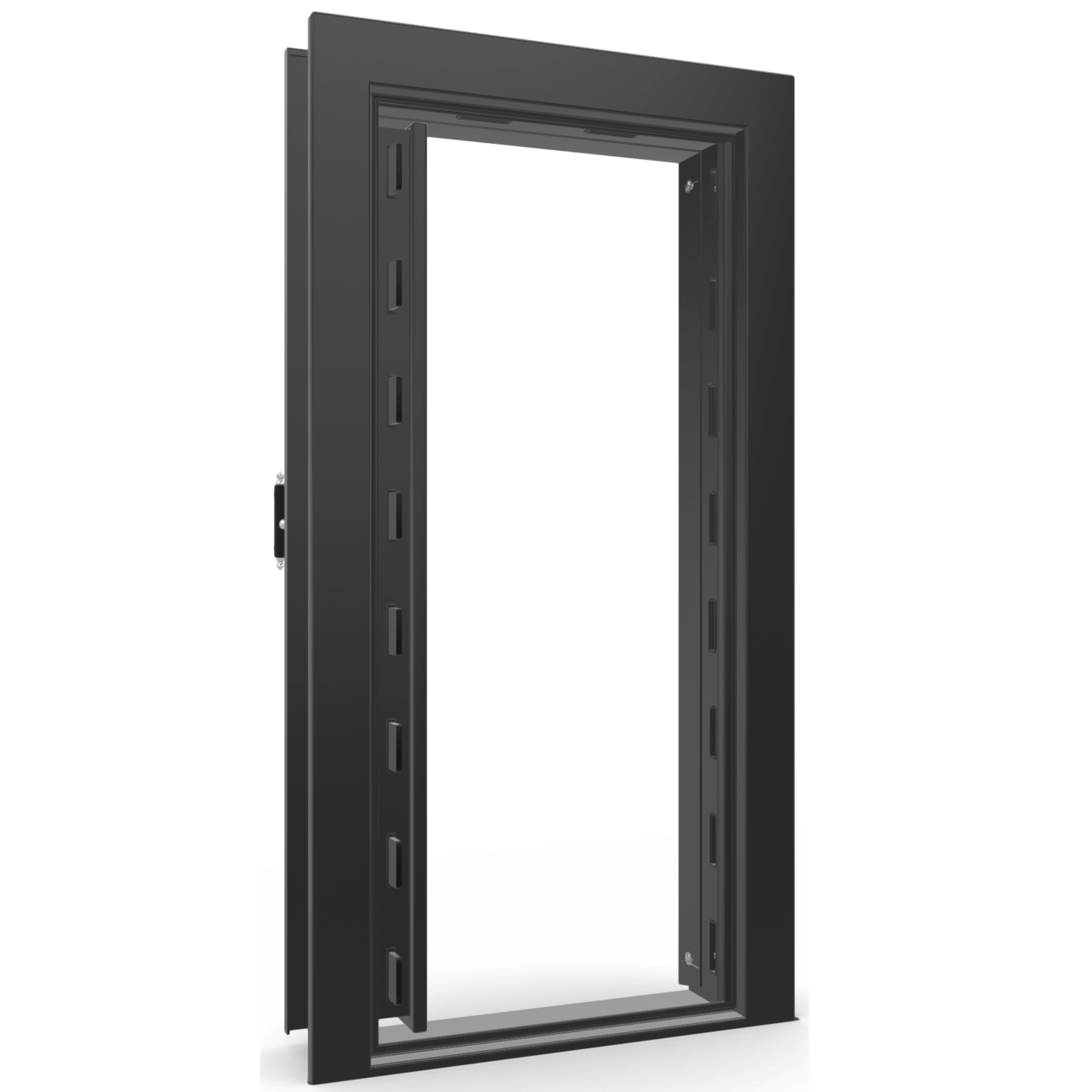

Vault Door Series | In-Swing | Left Hinge | Black Gloss | Electronic Lock

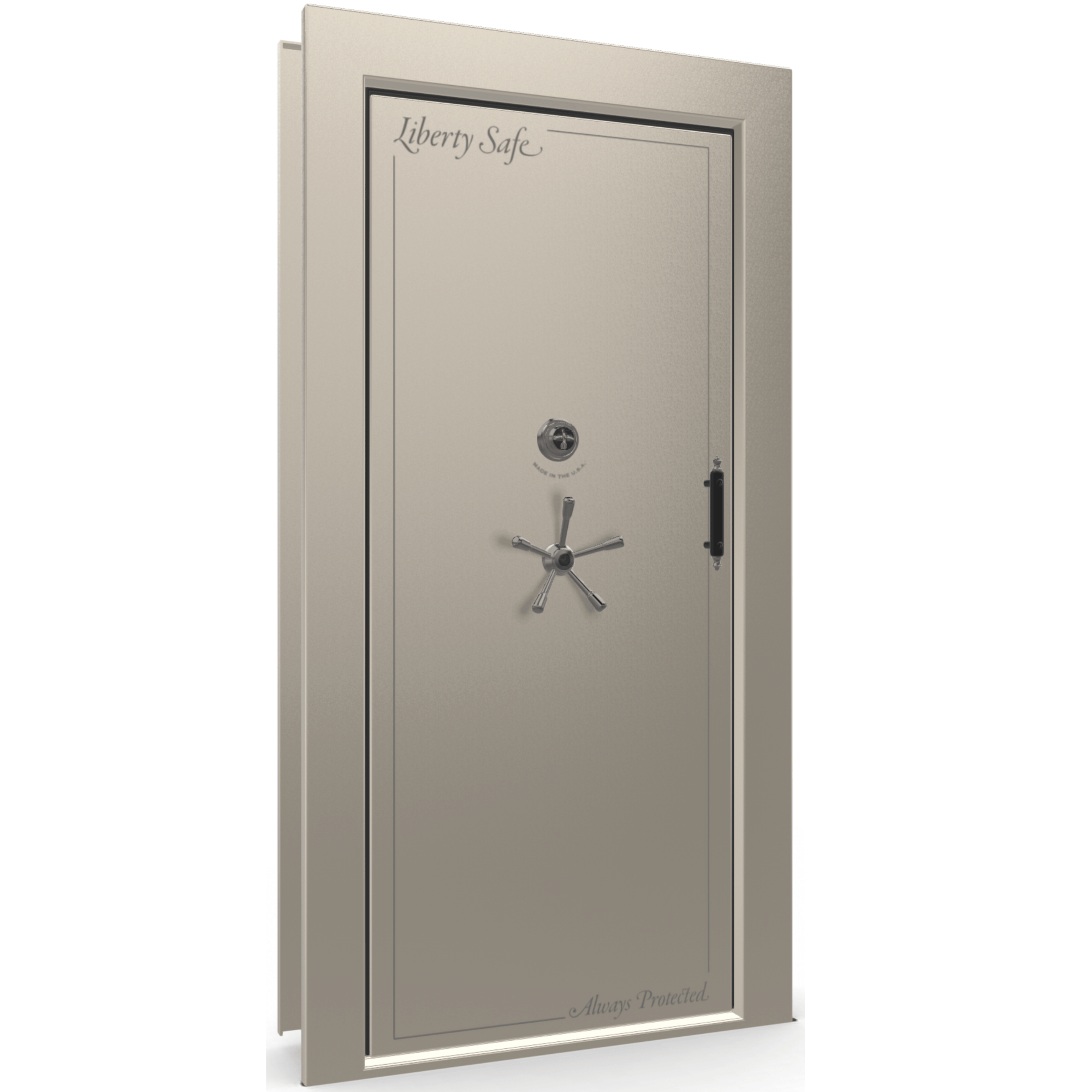

Vault Door Series | In-Swing | Left Hinge | Champagne Gloss | Mechanical Lock

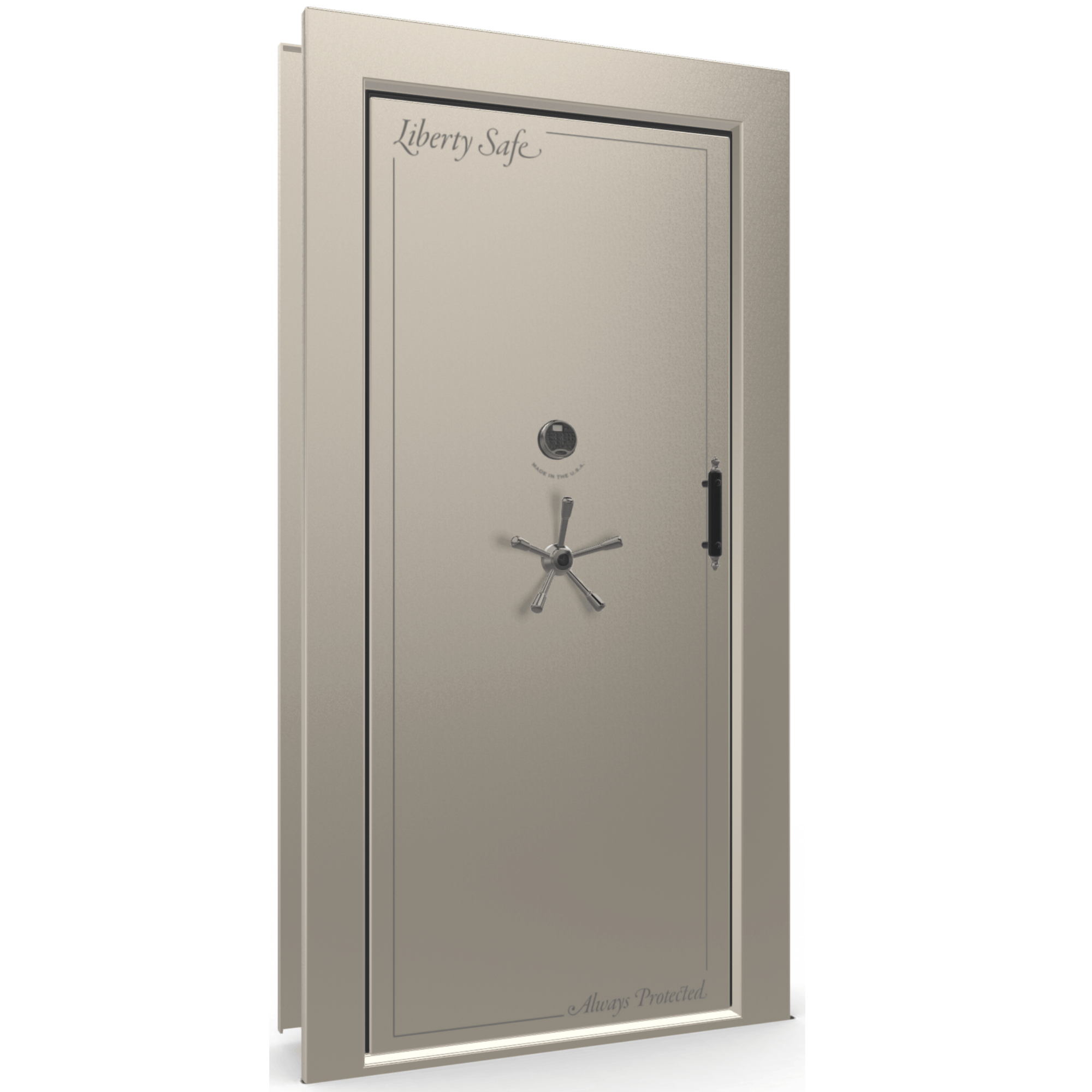

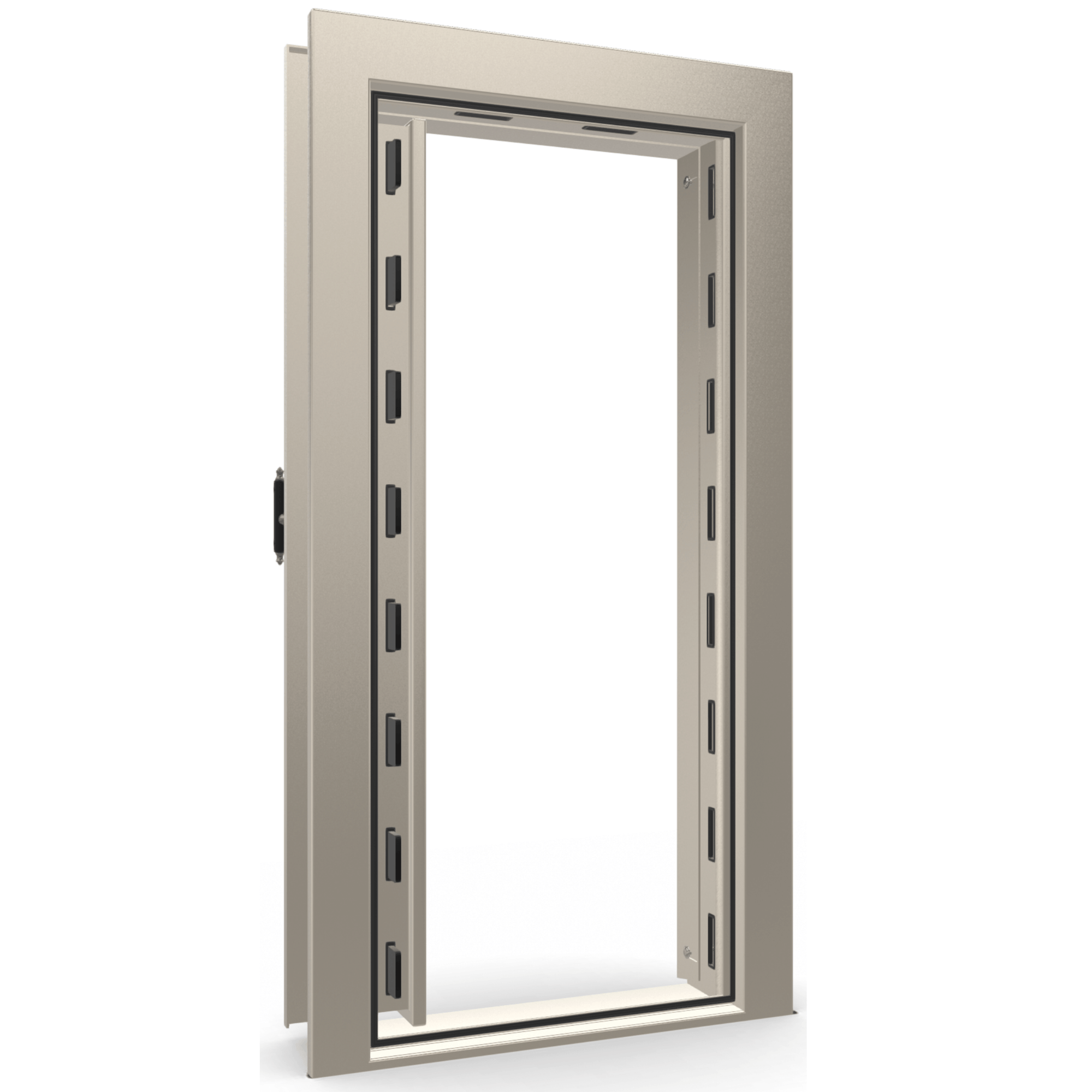

Vault Door Series | In-Swing | Left Hinge | Champagne Gloss | Electronic Lock

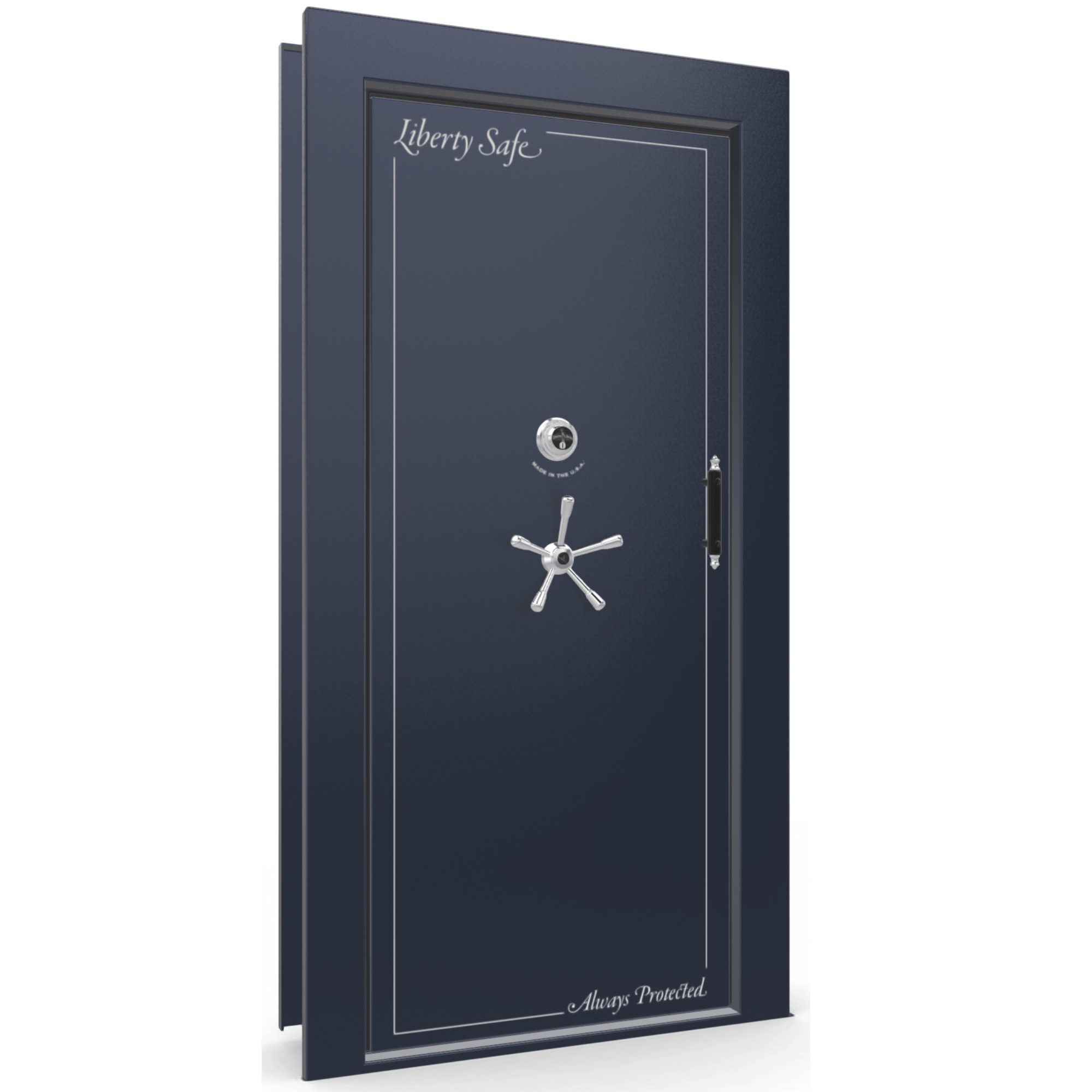

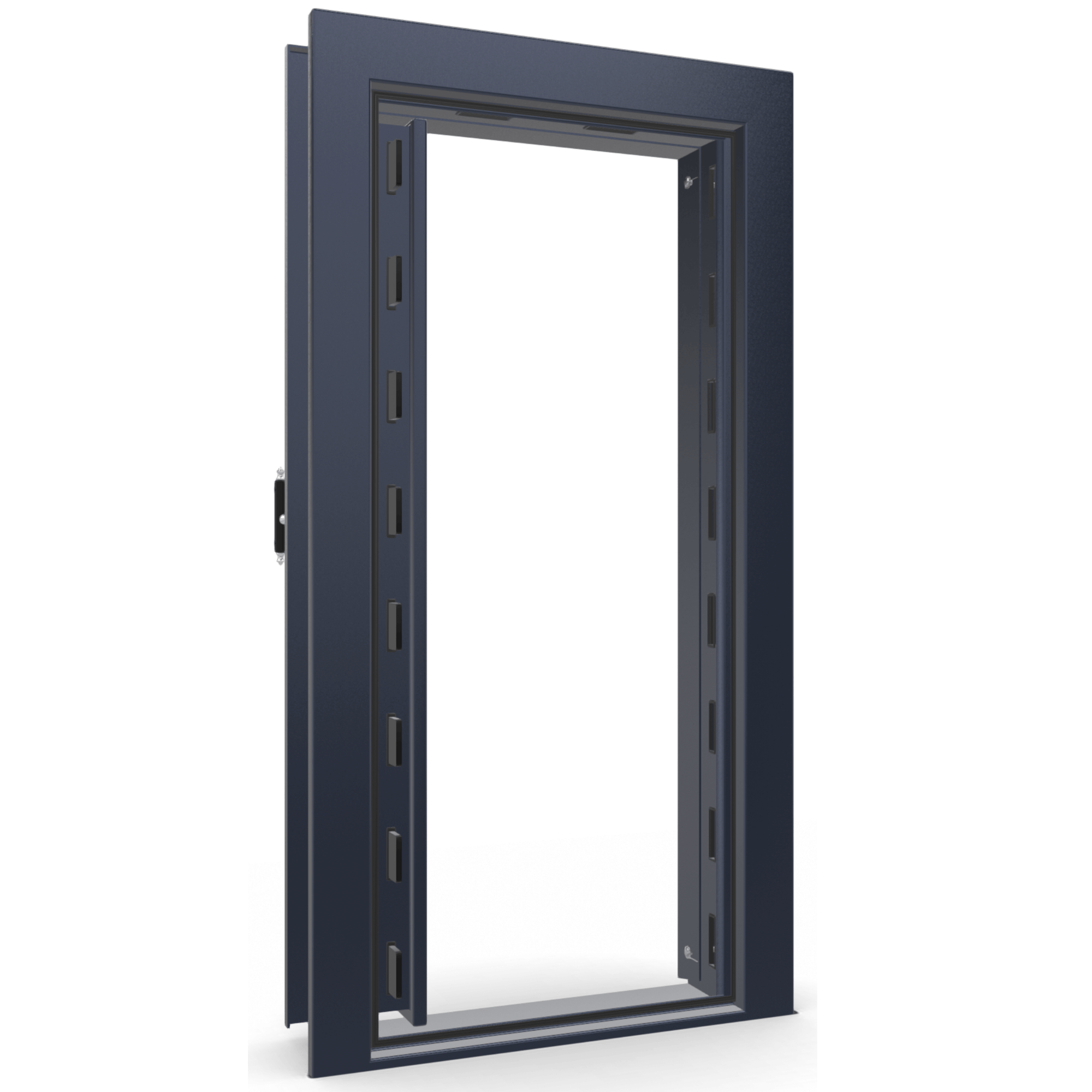

Vault Door Series | In-Swing | Left Hinge | Blue Gloss | Mechanical Lock

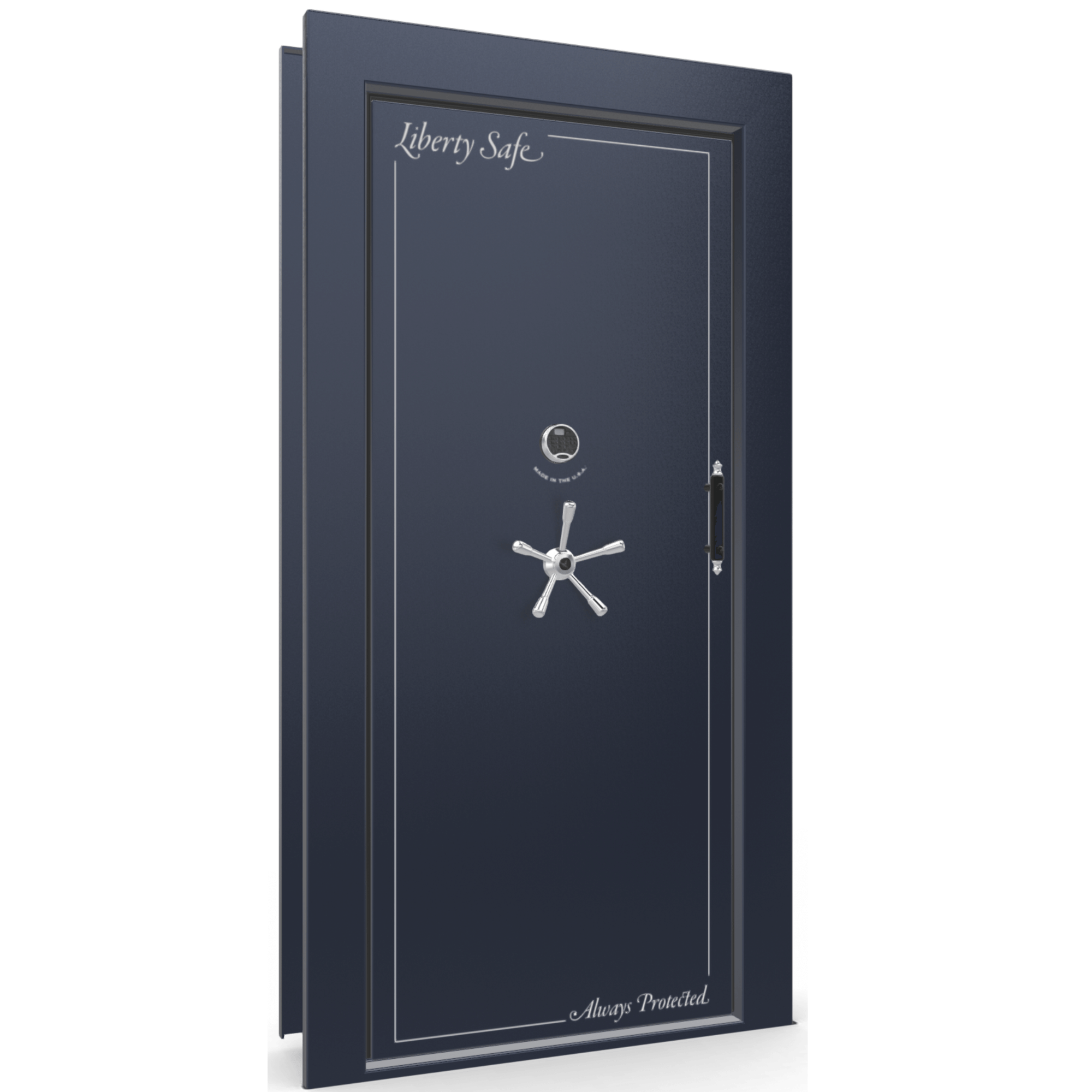

Vault Door Series | In-Swing | Left Hinge | Blue Gloss | Electronic Lock

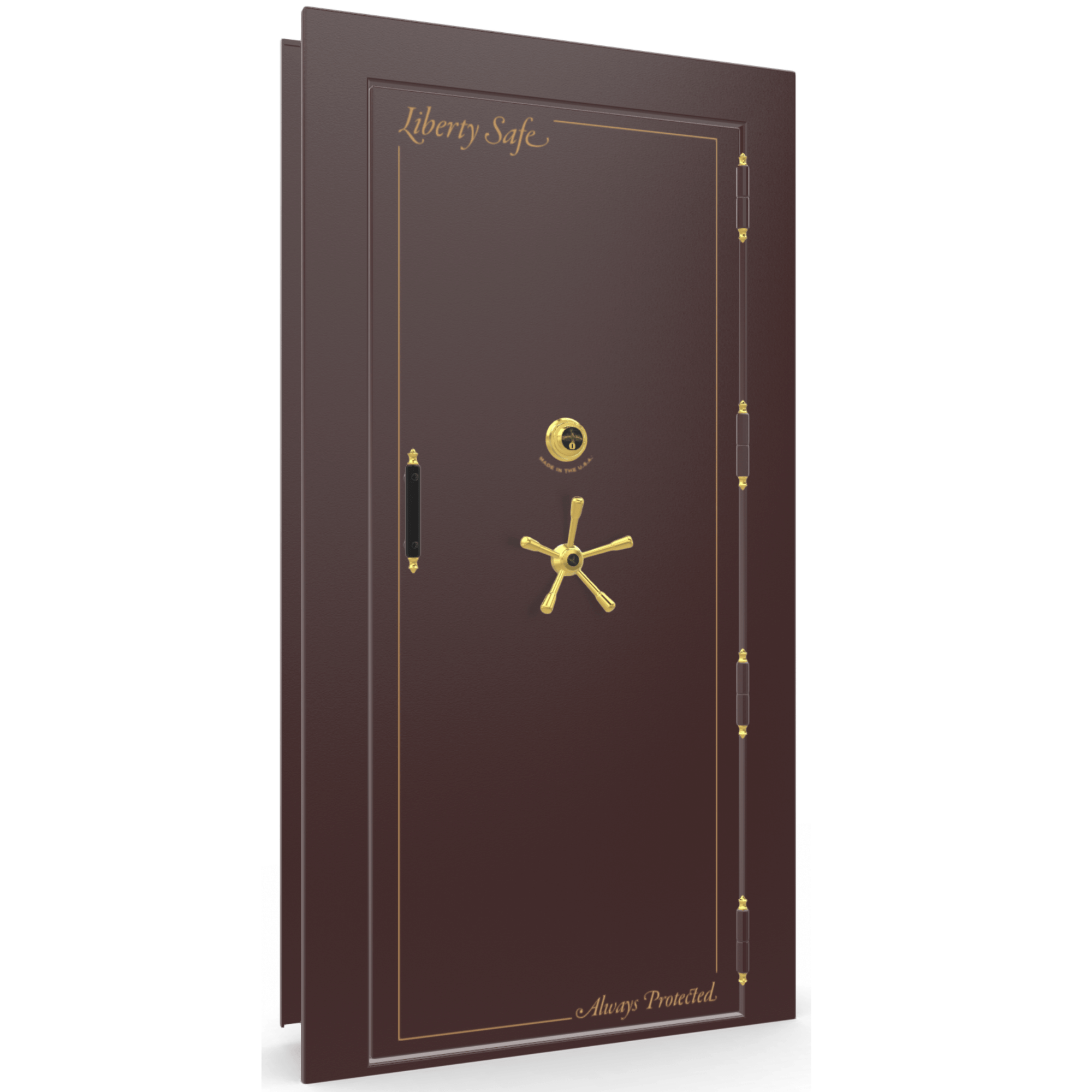

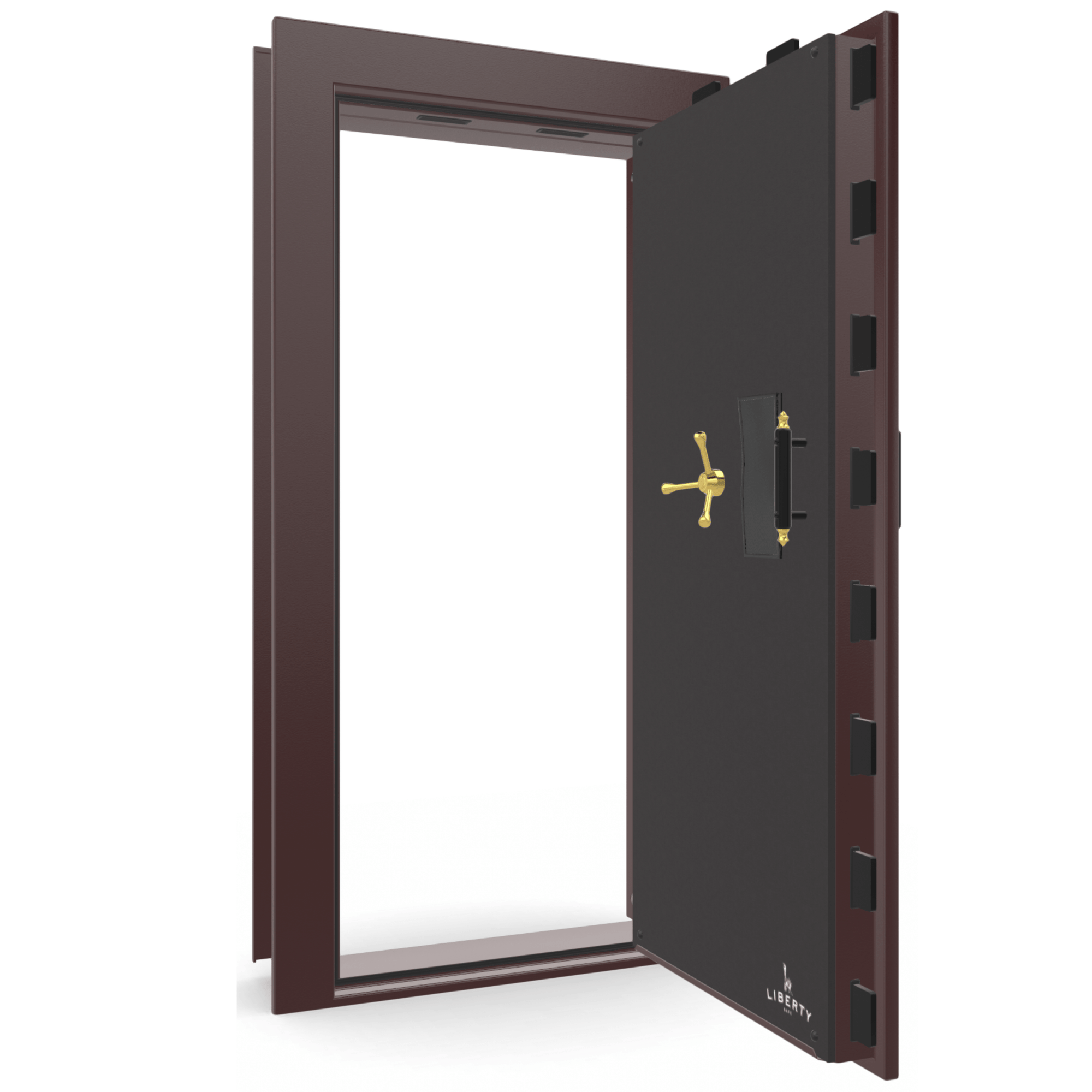

Vault Door Series | Out-Swing | Right Hinge | Burgundy Marble | Mechanical Lock

Vault Door Series | Out-Swing | Right Hinge | Burgundy Marble | Electronic Lock

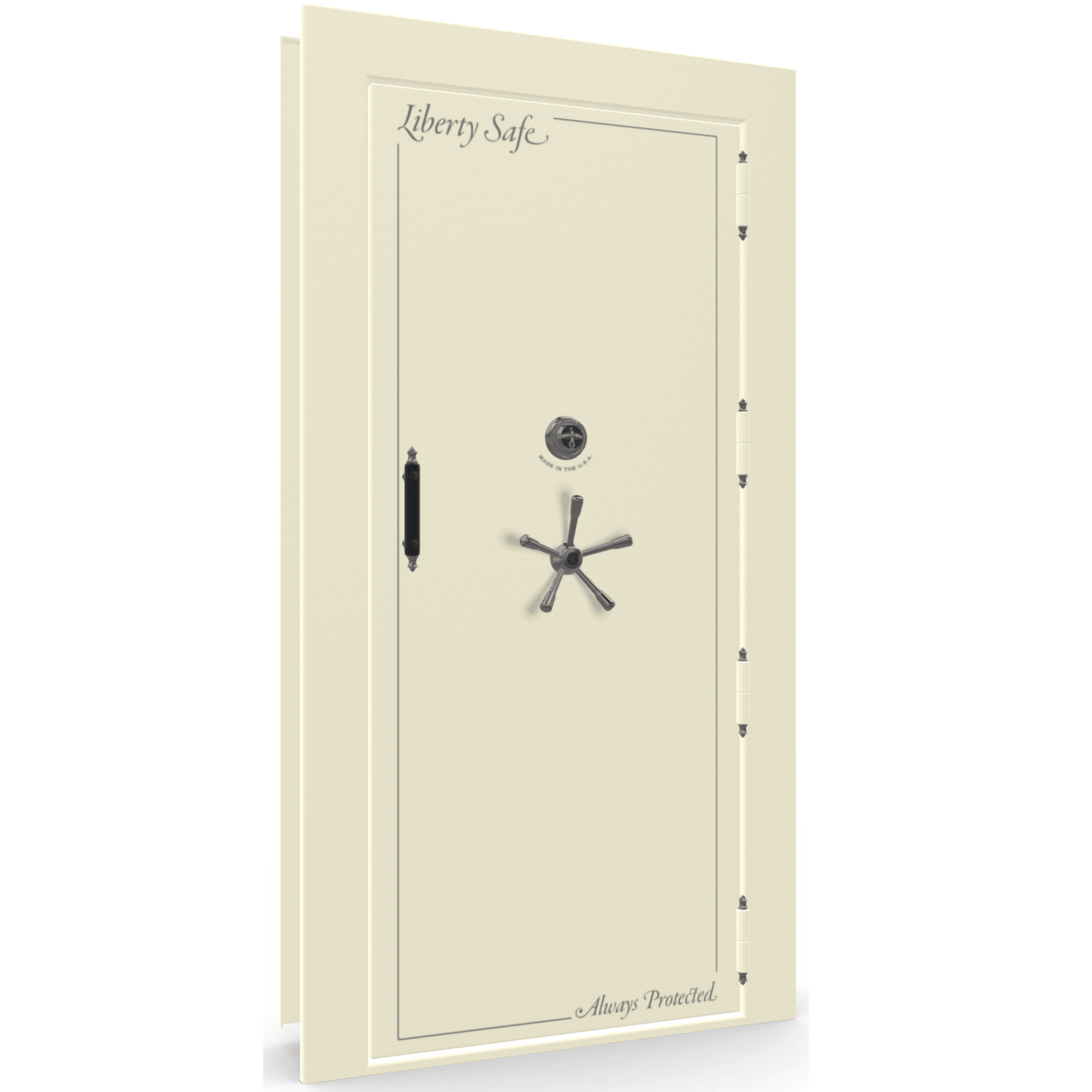

Vault Door Series | Out-Swing | Right Hinge | White Marble | Mechanical Lock

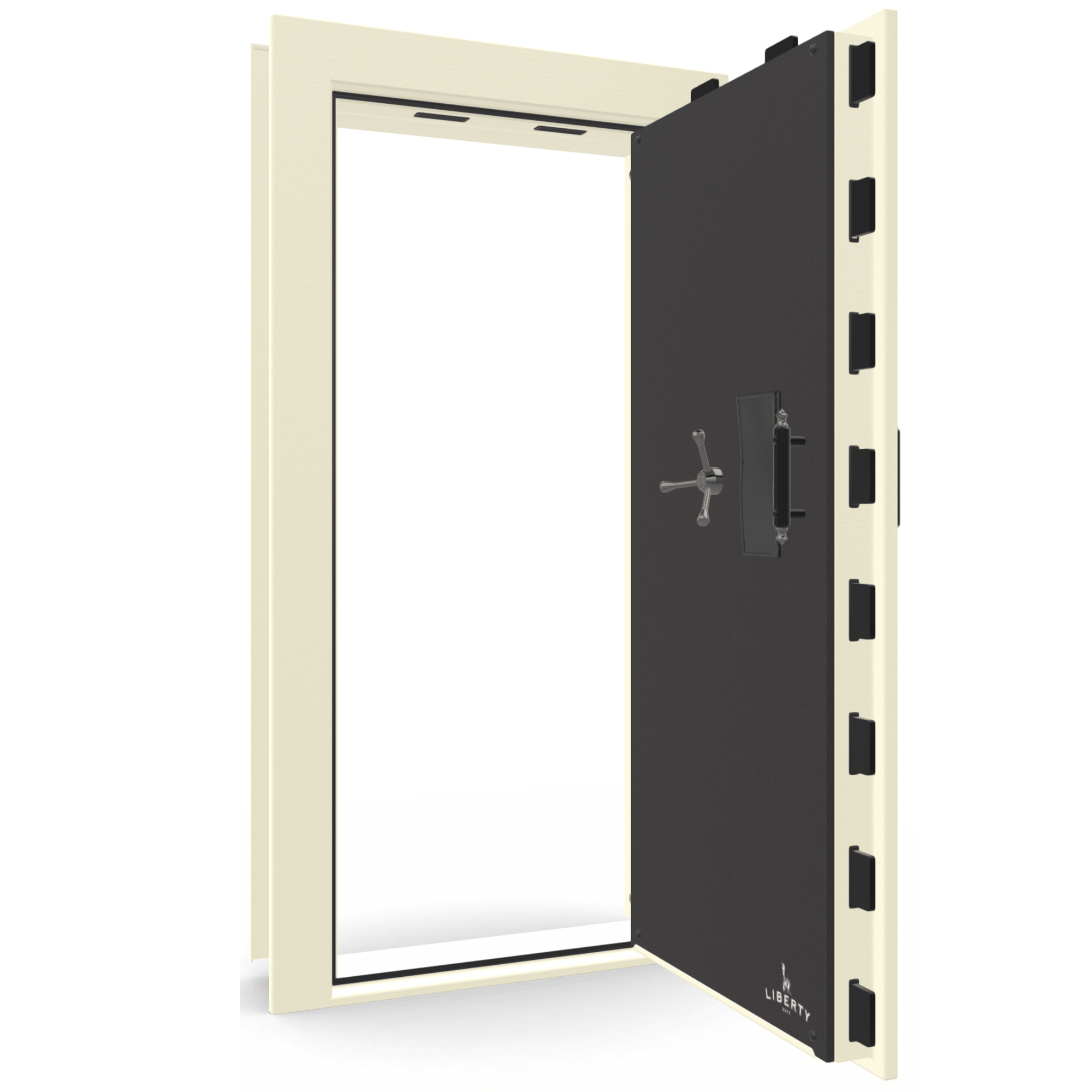

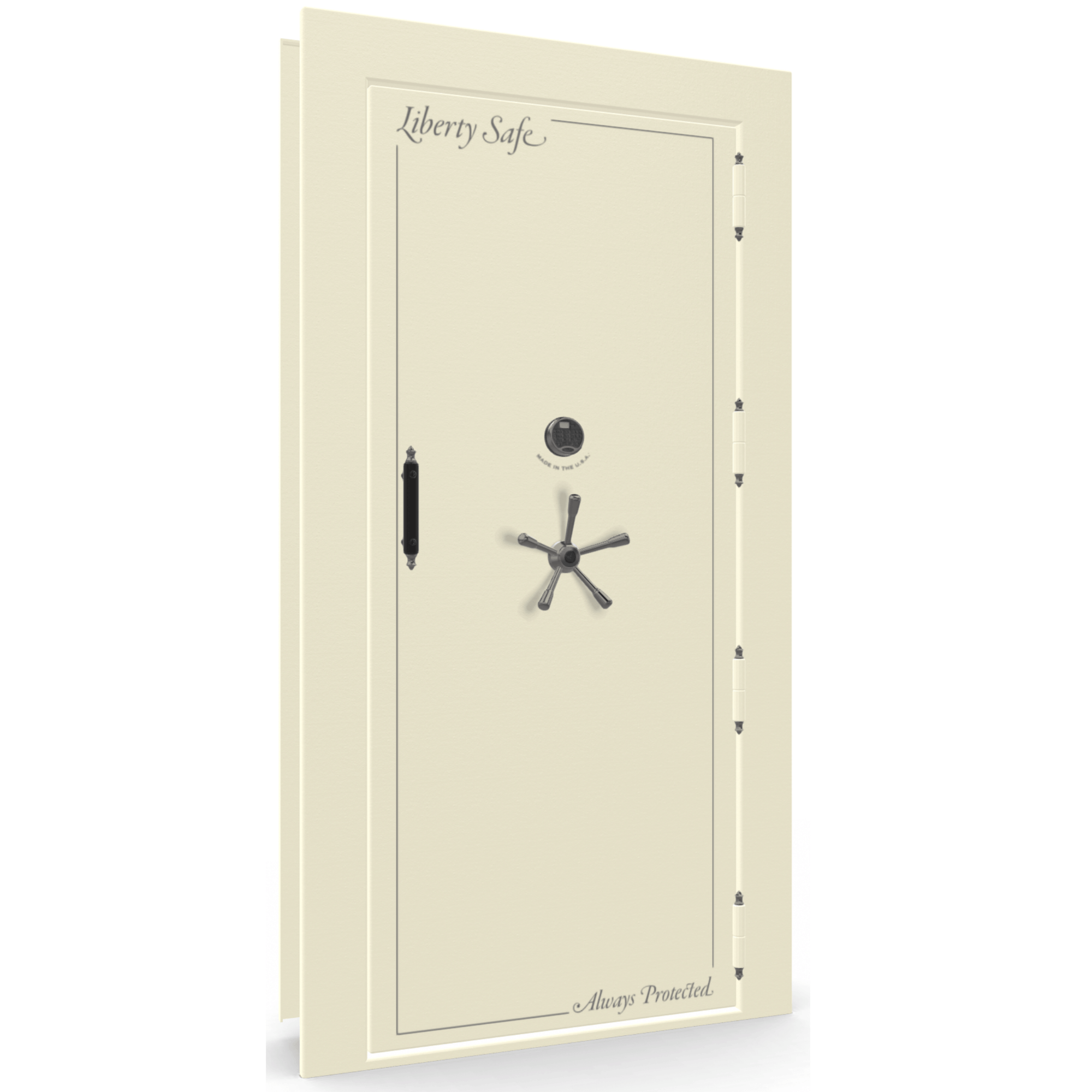

Vault Door Series | Out-Swing | Right Hinge | White Marble | Electronic Lock

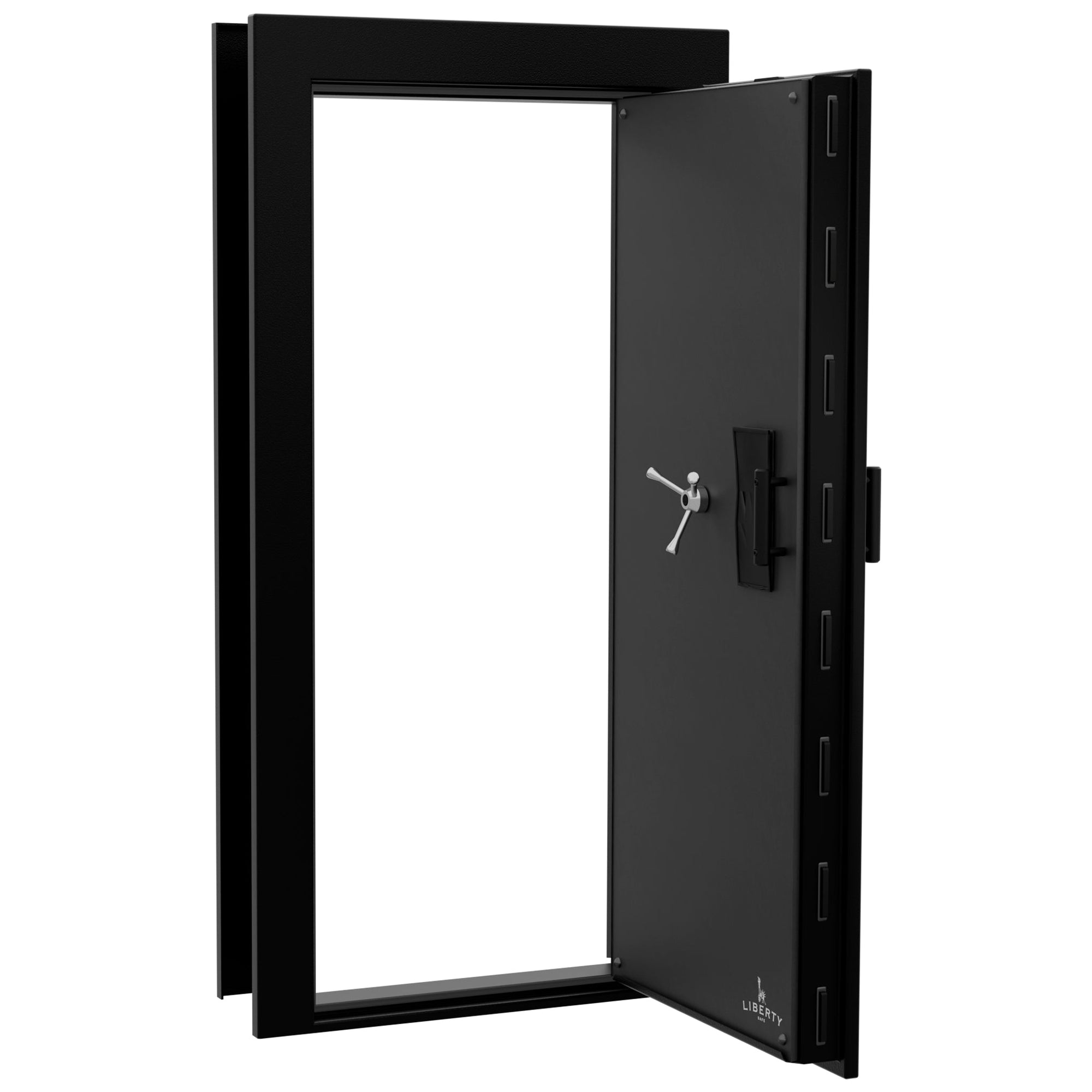

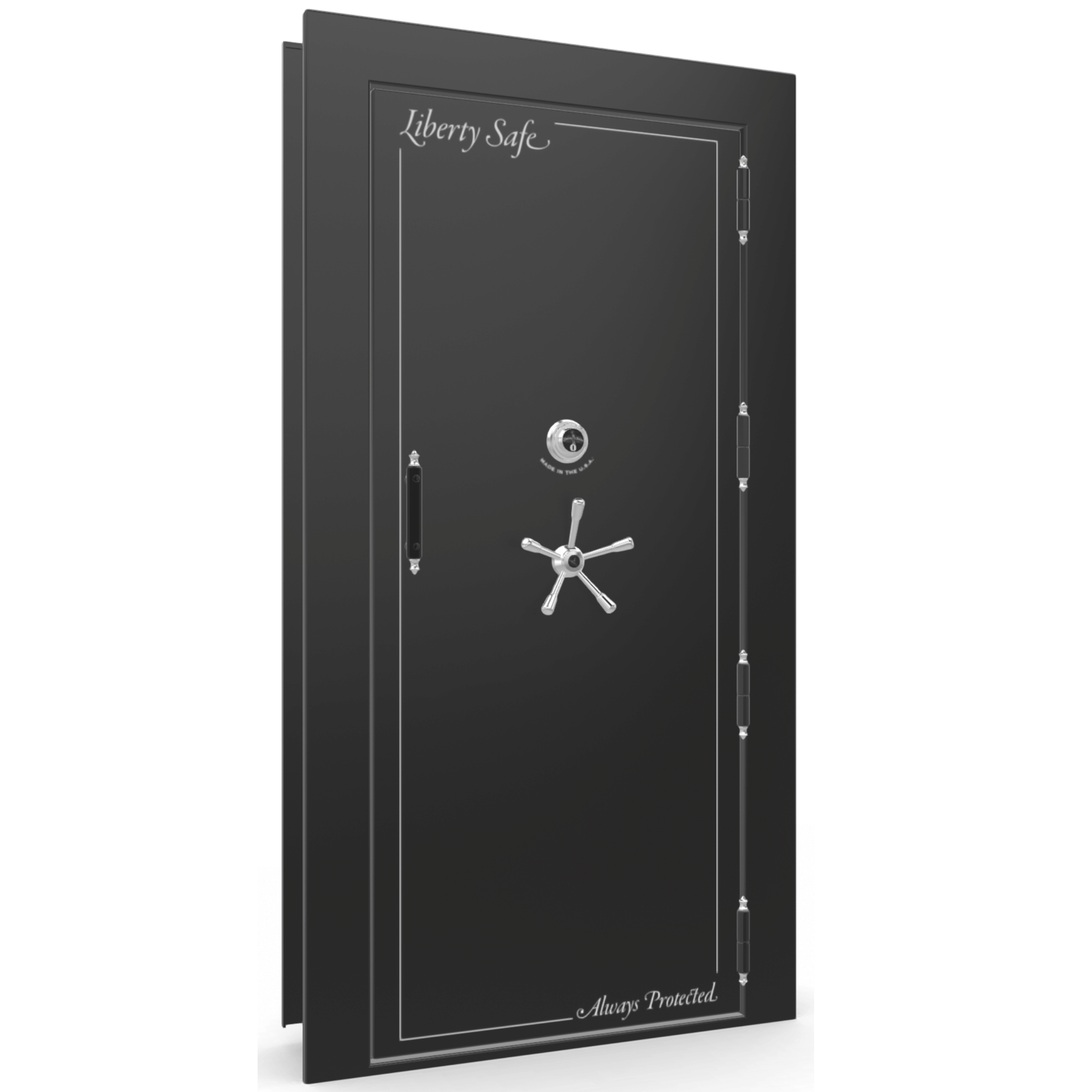

Vault Door Series | Out-Swing | Right Hinge | Black Gloss | Mechanical Lock

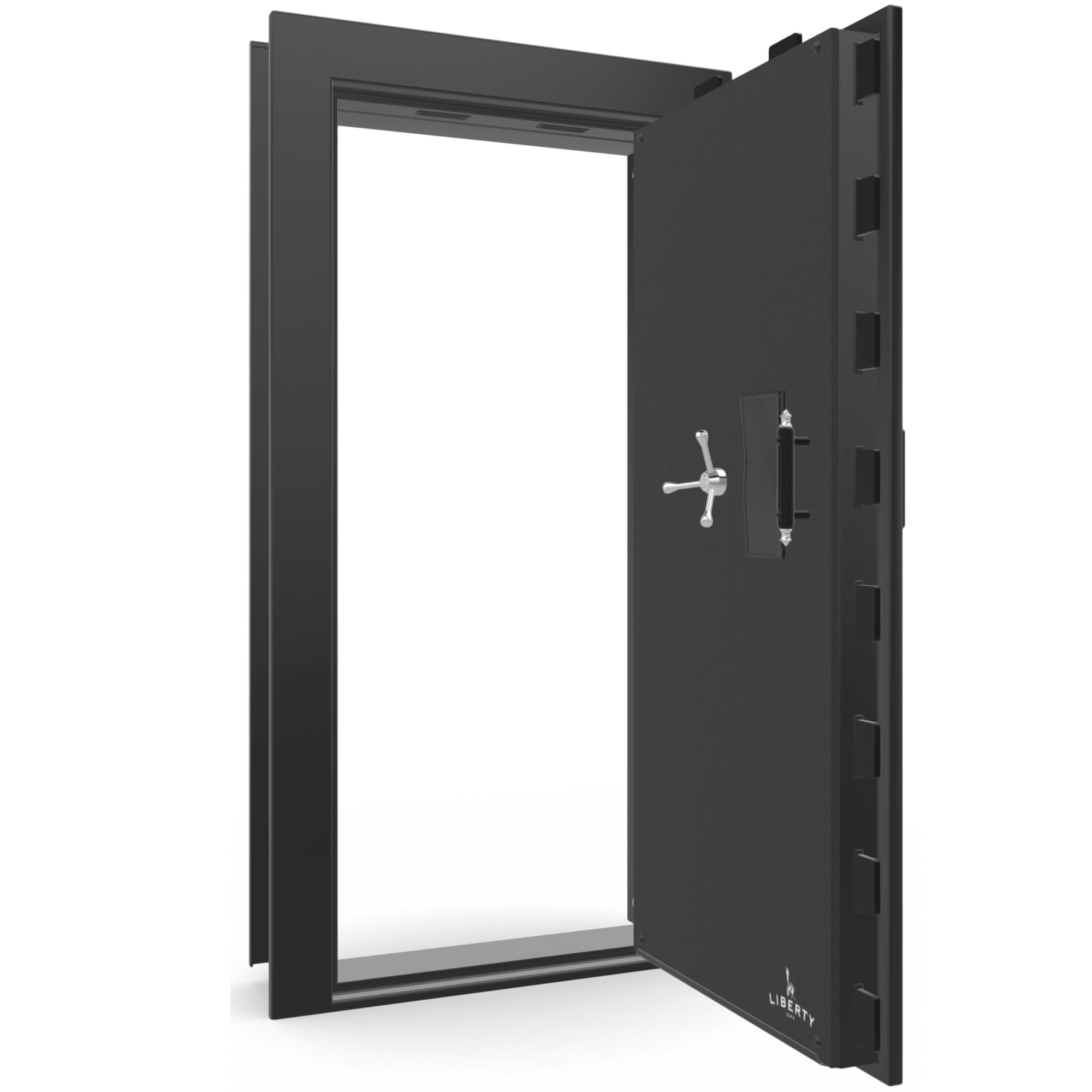

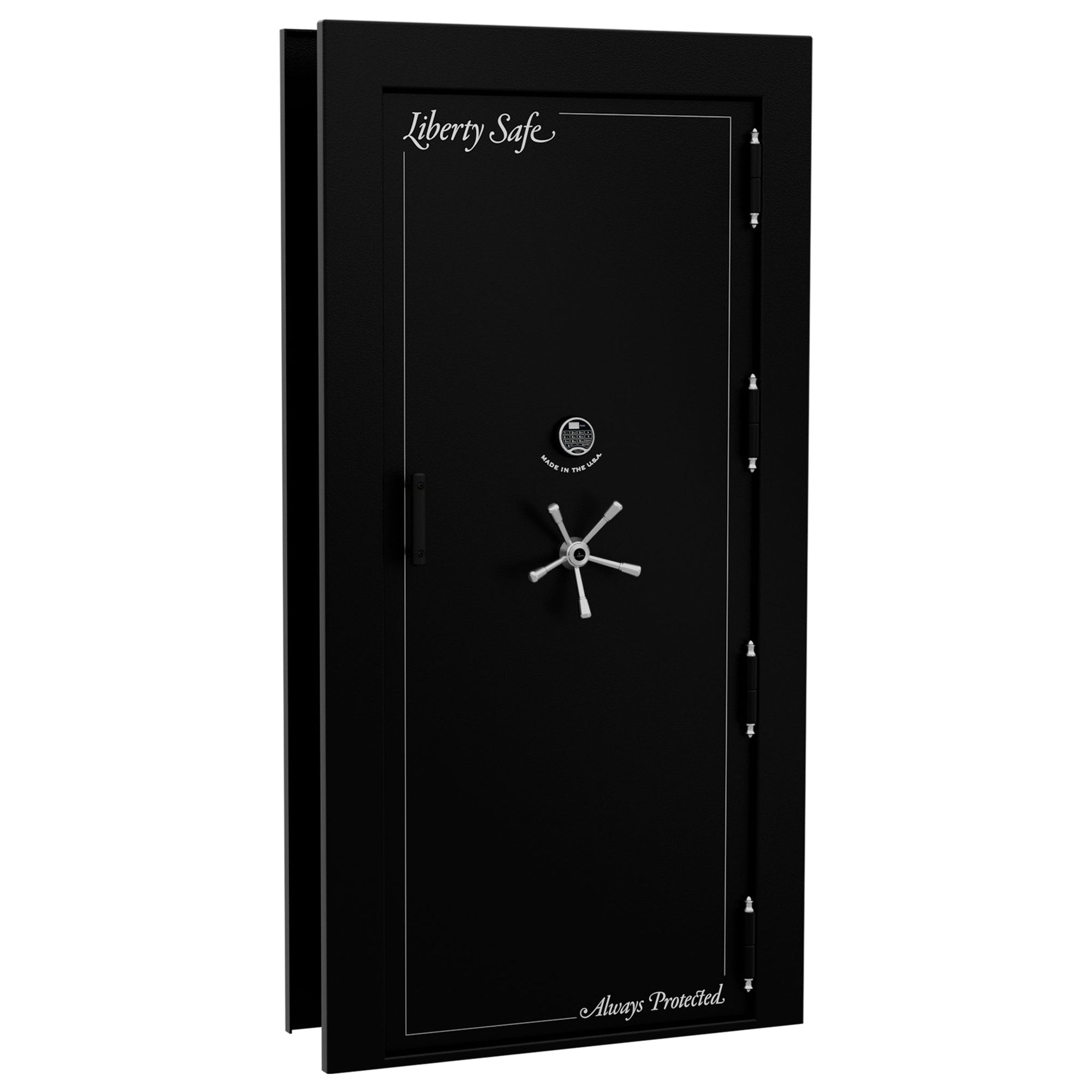

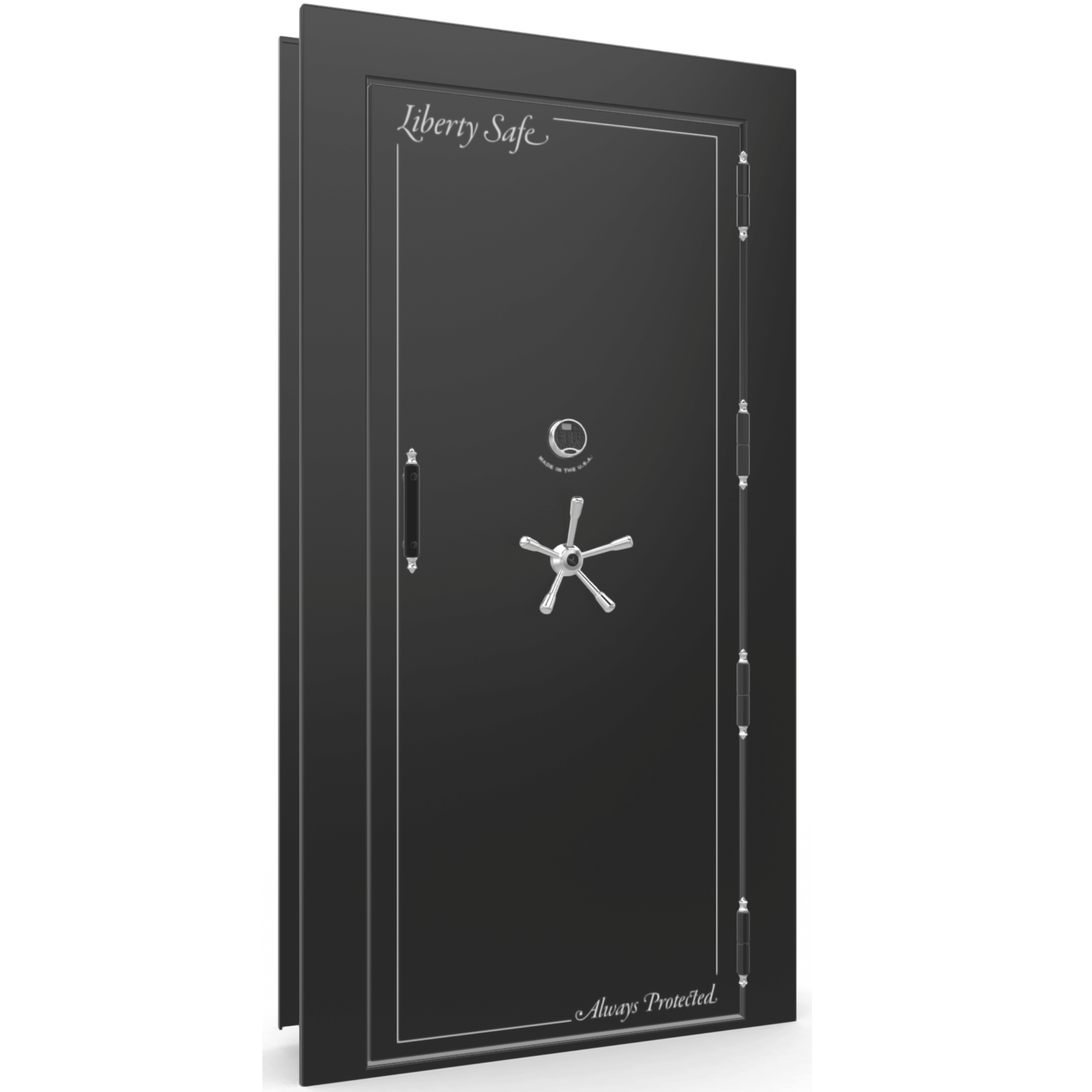

Vault Door Series | Out-Swing | Right Hinge | Black Gloss | Electronic Lock

Vault Door Series | Out-Swing | Right Hinge | Champagne Gloss | Mechanical Lock

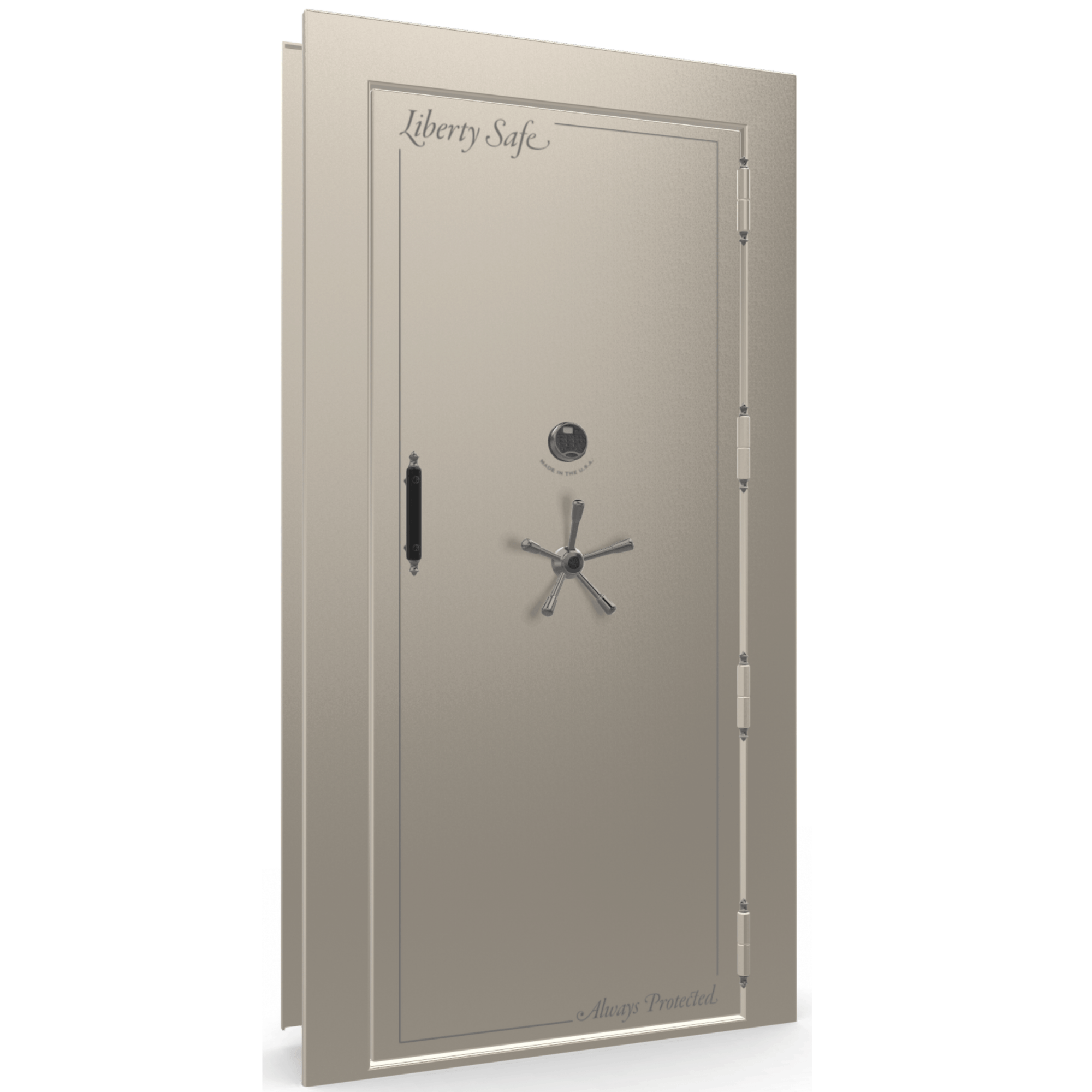

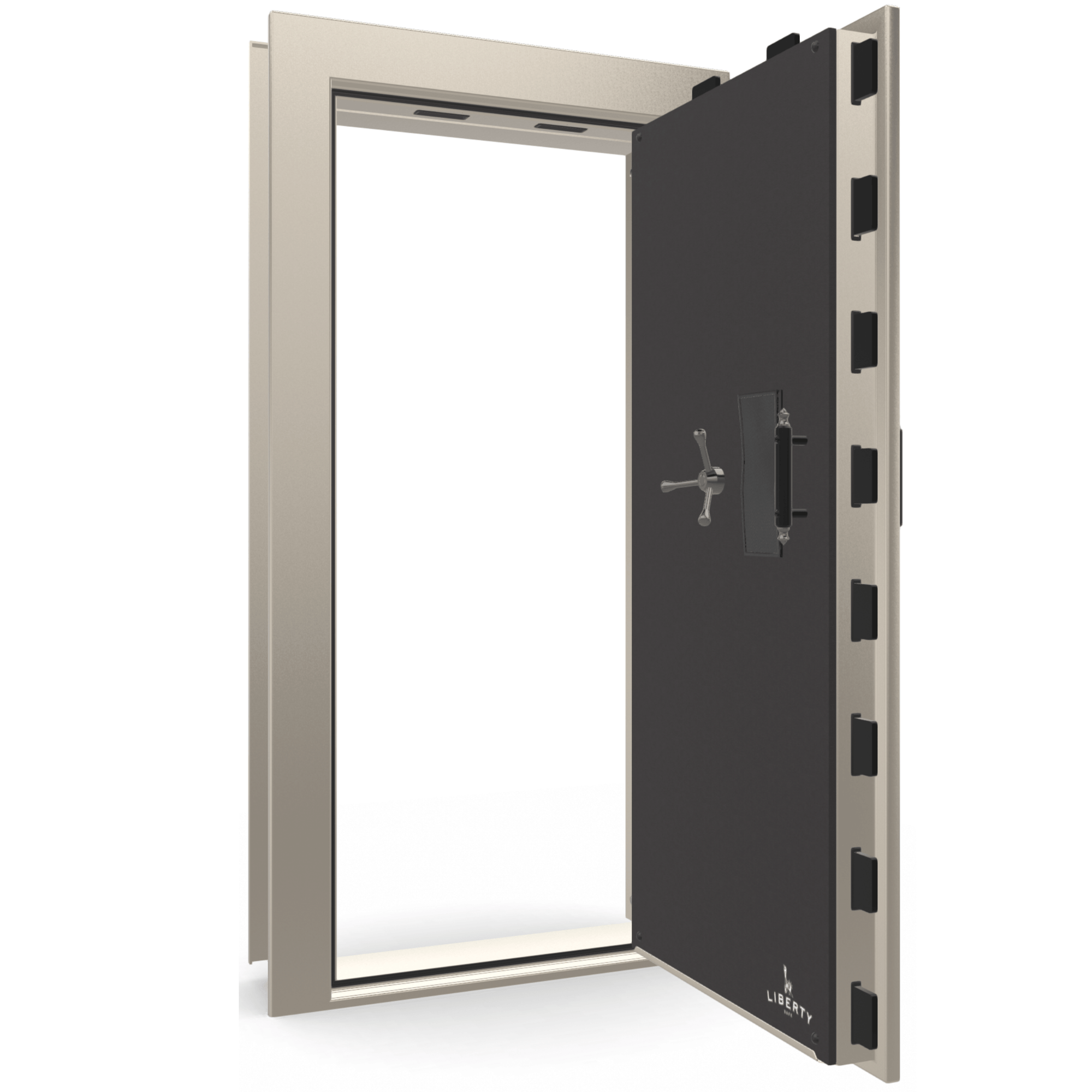

Vault Door Series | Out-Swing | Right Hinge | Champagne Gloss | Electronic Lock

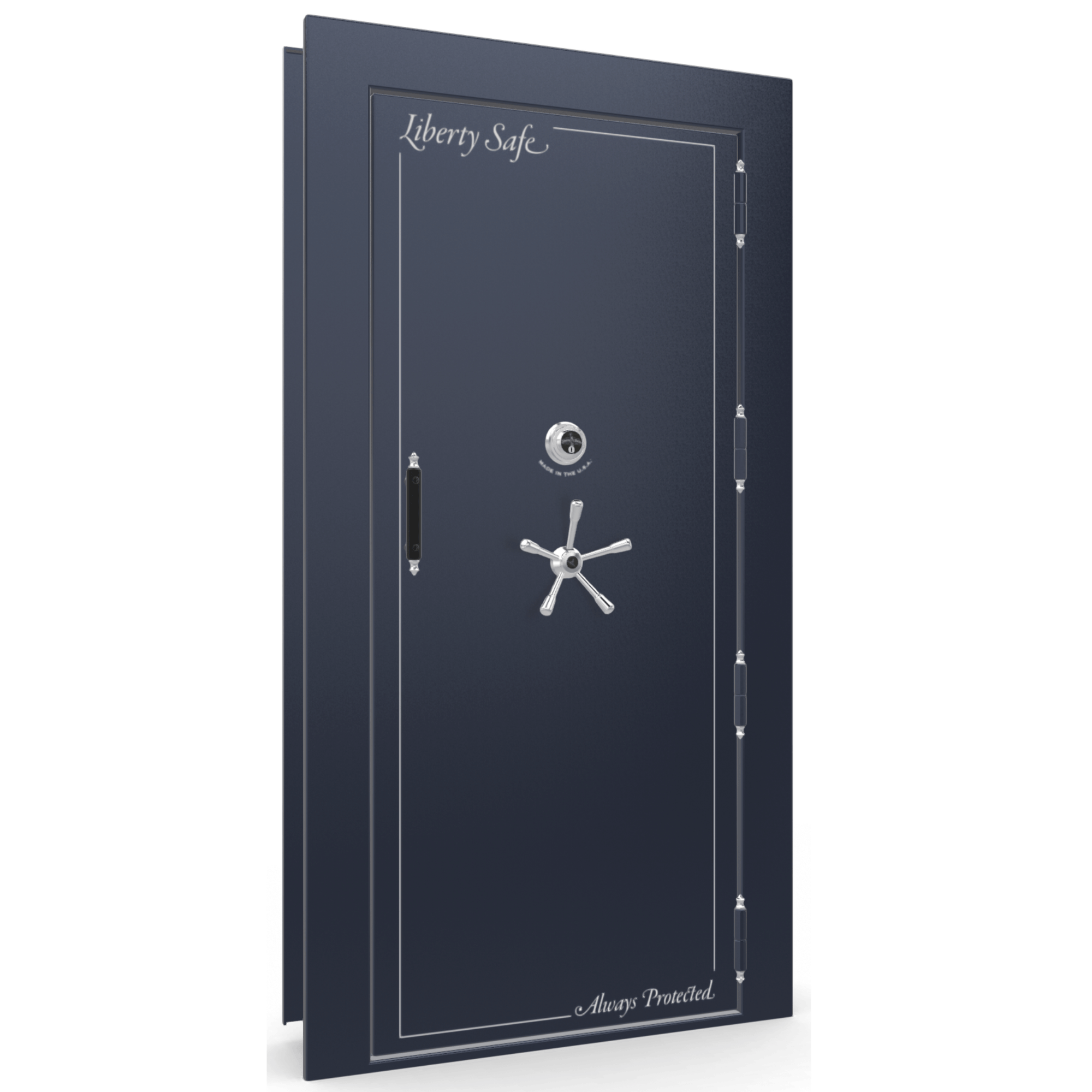

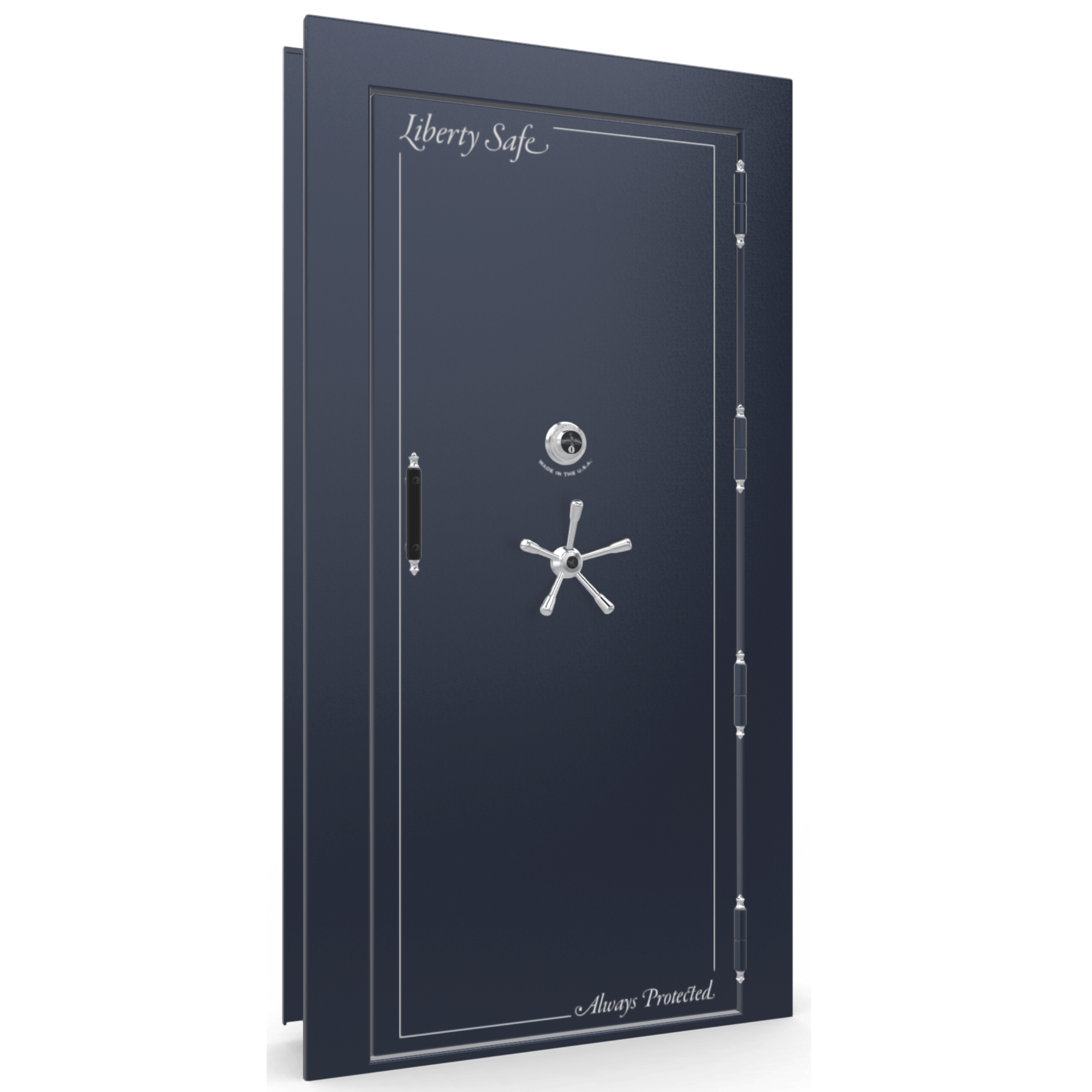

Vault Door Series | Out-Swing | Right Hinge | Blue Gloss | Mechanical Lock

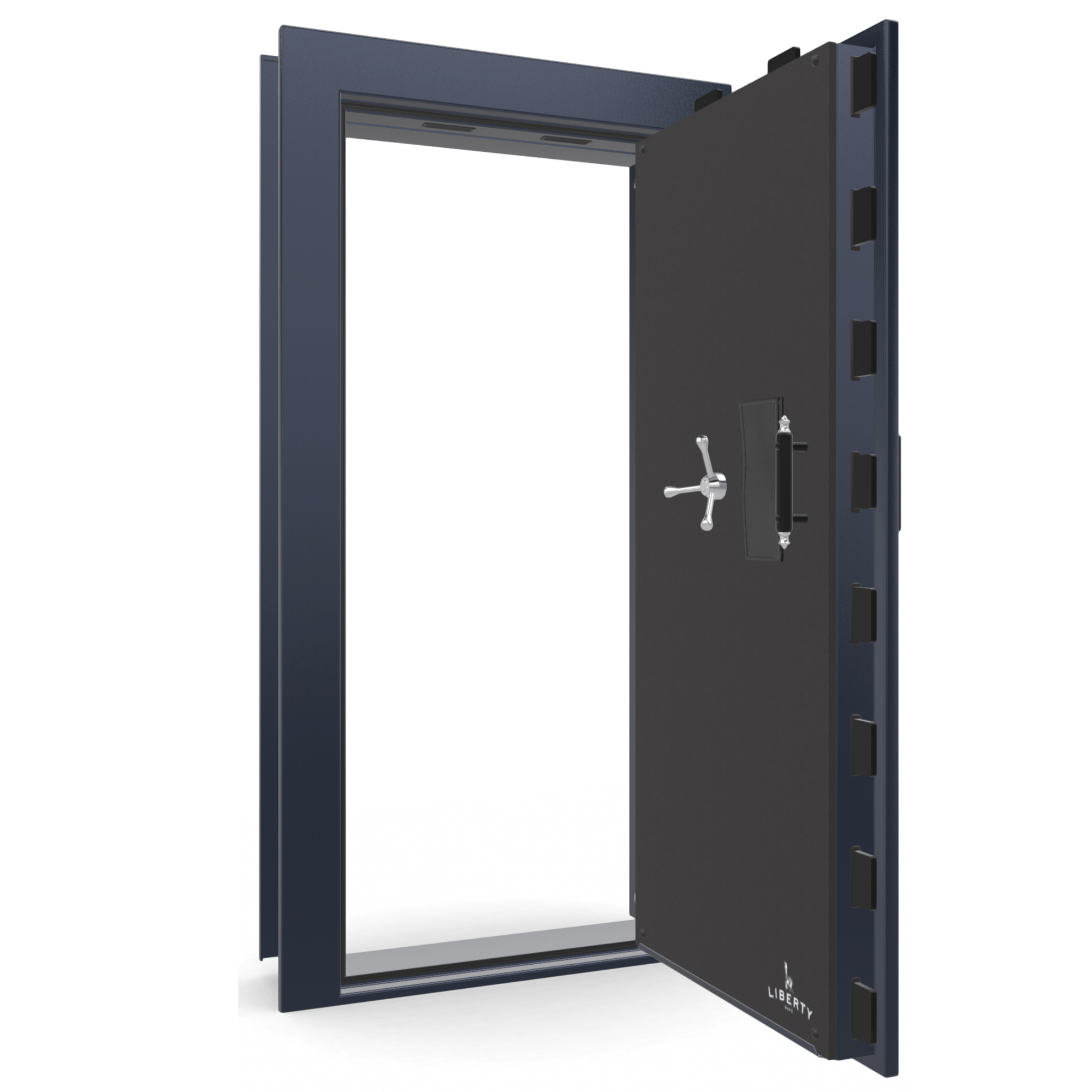

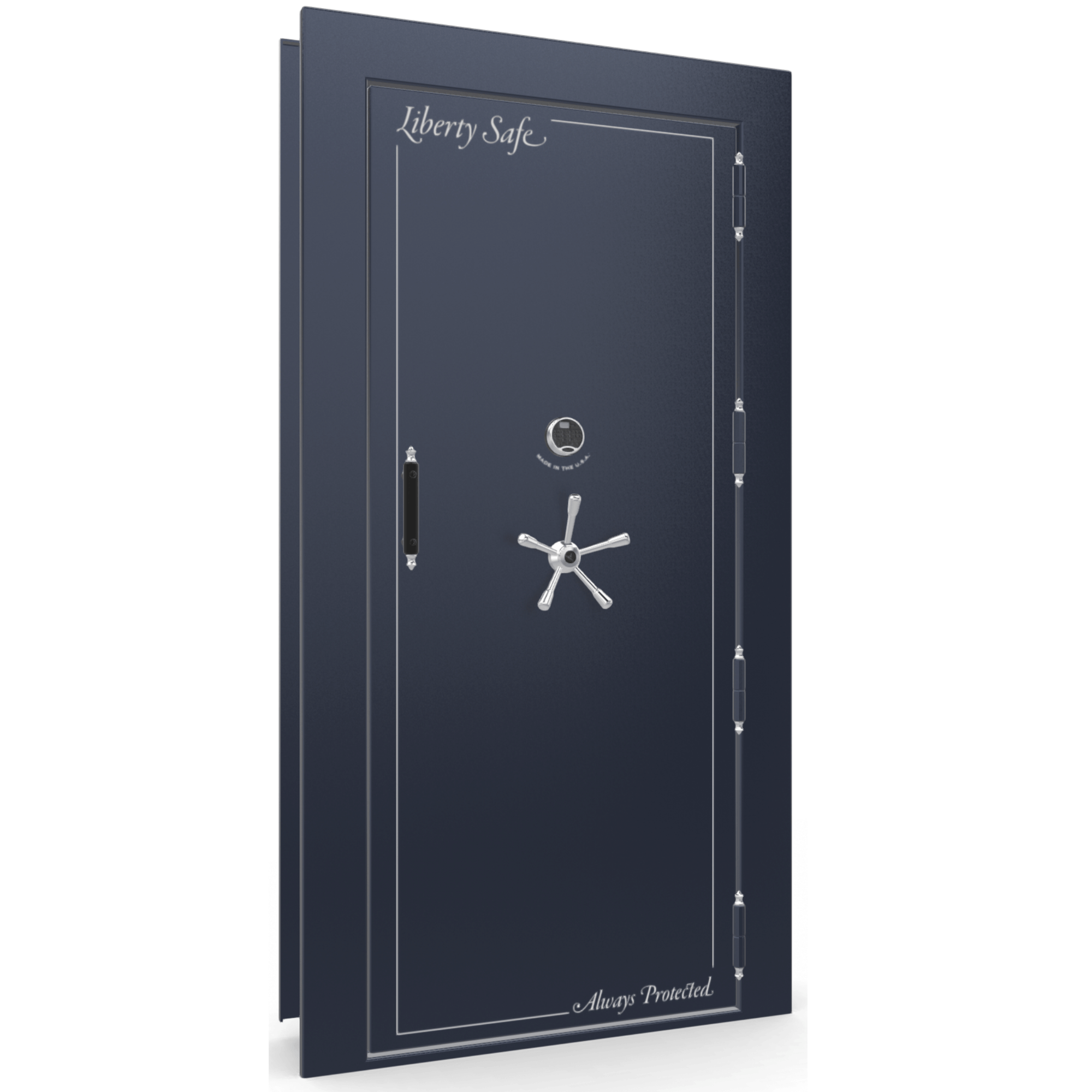

Vault Door Series | Out-Swing | Right Hinge | Blue Gloss | Electronic Lock

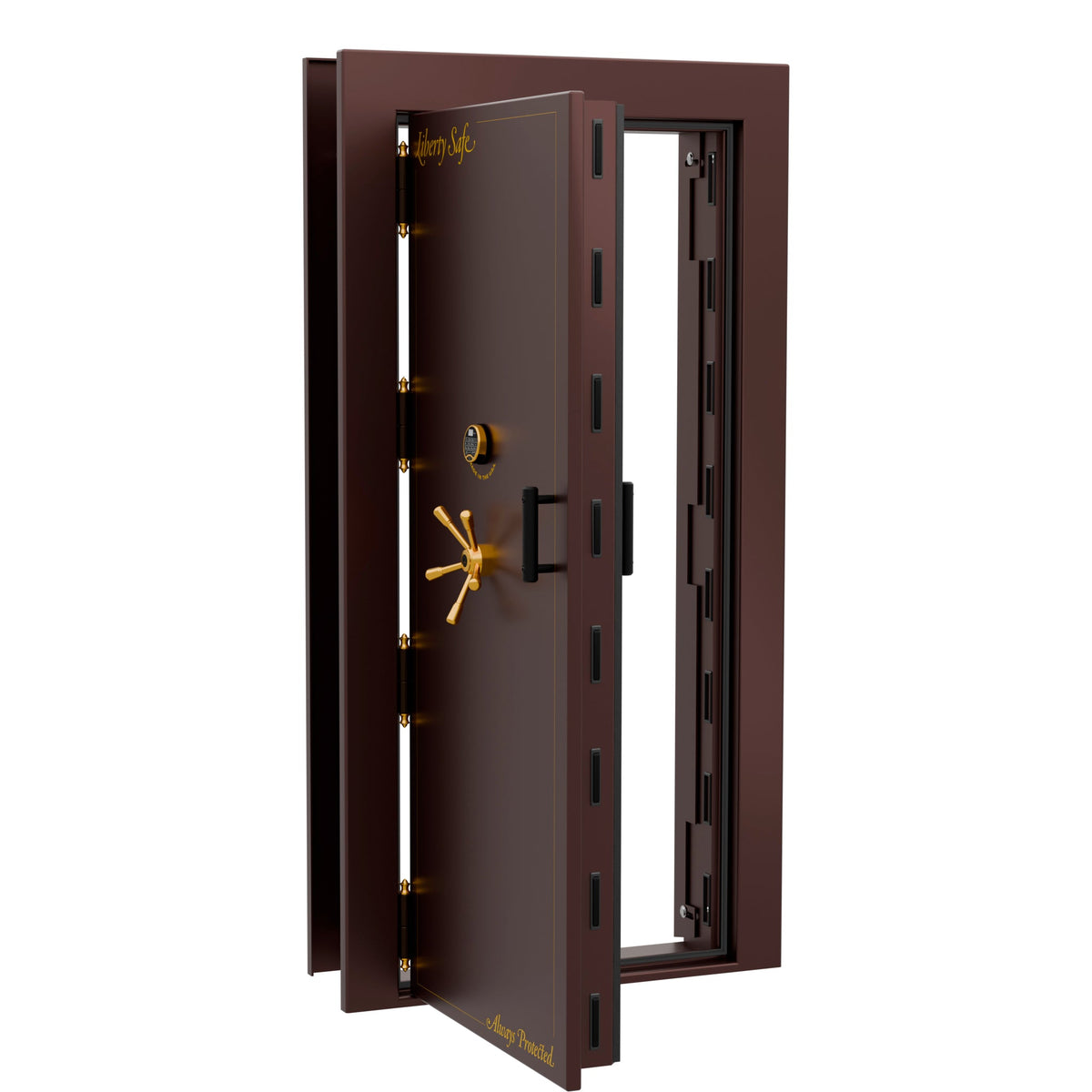

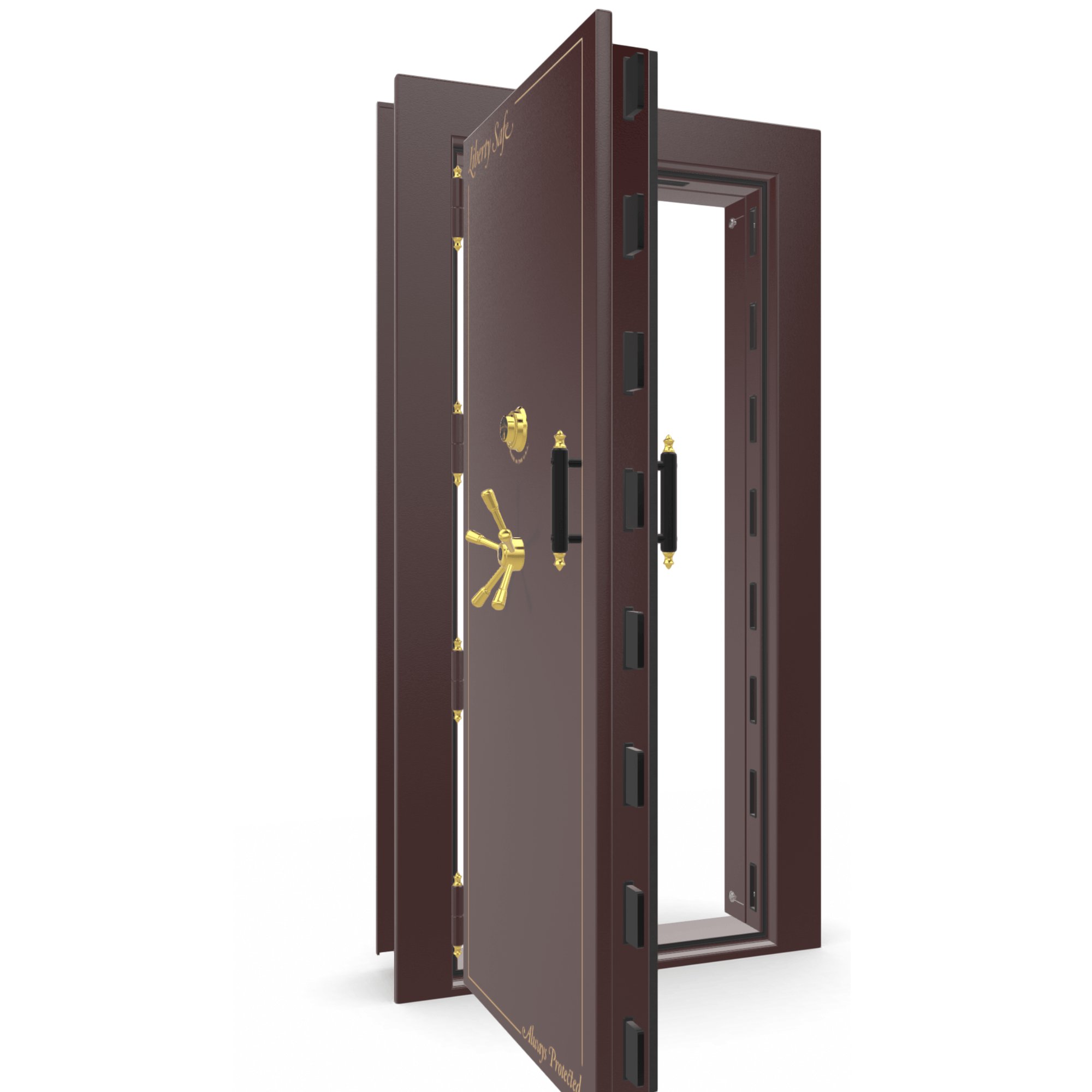

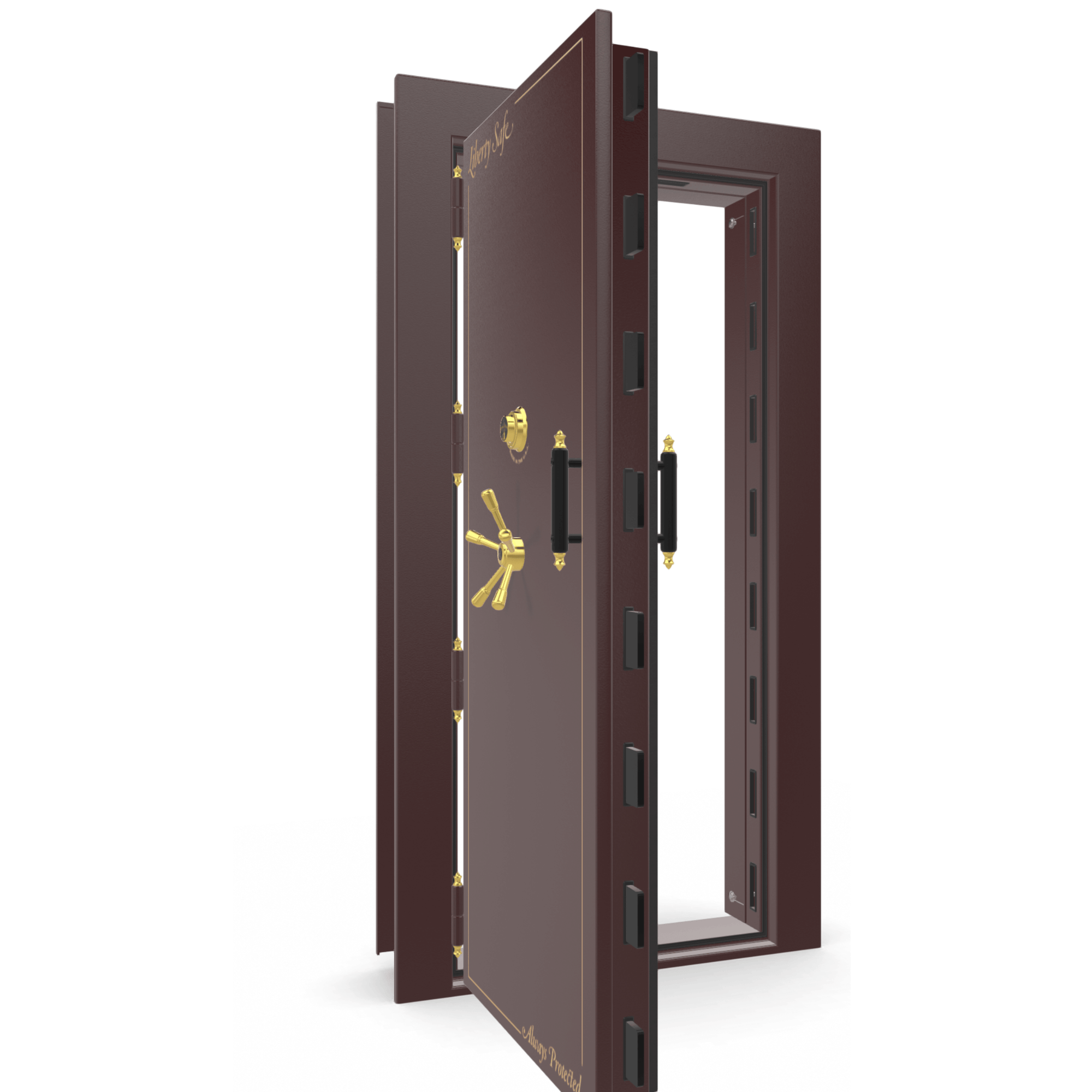

Vault Door Series | Out-Swing | Left Hinge | Burgundy Marble | Mechanical Lock

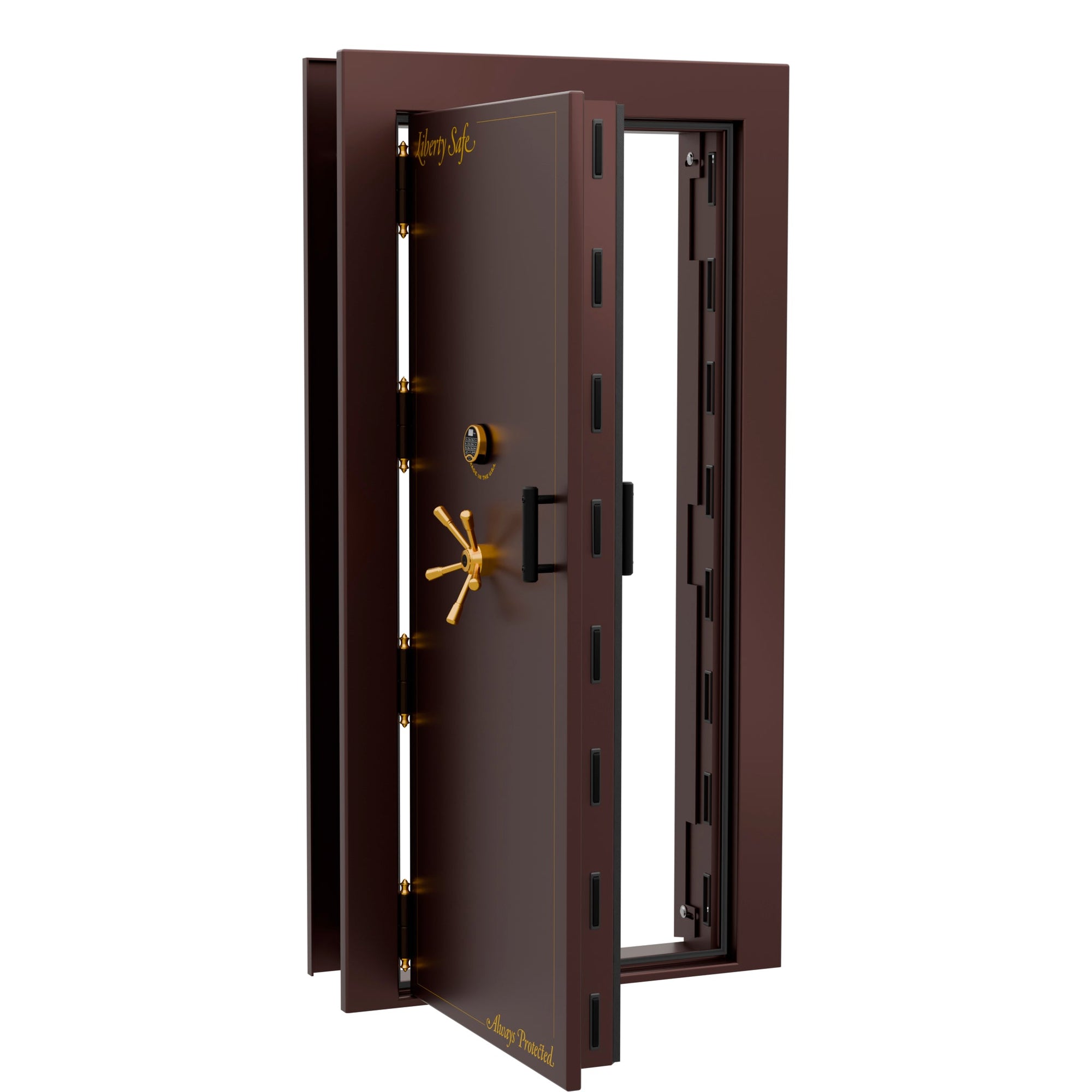

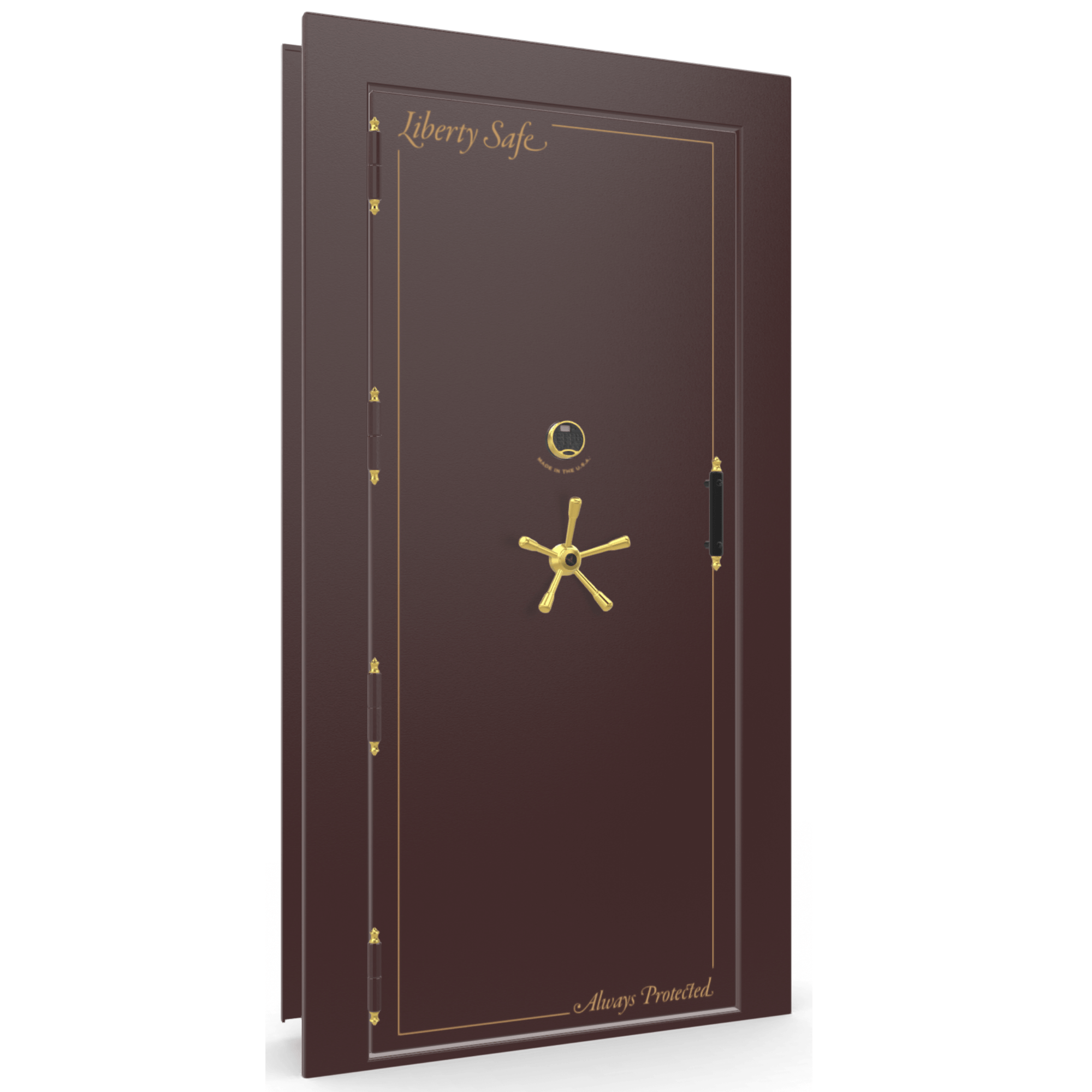

Vault Door Series | Out-Swing | Left Hinge | Burgundy Marble | Electronic Lock

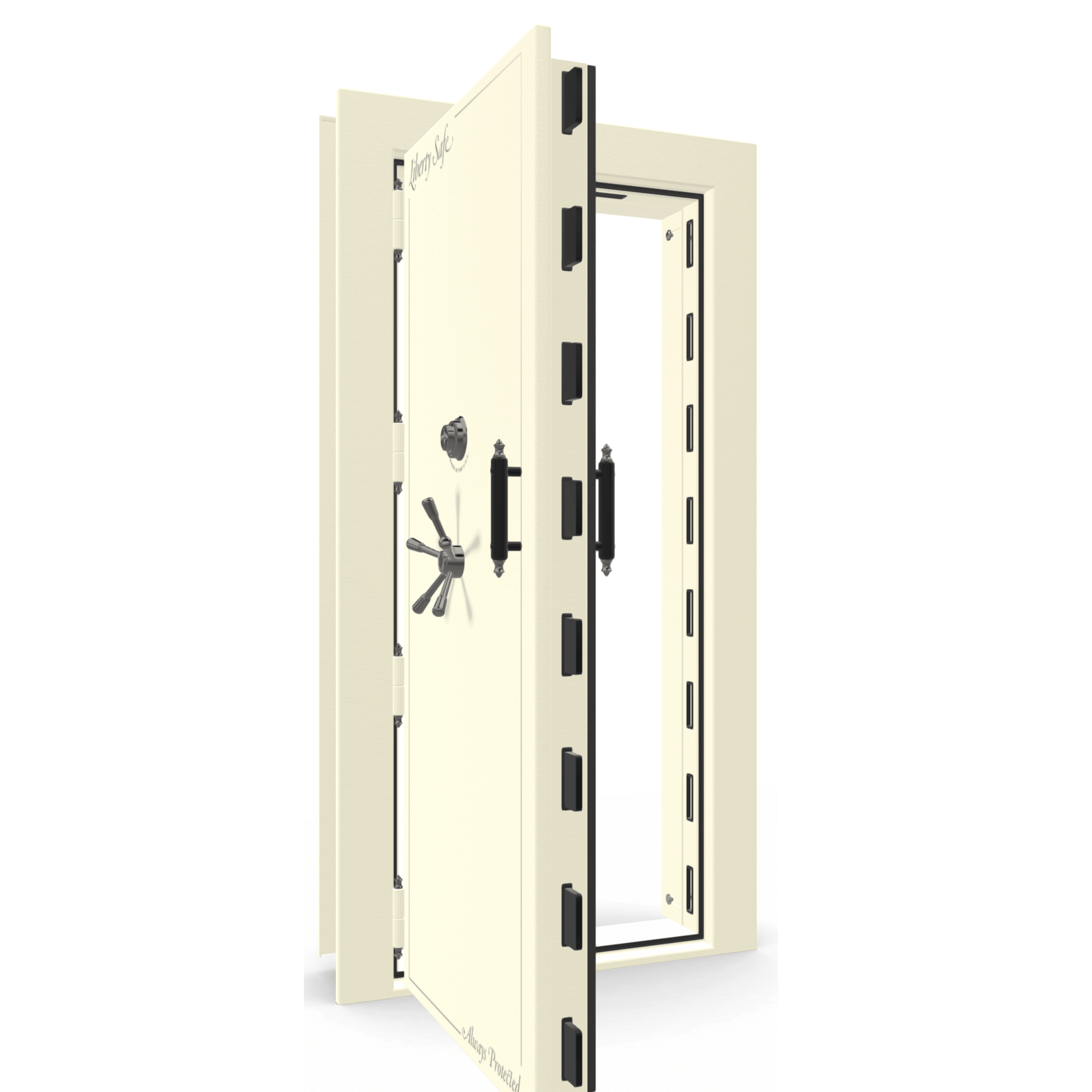

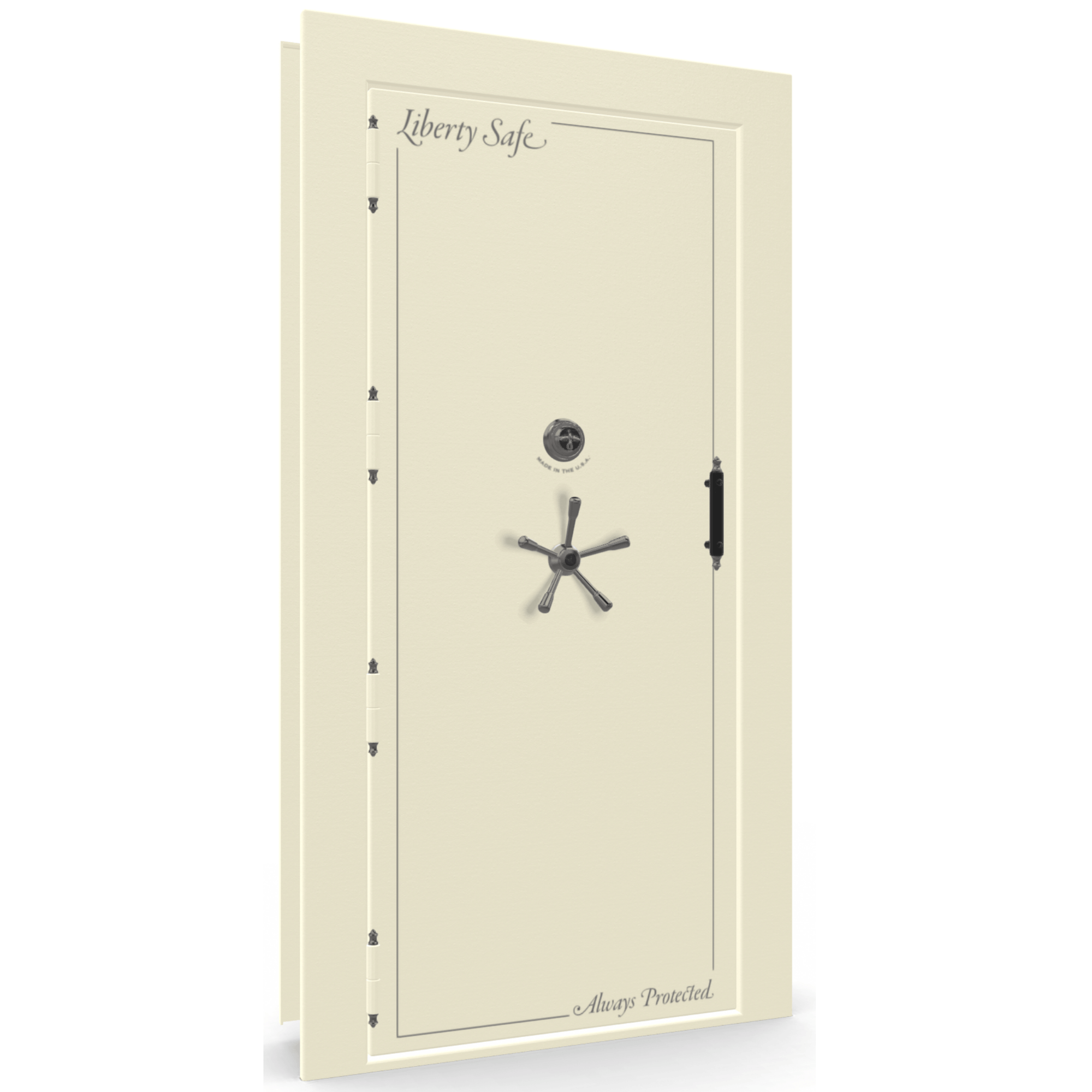

Vault Door Series | Out-Swing | Left Hinge | White Marble | Mechanical Lock

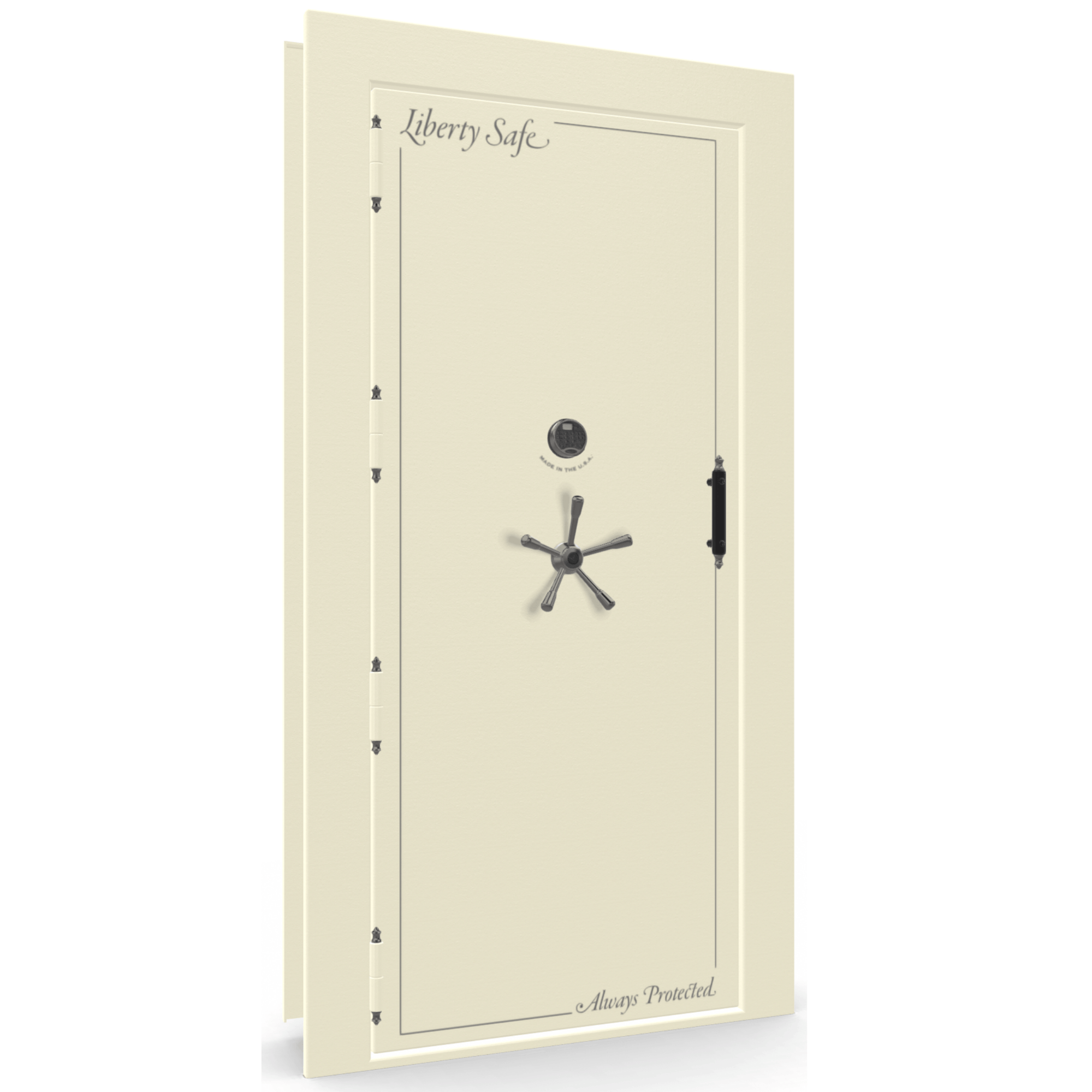

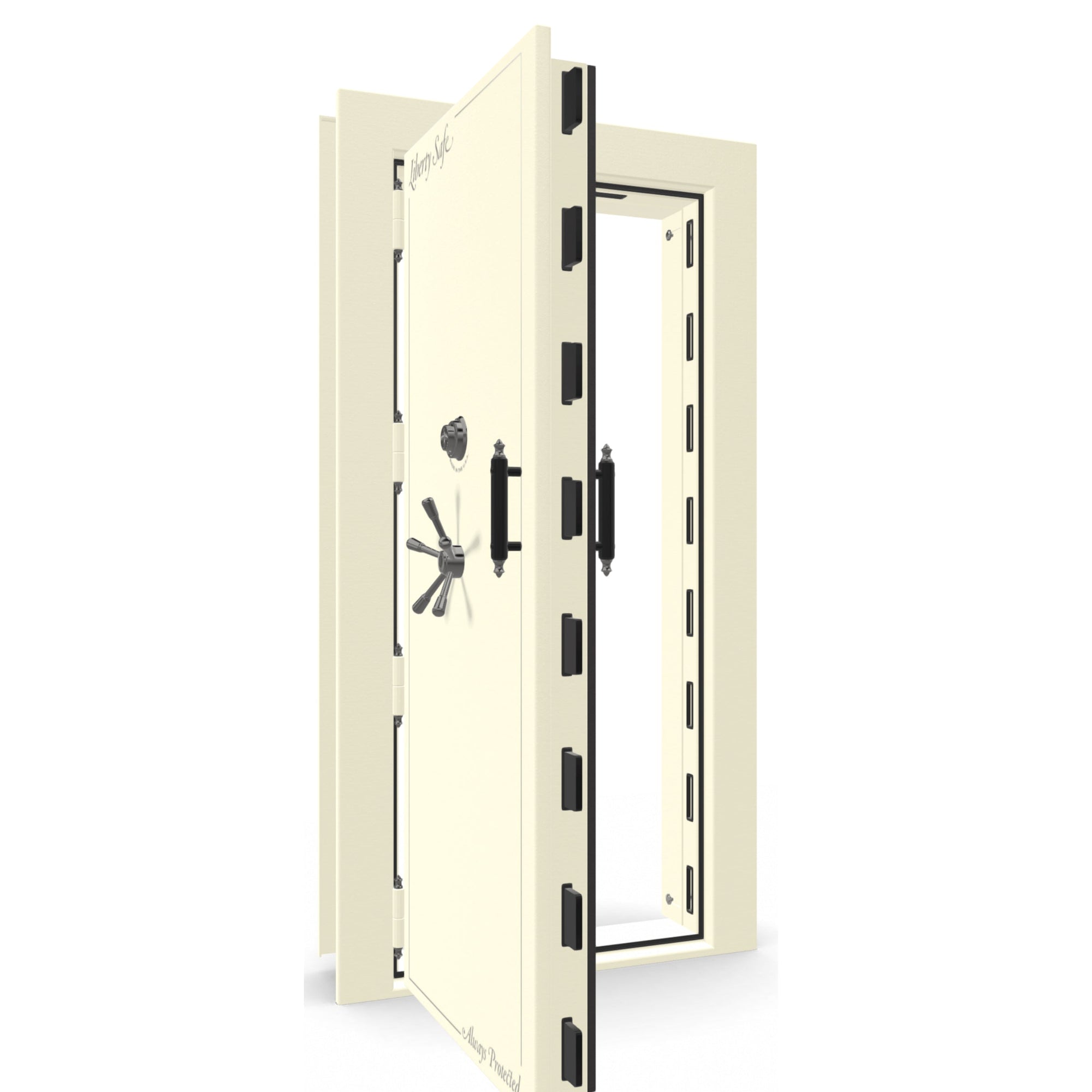

Vault Door Series | Out-Swing | Left Hinge | White Marble | Electronic Lock

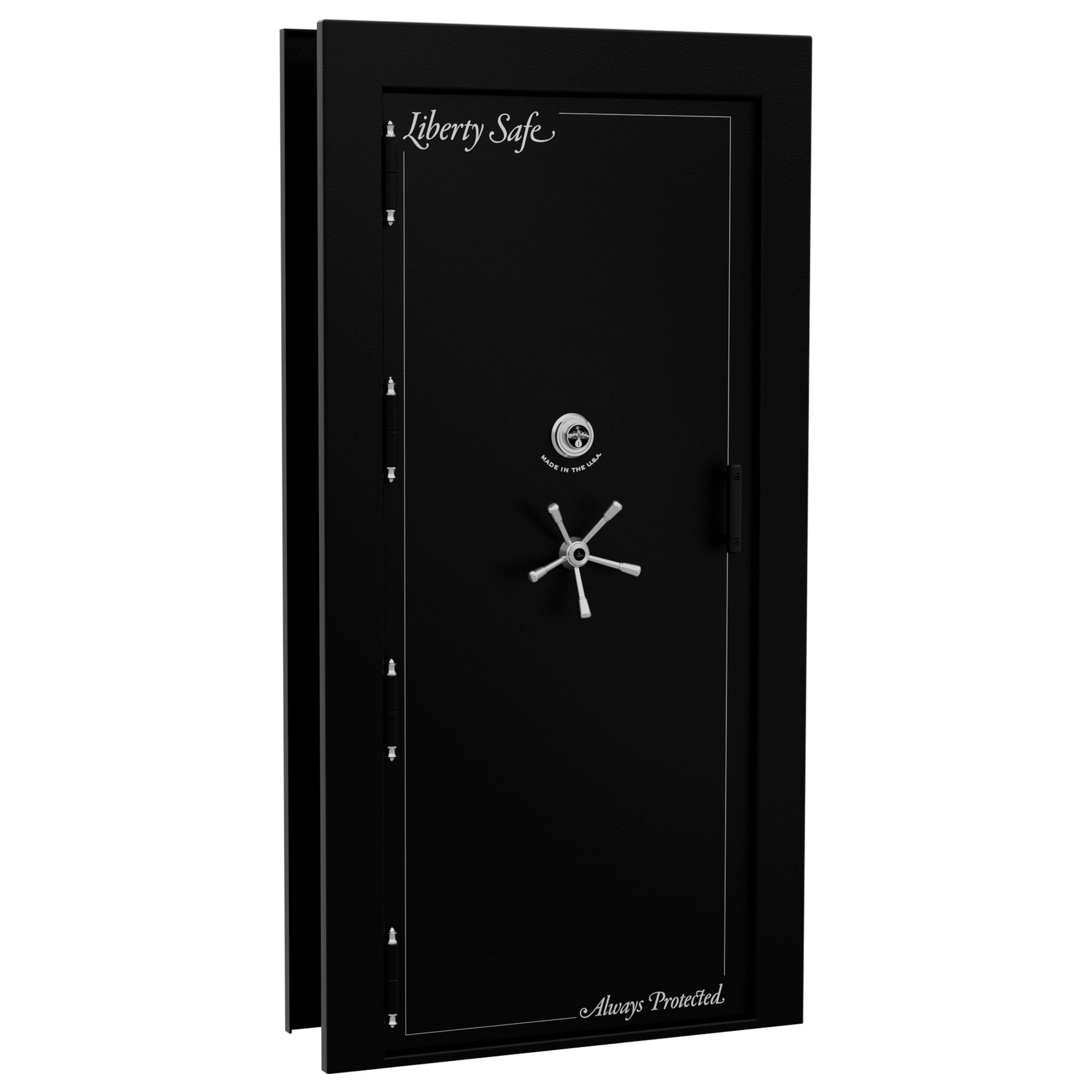

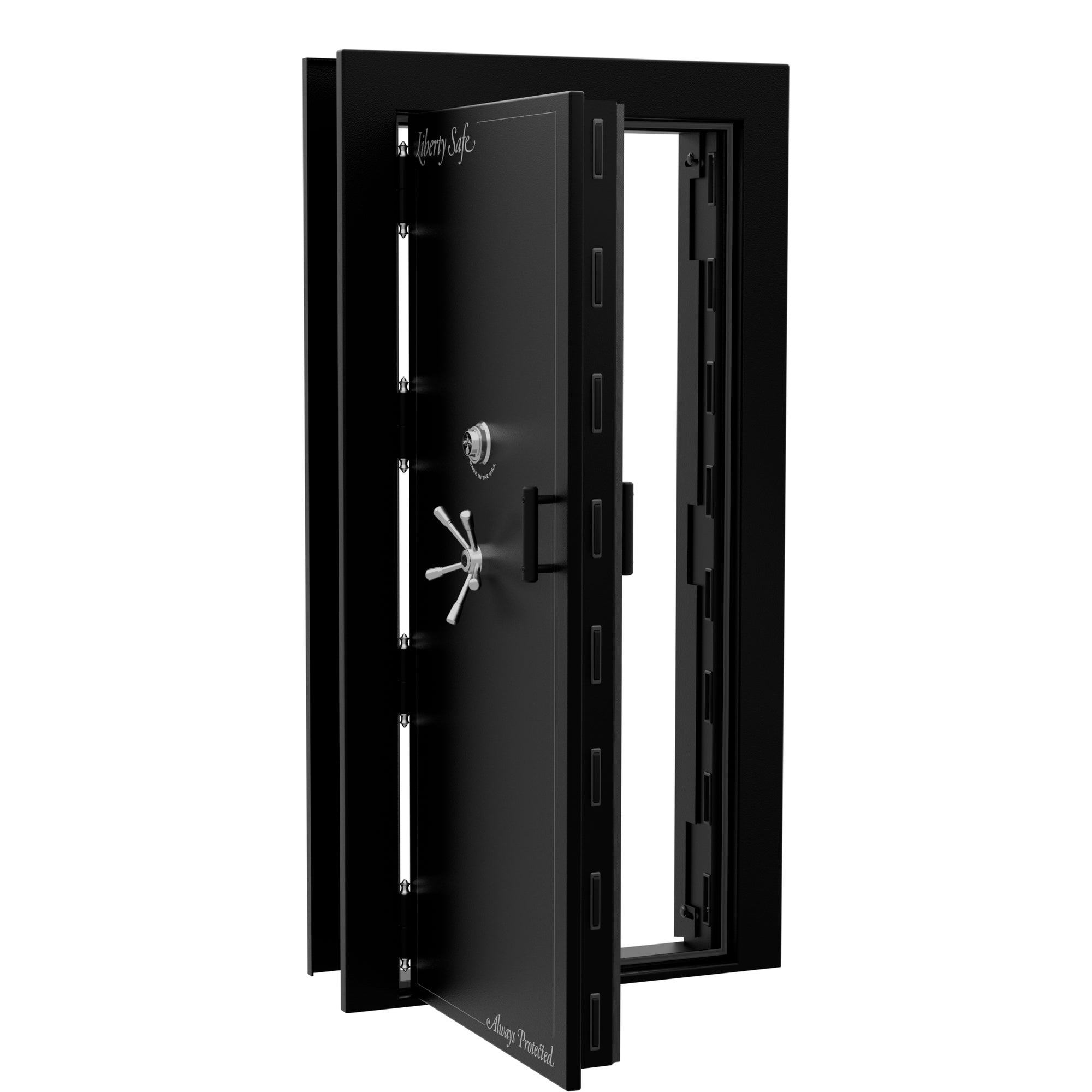

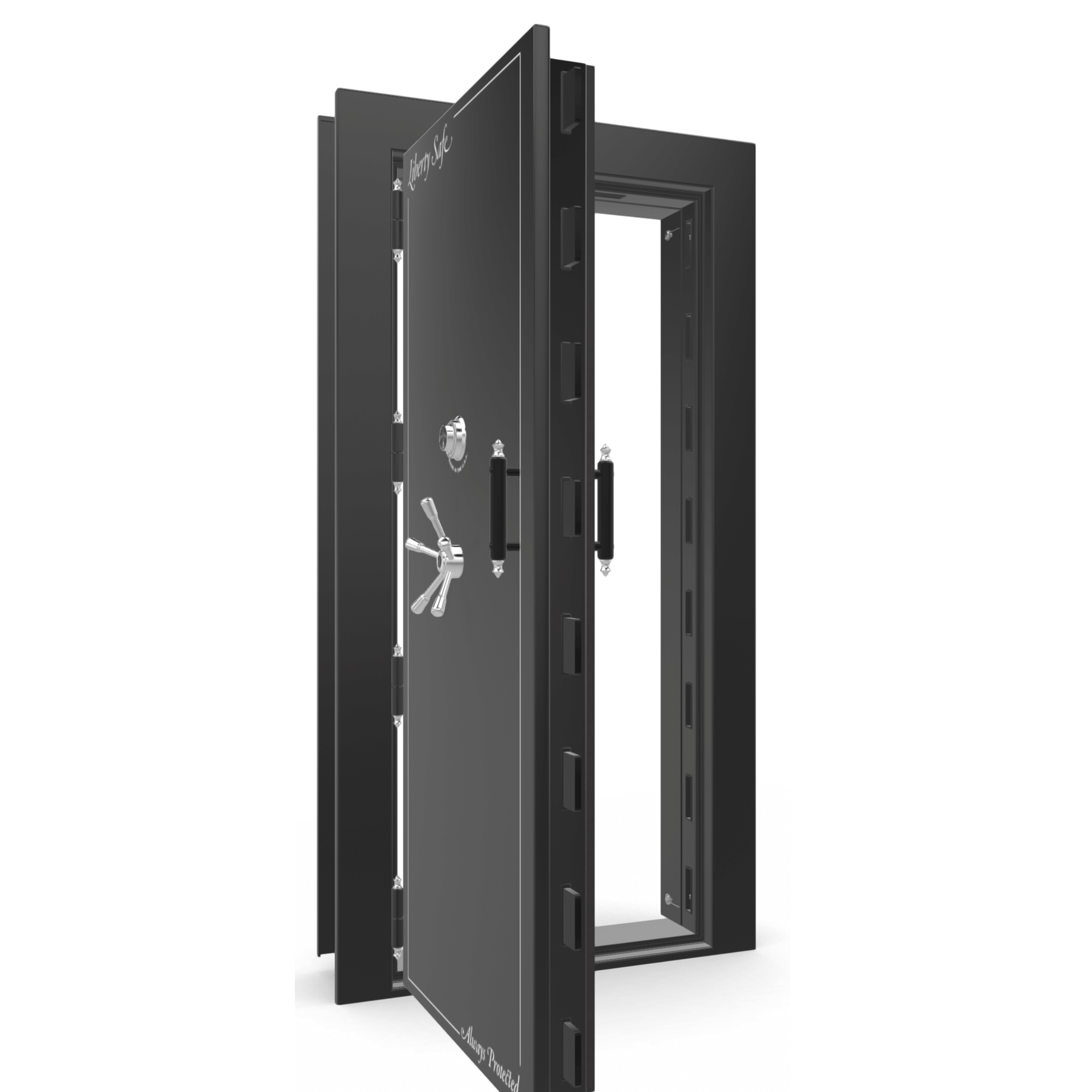

Vault Door Series | Out-Swing | Left Hinge | Black Gloss | Mechanical Lock

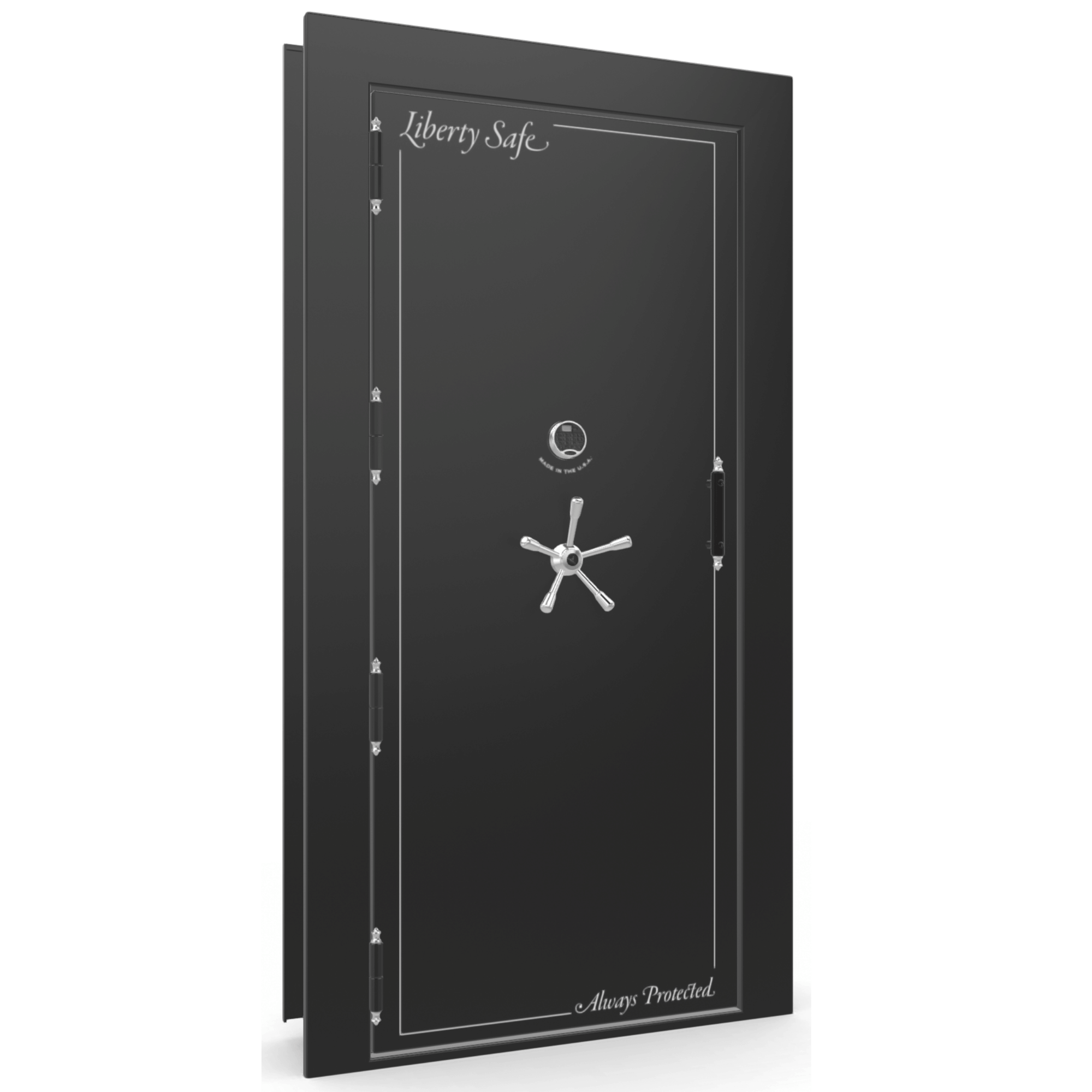

Vault Door Series | Out-Swing | Left Hinge | Black Gloss | Electronic Lock

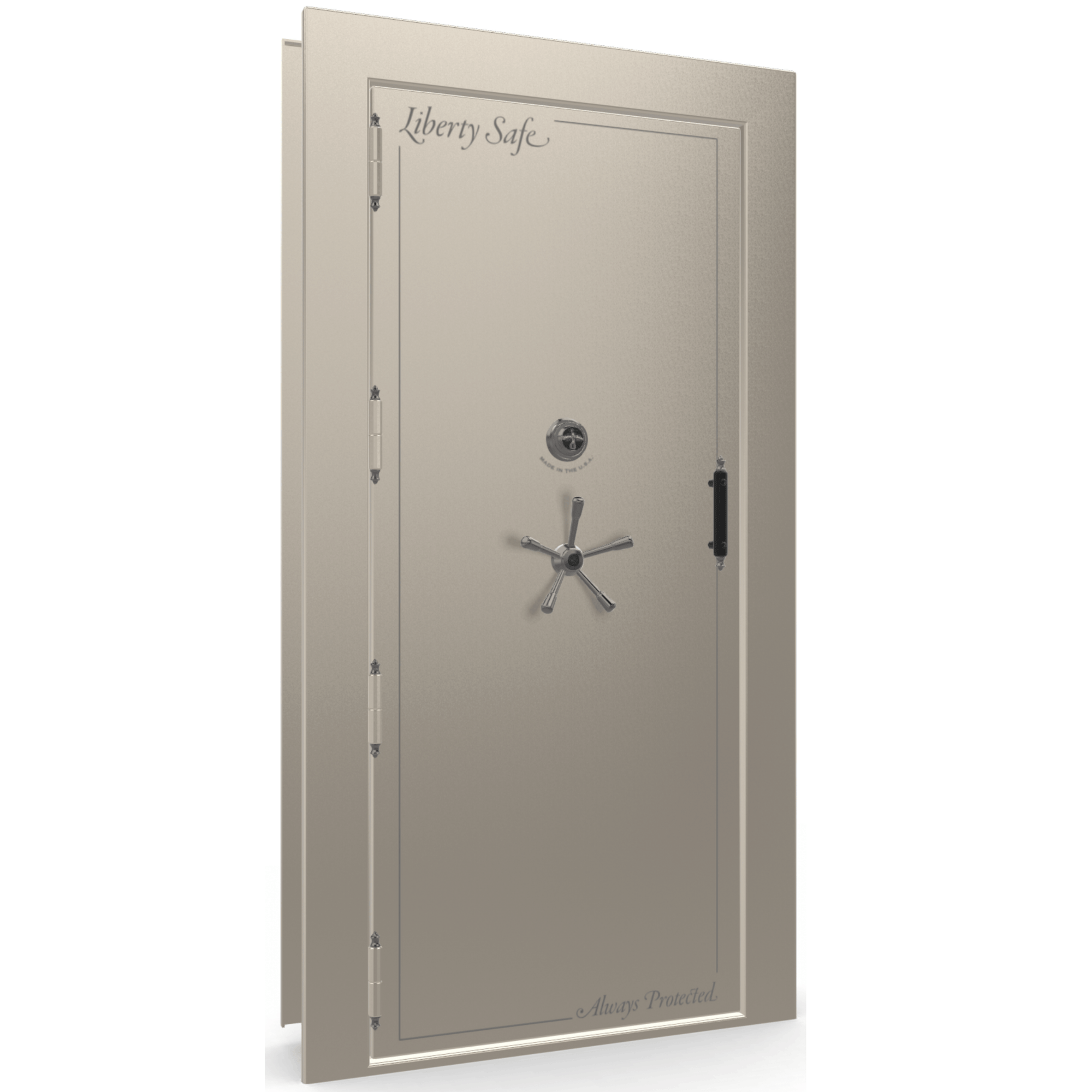

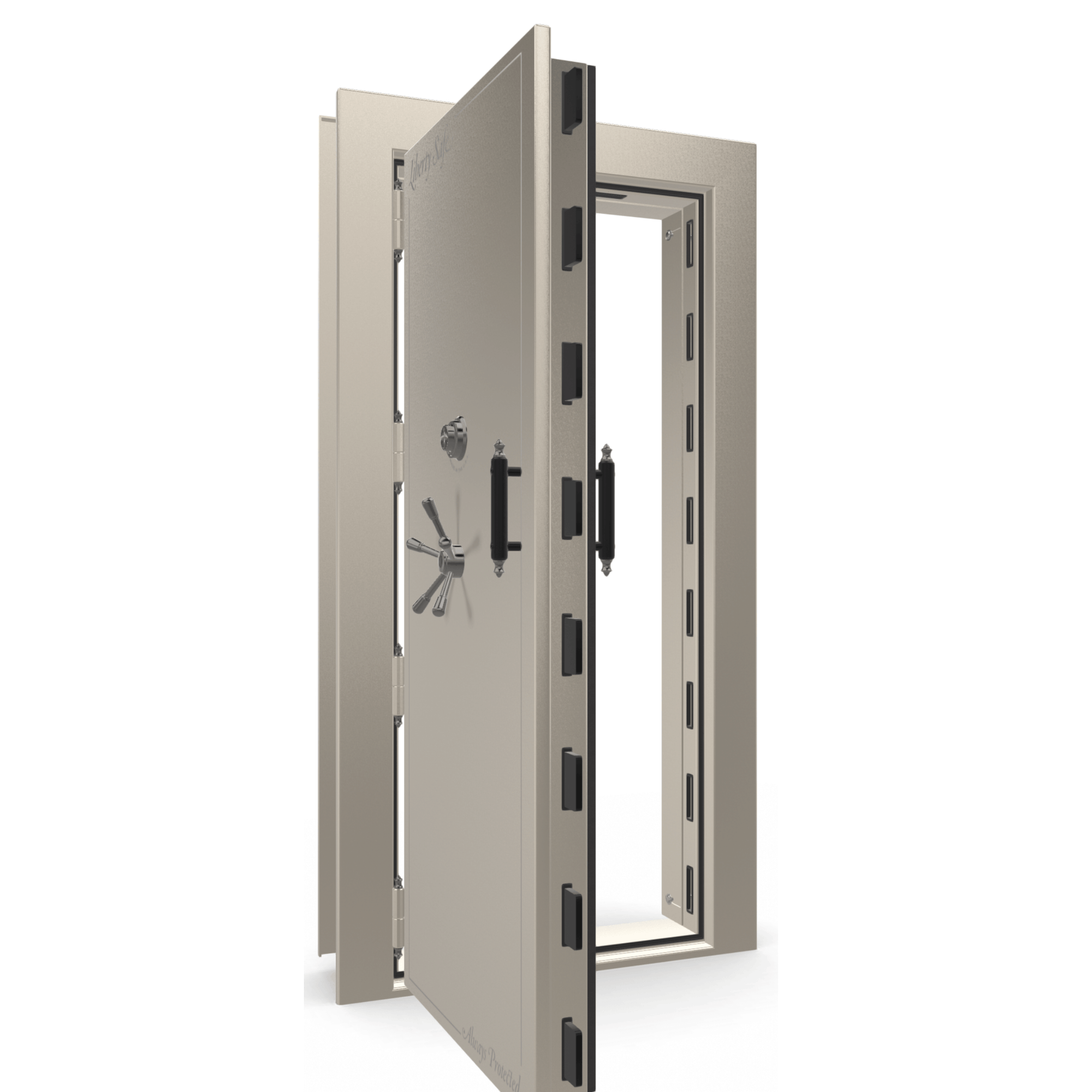

Vault Door Series | Out-Swing | Left Hinge | Champagne Gloss | Mechanical Lock

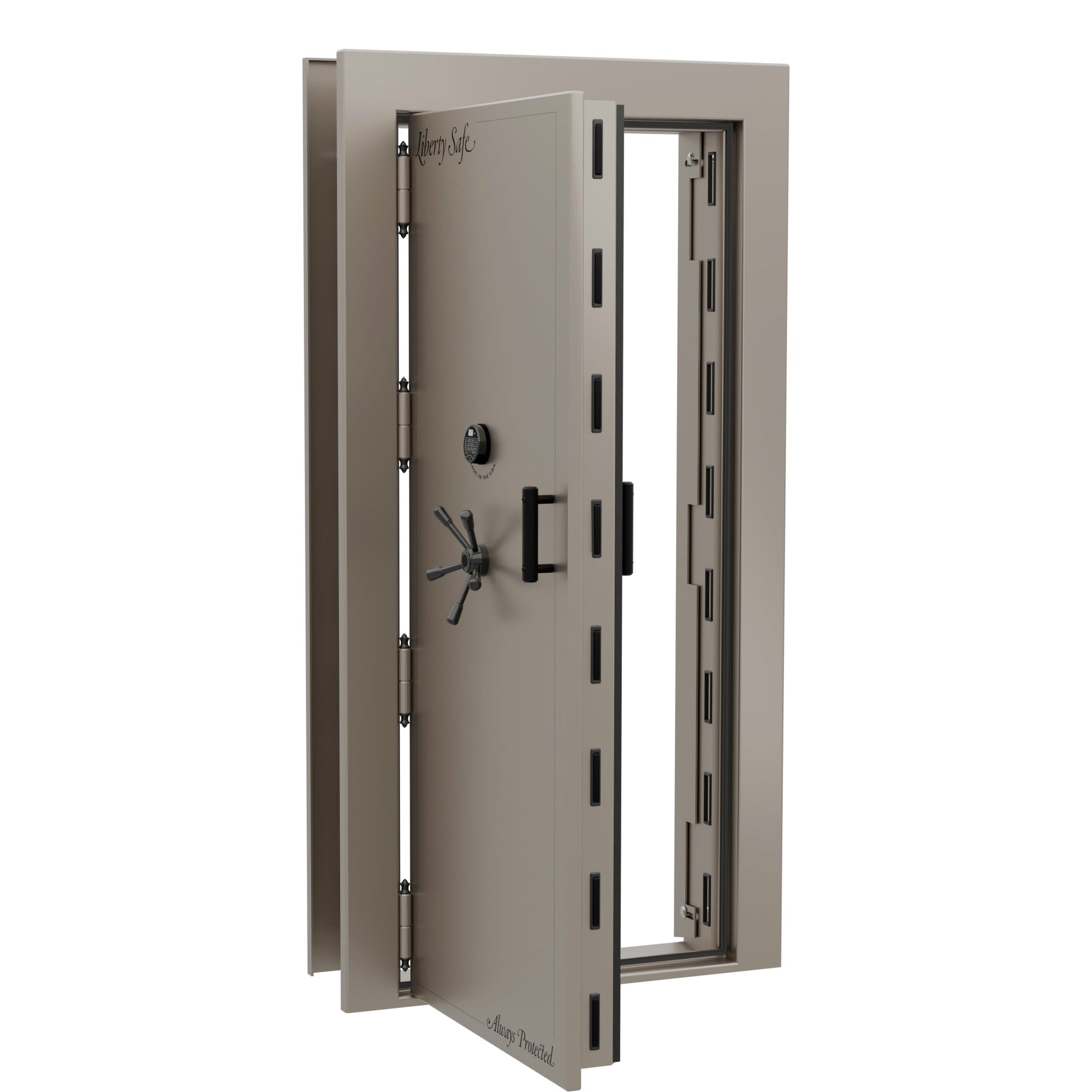

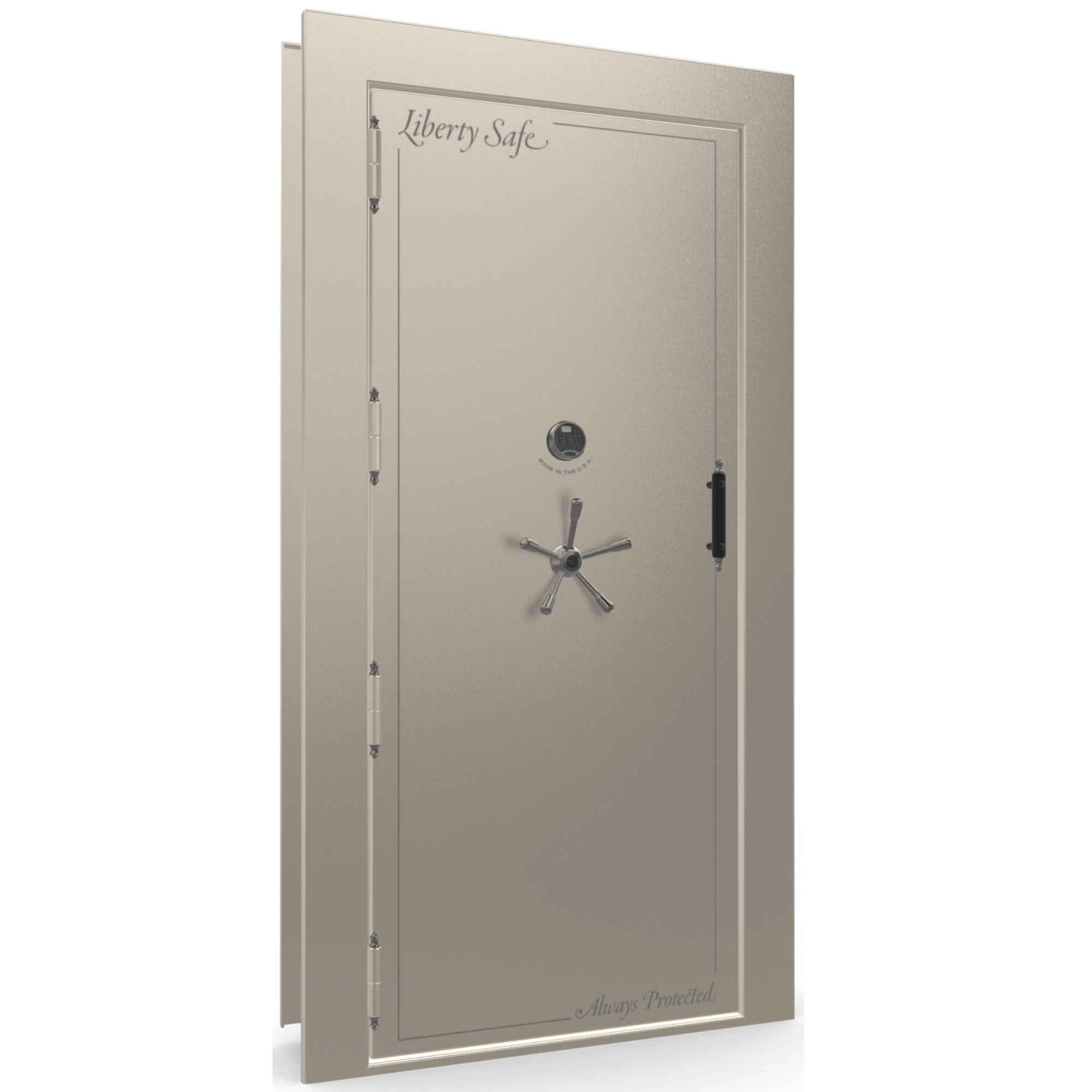

Vault Door Series | Out-Swing | Left Hinge | Champagne Gloss | Electronic Lock

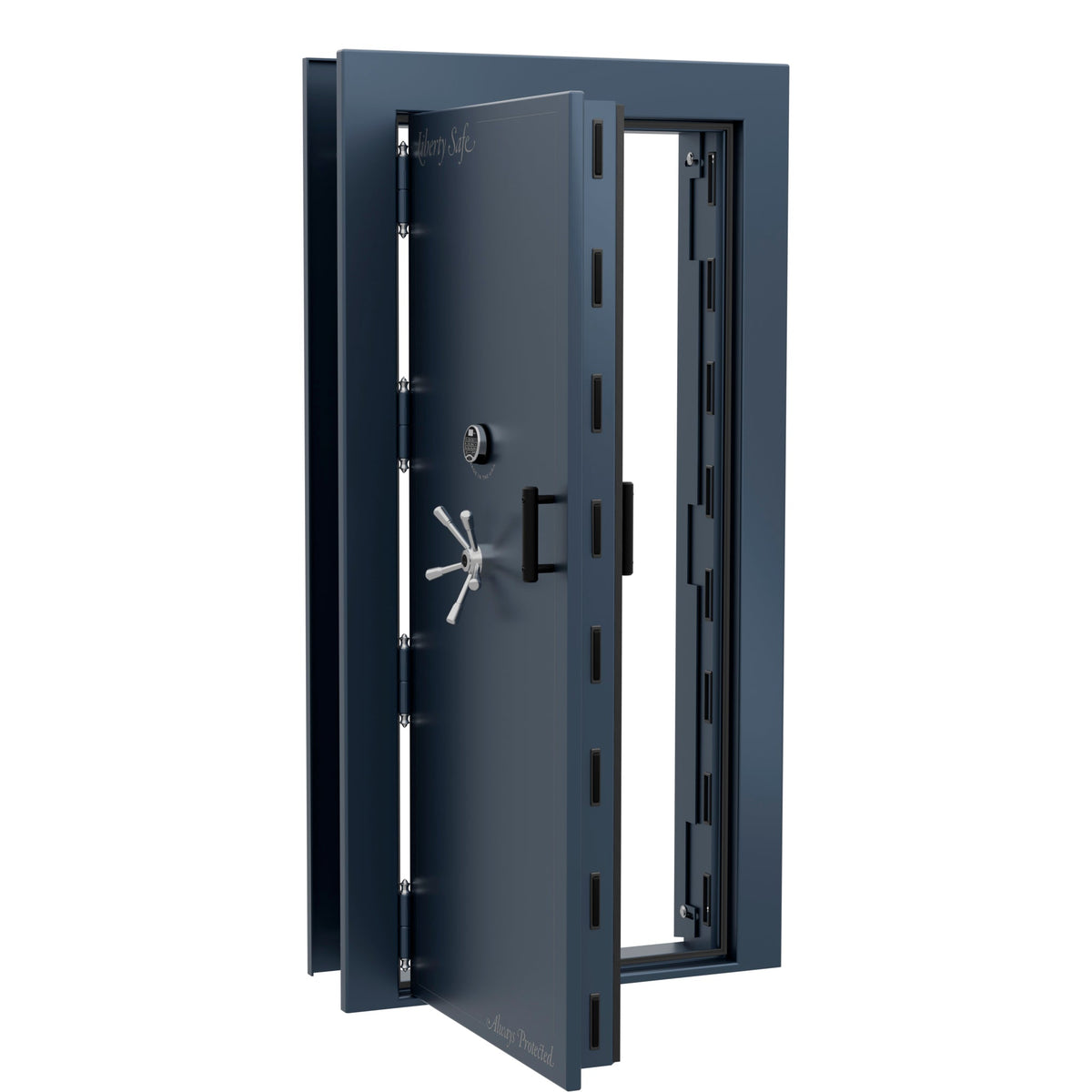

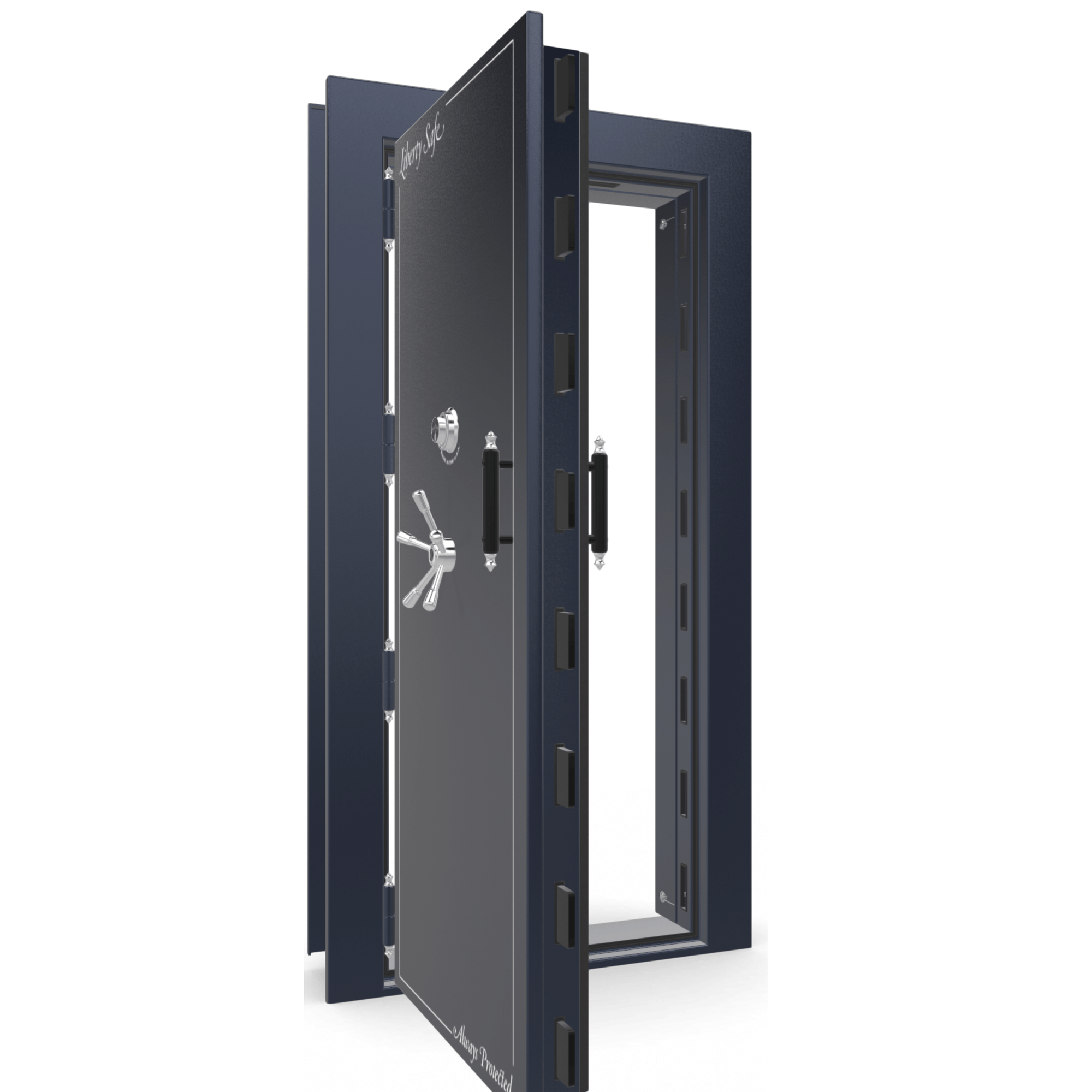

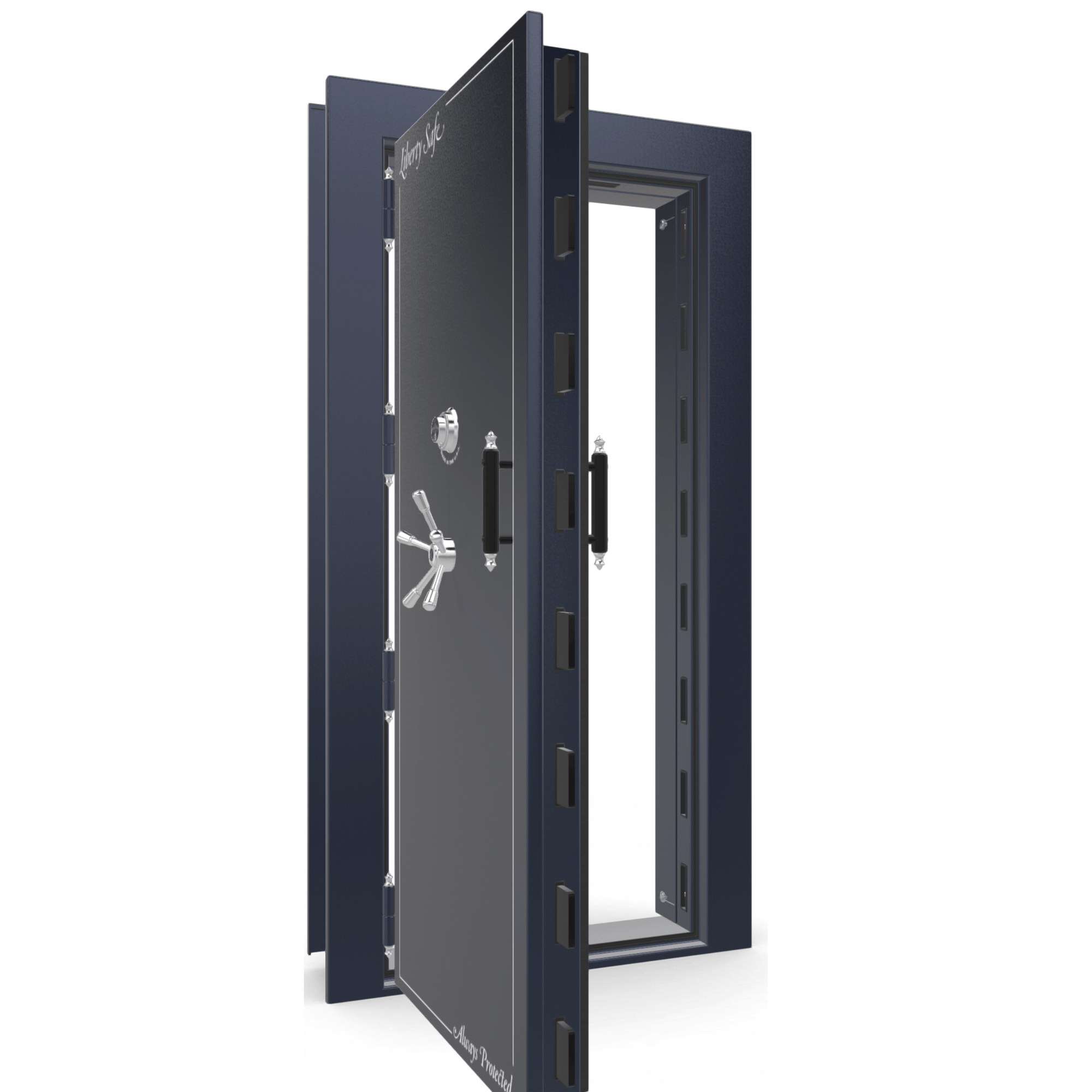

Vault Door Series | Out-Swing | Left Hinge | Blue Gloss | Mechanical Lock

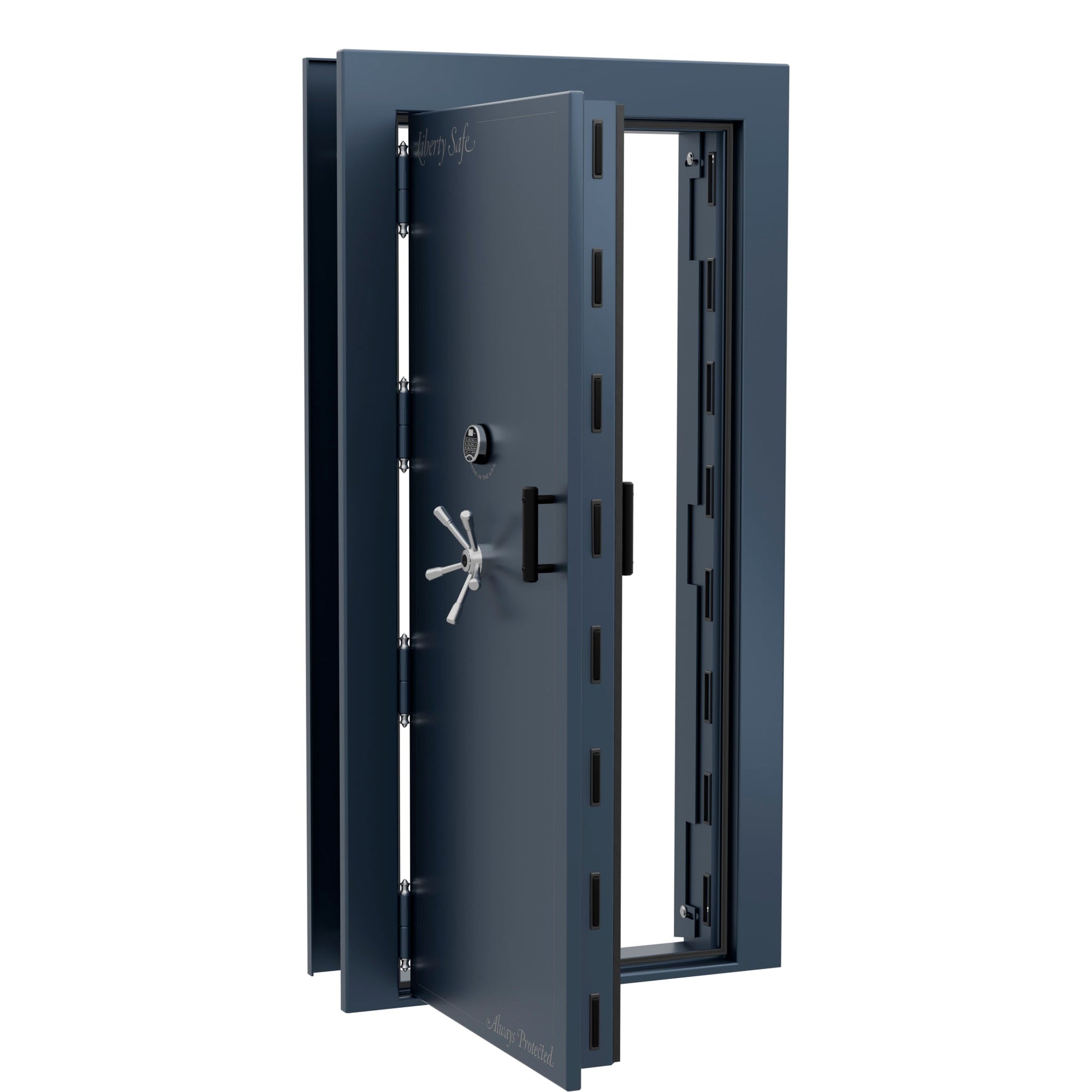

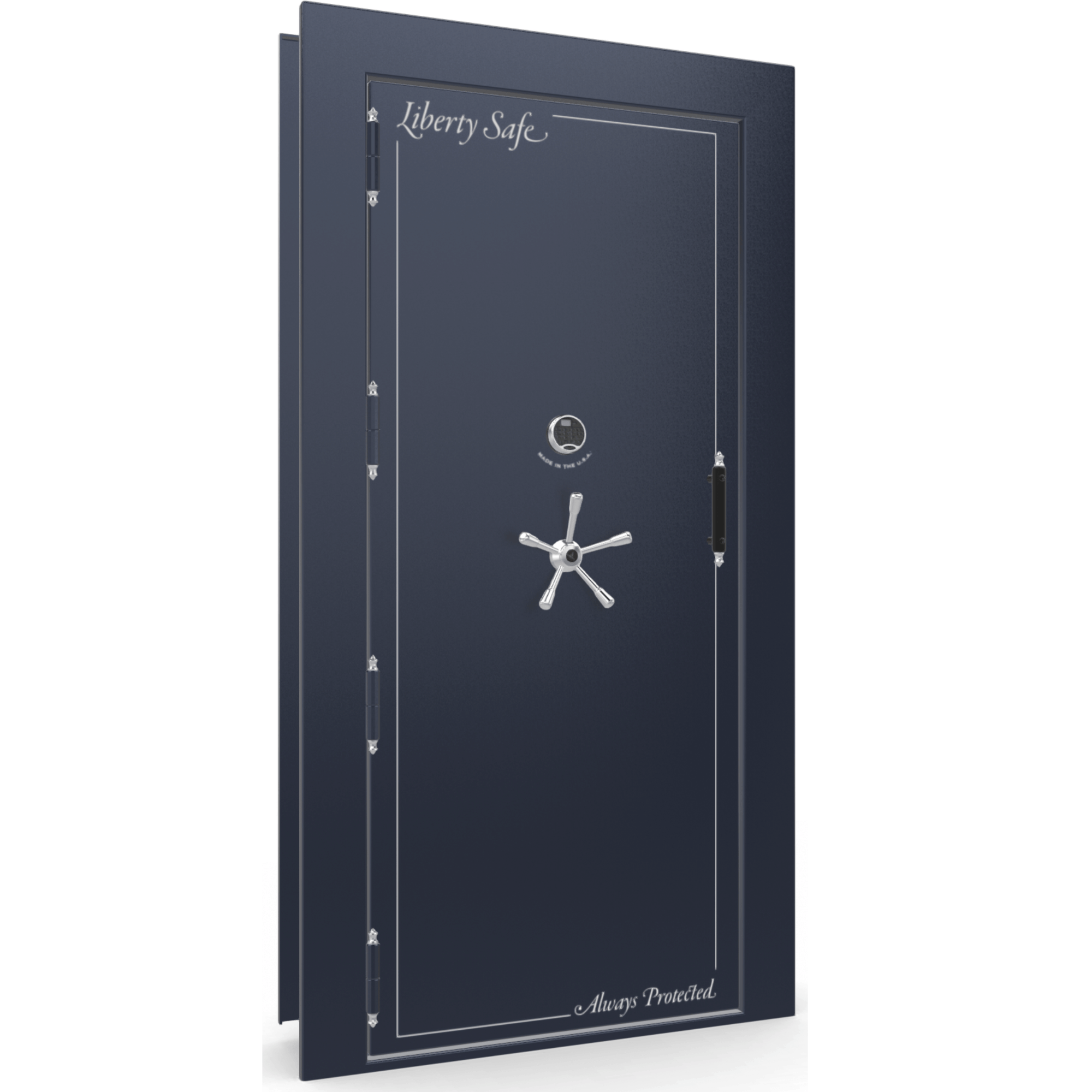

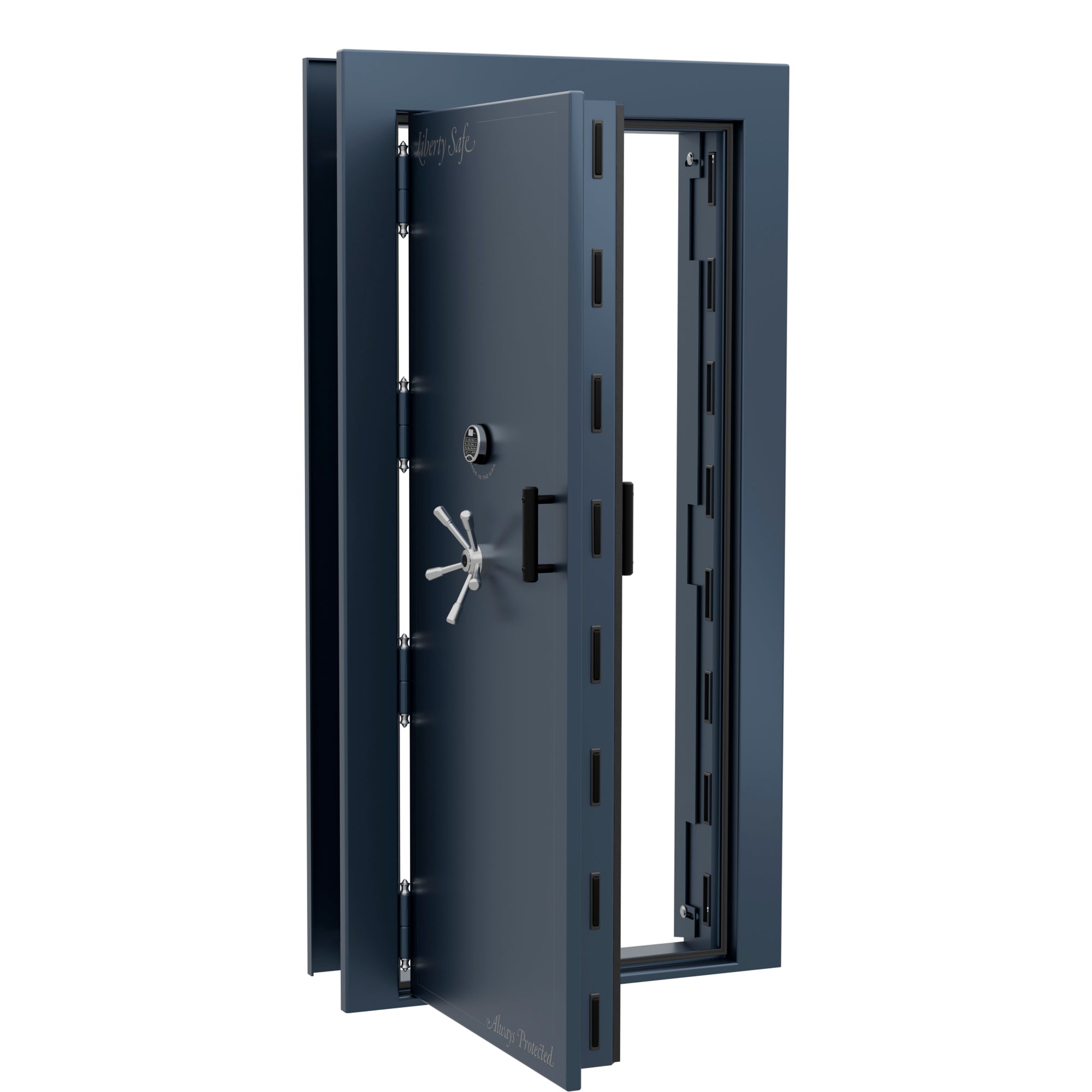

Vault Door Series | Out-Swing | Left Hinge | Blue Gloss | Electronic Lock

Vault Door Series

$8,799.00

The Vault Door combines style with superior theft and fire protection for an elegant look that fits any decor. Massive 4-inch military style locking bars that are 1/2 inch thick will defend against any pry attacks. 2.5 hour fire rated door and heat-expanding Palusol door seal protects from smoke and heat. Vault Door includes both inside release 3-point handle and inside lock lever to lock door from the inside as a panic room. If your plans include a whole room full of items to protect...Liberty's Vault Door will get the job done.

* Please Call for Installation options and pricing.

Color options listed above are our top selling colors. If you would like to buy one of the other color options, please give us a call.

Click to View Vault Door Specs | Drawings

Made in the U.S.A | Lifetime Warranty

	Vault Door	Vault Door	Vault Door Blockade
Model	VAULT DOOR – OUTSWING	VAULT DOOR – INSWING	VAULT DOOR \| BLOCKADE – INSWING
# of Locking Bars	18	18	6
Locking Bar Thickness	1/2"	1/2"	1/4"
Door Dimensions	79” x 34”	77” x 30.5”	78.5” x 29.5”
Walkthrough Clearance	If door is opened 90°, clearance is 27”; if opened 180°, clearance is 32”	Door opens to 90°, giving you a clearance of 26.5”	Door opens to 90°‚ giving you a clearance of 29.5”
Threshold Height	1.875”	1.875”	1.875”
Rough Opening Requirement	81”-85” H x 37”-42” W x 7”-10” D	82.5”-85” H x 39”-42” W x 7”-9” D	For clamshell installation: 82”-85” H x 38”-42” W x 7”-9” D; For bolt-in installation: 82”-85” H x 38”-42” W x 5” or greater D
Hinge Options	Both left-hand swing and right-hand swing available	Both left-hand swing and right-hand swing available	Both left-hand swing and right-hand swing available
Weight	1,245 lbs.	1,245 lbs.	655 lbs.

MEASUREMENTS: Measurements and dimensions are + or - 1/8" to all measurements for manufacturing variances.

Made in the U.S.A. from U.S. and Global Parts.

SECURITY:

VAULT DOOR

UL listed Sargent and Greenleaf mechanical lock (electronic lock also available)
High-end gear-driven door with ¼” steel plate
Heavy-duty steel frame
Internal lockout mechanism for use as a panic room
Upgraded ball-bearing hardplate to protect the lock from drill attacks
Dual relocker locks the door down in the event of attempted brute force entry
Liberty’s exclusive, ultra-strong locking bars protect against pry attacks
Slip-clutch mechanism protects against forced entry

BLOCKADE VAULT DOOR

UL listed SecuRam toplit electronic lock
Solid door with ¼” steel plate
Internal lockout mechanism for use as a panic room
Hardplate to protect the lock from drill attacks
Dual relocker locks the door down in the event of attempted brute force entry
Liberty’s exclusive, ultra-strong locking bars protect against pry attacks
